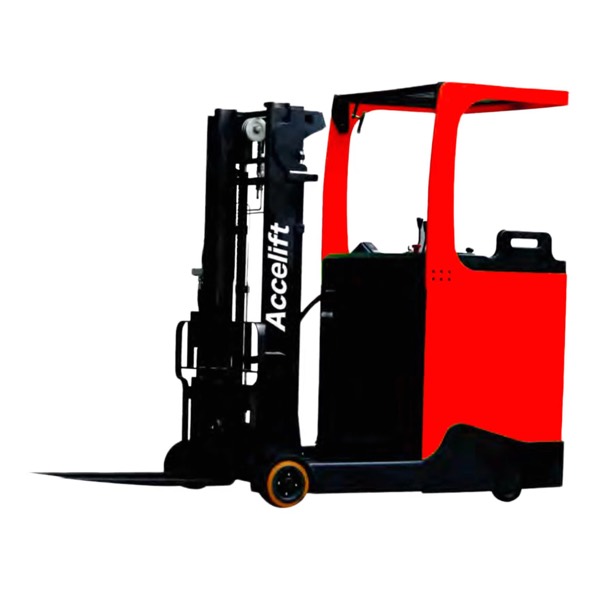

Name: Electric Reach Truck Q15GB
Brand: Accelift

Product Features

♠ Controller has self-diagnostic function, the handheld unit can be displayed after the controller ls coupled to the fault code, and quickly accurately troubleshoot;

♠ The front wheel uses a large wheel design, the vehicle chassis is lifted, the secondary wheel on both sides of the drive wheel provides a safe aid for the chassis, making the vehicle has ability to overcome obstacles, stable and flexible,

♠ The pedal switch can control the operation of the vehicle, and after leave the pedal switch is stepped on, it can operate the vehicle, and vice versa, the vehicle stops running, the design improves the safety of the whole vehicle;

♠ The side of the driving position is equipped with a backrest, and the upper cove ls equipped with a hand cushion for staff to support their hands. these two design greatly improve the driver’s operation comfort;

♠ Integrated high-quality forging forks, set the preceding tilting function, hook design, convenient to adjust the high quality forged fork in one piece equipped with a forward and back tilt function: hook design is convenient to adjust the width to left and right to ensure the accurate slack of the operator.

Technical Data

Section	No.	Parameter	Unit	Q1530GB	Q1545GB	Q1572GB
Characteristics
	1.01	Model		Q1530GB	Q1545GB	Q1572GB
	1.02	Power unit		Electric
	1.03	Operation		Standing on
	1.04	Rated traction weight	Q (kg)	1500
	1.05	Load centre	c (mm)	500
	1.06	Axle centre to fork face	x (mm)	395	314	314
	1.07	Wheel base	y (mm)	1460
	1.08	Service weight with battery	kg	2850	3390	3660
Wheels/Tyres
	2.01	Wheels type		PU
	2.02	Driving wheel size	Φ×w (mm)	Φ343×130
	2.03	Bearing wheel size	Φ×w (mm)	Φ250×120
	2.04	Additional wheels (dimensions)	Φ×w (mm)	Φ178×73
	2.05	Wheels, number front/rear (x = driven)		1, 2/2
	2.06	Track width (drive end)	b10 (mm)	755
	2.07	Track width (load end)	b11 (mm)	1038

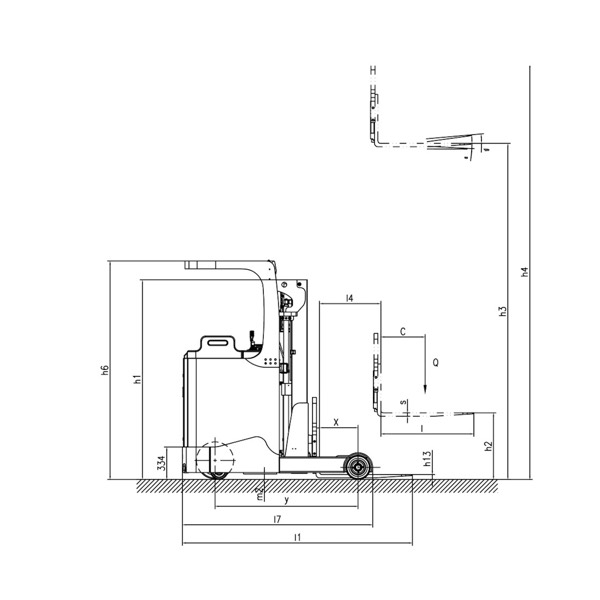

Dimensions
	3.01	Mast/fork carriage tilt, forward/backward	a/b (°)	3/5
	3.02	Height of mast, lowered	h1 (mm)	2044	2165	3065
	3.03	Free lift	h2 (mm)	0	1320	2220
	3.04	Lift	h3 (mm)	3000	4500	7200
	3.05	Height of mast, extended	h4 (mm)	3840	5340	8040
	3.06	Overall height (with handle)	h14 (mm)	2240
	3.07	Fork height, lowered	h13 (mm)	35
	3.08	Overall length	l1 (mm)	2350
	3.09	Length to fork face (fork length)	l2 (mm)	1400
	3.10	Overall width	b1/b2 (mm)	1158/1168
	3.11	Fork dimensions	s/e/l (mm)	35/100/950
	3.12	Width of forks	b5 (mm)	200-775
	3.13	Distance between support arms / loading surfaces	b4 (mm)	808
	3.14	Reach distance	l4 (mm)	570
	3.15	Min. ground clearance	m2 (mm)	56

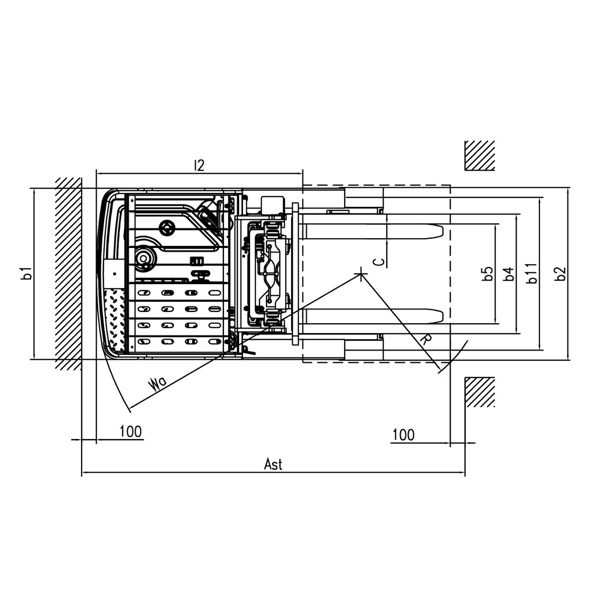

	3.16	Aisle width with pallet 1000×1200 across forks	Ast (mm)	2890	2900	2900
	3.17	Aisle width with pallet 800×1200 along forks	Ast (mm)	2940	2950	2950
	3.18	Min. turning radius	Wa (mm)	1830
	3.19	Length across wheel arms	l7 (mm)	1940
Performance
	4.01	Travel speed, laden/unladen	km/h	8.5/9
	4.02	Lifting speed, with/without load	mm/s	180/330
	4.03	Lowering speed, with/without load	mm/s	220/240
	4.04	Reach speed, laden/unladen	mm/s	120/100
	4.05	Maximum climbing ability, with/without load	%	10/15
	4.06	Service brake		Electromagnetic
Drive
	5.01	Drive motor, 60 minute rating	kW	6
	5.02	Lift motor rating at S3 15%	kW	7.7
	5.03	Battery voltage / rated capacity	V/Ah	48/420
	5.04	Battery weight (±5%)	kg	700
Other
	6.01	Type of drive control		AC
	6.02	Noise level at operator’s ear	dB(A)	≤70
