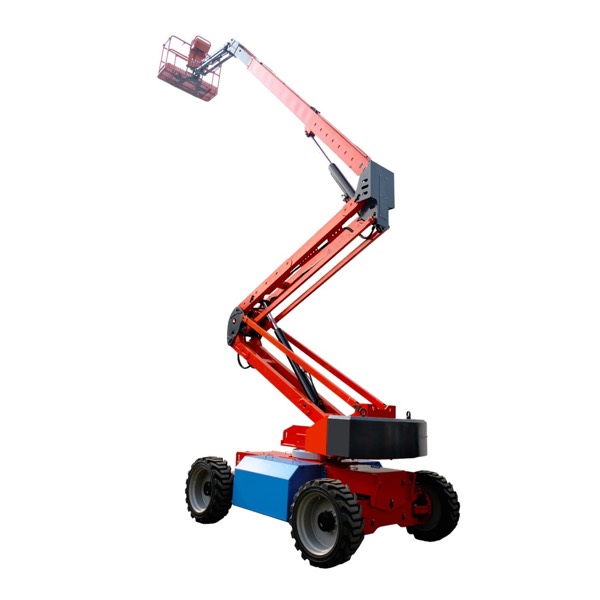

Name: JA18-22JE Self-Propelled Electric Articulating Boom Lift
Brand: Accelift

Self-Propelled Electric Articulating Boom Lift · JA18–22JE Series

JA18JE / JA18JELi / JA20JE / JA20JELi / JA22JE / JA22JELi

JA18–22JE Self-Propelled Electric Articulating Boom Lift

A four-wheel drive articulating boom lift with continuous 360° turntable rotation, a front oscillating axle for uneven terrain, and a self-leveling platform that swings 180° left and right — built to reach up to 23.6m of working height.

20.2-23.6 m

Max working height

250 kg

Max lift capacity

2.5 m

Overall width

3.4 m

Min. turning radius

Dimensions

Dimensions	Unit	JA18JE	JA20JE	JA22JE
Max. working height	m	20.2	22.2	23.6
Max. platform height	m	18.2	20.2	21.6
Max. horizontal reach	m	11.13	12.76	13.95
Overall length (stowed)	m	8.57	9.36	9.96
Overall width	m	2.5
Platform (L × W)	m	1.83×0.76	1.83×0.76	2.44×0.9
Min. turning radius	m	3.4/5.4

Performance

Performance	Unit	JA18JE	JA20JE	JA22JE
Platform occupancy		2
Max. grade ability	%	40
Drive speed (stowed)	km/h	0-4.8
Drive speed (raised)	km/h	0-1.0
Turntable rotation	°	360

Power & weight

Power & Weight	Unit	JA18JE	JA20JE	JA22JE
Battery voltage/capacity (Li)	V/Ah	48/460
Machine weight	kg	8300	9500	11000

Li = lithium-battery variant; same dimensions and performance as the standard model.

Standard items

Four-wheel drive	Two-wheel steering	Proportional joystick controls
Self-leveling platform	180° left and right swing platform	Front oscillating axle
Tilt alarm, flash & horn	Hour meter	360° turntable rotation (continuous)
Positive traction four-wheel drive	Fault diagnosis system	12V DC auxiliary power
Lead-acid battery 8×6V/420Ah	Lithium battery 48V/460Ah	AC feature motor 31VAC/10kW
AC driving motor 32VAC/3.3kW×4	Standard container transport
