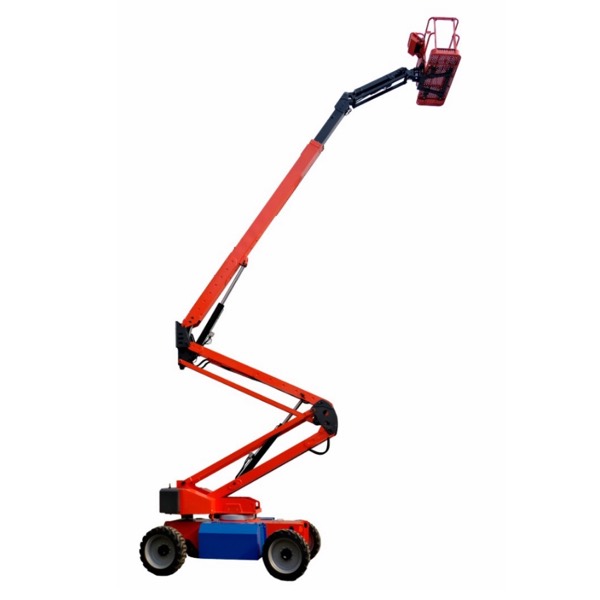

JA14-16JE Self-Propelled Electric Articulating Boom Lift
JA14-16JE Self-Propelled Electric Articulating Boom Lift
- Max working height
- 16–17.7 m
- Max lift capacity
- 230 kg
- Overall width
- 1.8 m
- Min. turning radius
- 3.4 m
Ask for a price, lead time, battery options or the full spec sheet. Factory-direct, OEM branding available.
Description
Self-Propelled Electric Articulating Boom Lift · JA14–16JE Series
JA14JE / JA14JELi / JA16JE / JA16JELi
JA14–16JE Self-Propelled Electric Articulating Boom Lift
An articulating boom lift with a self-leveling platform, 180° left-and-right swing and proportional joystick controls, reaching up to 17.7m of working height. Lithium-battery variants share the same dimensions and performance as the standard lead-acid models.
|
16-17.7 m
Max working height
|
230 kg
Max lift capacity
|
1.8 m
Overall width
|
3.4 m
Min. turning radius
|
Dimensions
| Dimensions | Unit | JA14JE | JA16JE |
| Max. working height | m | 16 | 17.7 |
| Max. platform height | m | 14 | 15.7 |
| Max. horizontal reach | m | 7.75 | 9.47 |
| Overall length (stowed) | m | 6.2 | 7.1 |
| Overall width | m | 1.8 | |
| Platform (L × W) | m | 1.52×0.76 | |
| Min. turning radius | m | 3.4/5.4 | |
Performance
| Performance | Unit | JA14JE | JA16JE |
| Platform occupancy | 2 | ||
| Max. grade ability | % | 30 | |
| Drive speed (stowed) | km/h | 0-5 | |
| Drive speed (raised) | km/h | 0-1 | |
| Turntable rotation | ° | 355 | |
Power & weight
| Power & Weight | Unit | JA14JE | JA16JE |
| Battery voltage/capacity (Li) | V/Ah | 48/320 | |
| Machine weight | kg | 7100 | 8100 |
Li = lithium-battery variant; same dimensions and performance as the standard model.
Standard items
| Two-wheel drive | Tilt alarm, flash & horn | Standard container transport |
| Two-wheel steering | Hour meter | Lead-acid battery 8×6V/320Ah |
| Proportional joystick controls | Positive traction four-wheel drive | Lithium battery 48V/320Ah |
| Self-leveling platform | Fault diagnosis system | AC feature motor 32VAC/7.4kW |
| 180° left and right swing platform | 12V DC auxiliary power | AC driving motor 2×32VAC/3.3kW |
| 360° continuous rotation (optional) |
