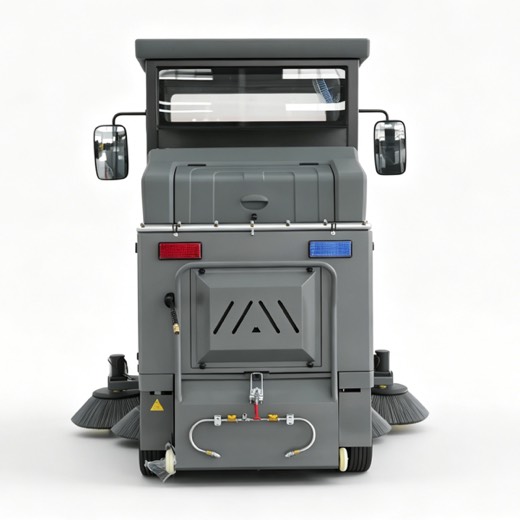

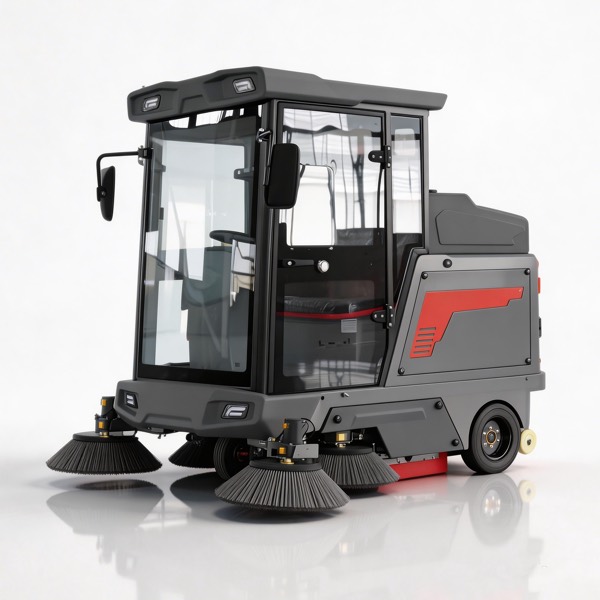

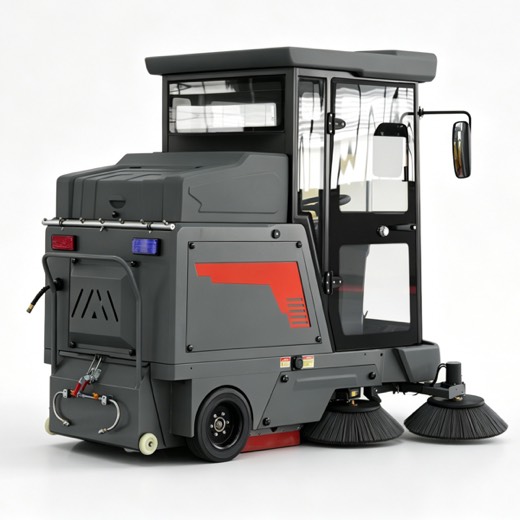

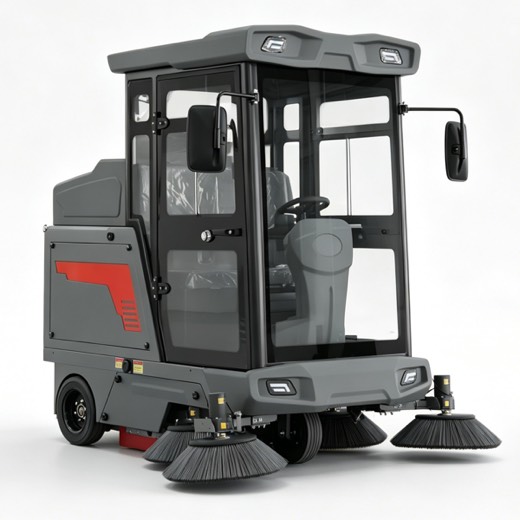

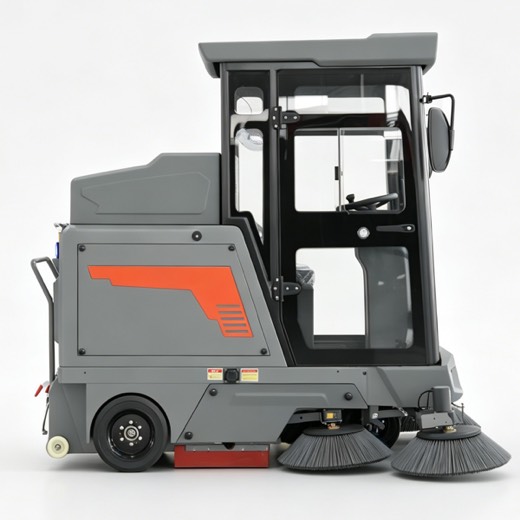

JCD-1900

Enclosed-Cab Sweeper

The JCD-1900 puts the operator in a fully enclosed cab: 1,980mm of sweeping width, a 240 litre hopper and 150 litres of water, driven by a 1,500W traction motor. Twin fans and four side brushes hold 15,000 m²/h through a full eight-hour shift.

1980 mm

Sweep width

15000 m²/h

Work efficiency

240 L

Dustbin capacity

5-8 h

Continuous working

Key features

01	Enclosed cab. Glazed cab with lighting, wipers and climate control.
02	Four side brushes. Widens the swept path and reaches both kerbs at once.
03	240 litre hopper. Hydraulic dump empties directly into a skip.

Main technical parameters

Parameter	Value	Parameter	Value
Product model	JCD-1900	Dustbin capacity	240 L
Sweep width	1980 mm	Water tank	150 L
Work efficiency, 3 brush	15000 m²/h	Driving power	1500W
Master brush length	700 mm	Operating power	Main 800W, fan 310W×2, side 100W×4, spray 100W×2
Power source	48V/103Ah or 150Ah	Continuous working time	5-8 h
Size	2300×1900×1950 mm	Net weight	700 kg

Where it works

Municipal roads, industrial estates, container yards and university campuses. The cab makes winter and summer shifts workable, and the machine still turns on the spot for gatehouses and narrow service roads.

Applicable ground: Asphalt ground · Concrete floor
