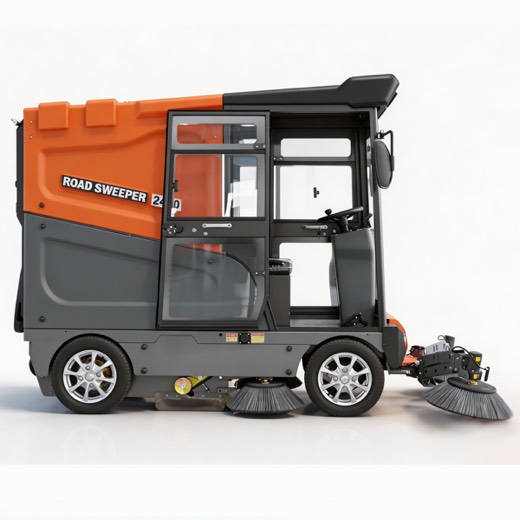

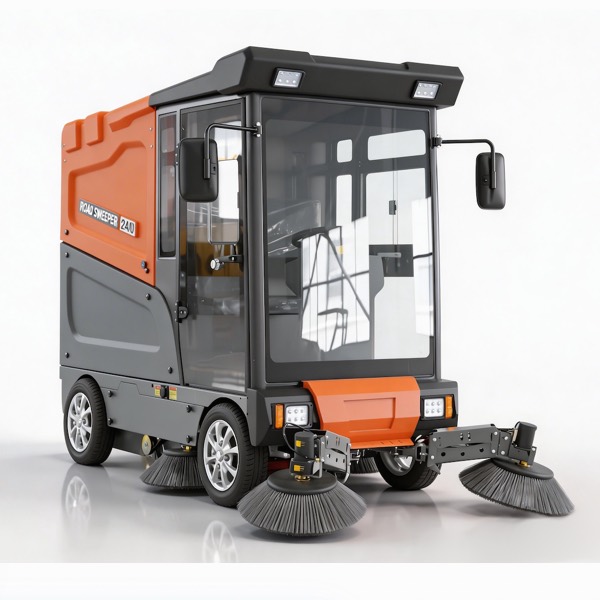

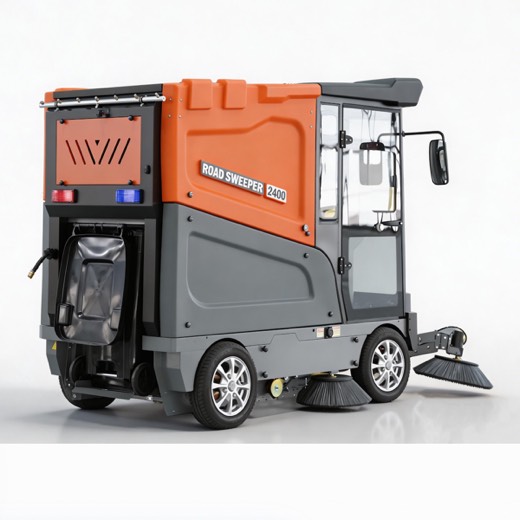

JCG-2400

Enclosed-Cab Sweeper

The largest machine in the range: two 1,200W main brushes, four side brushes, a 16m² filter area and a hopper of 240 litres, clearing more than 19,000 m²/h. It works at 11km/h, travels at 16km/h between sites, and climbs gradients of up to 30%.

>2100 mm

Sweep width

>19000 m²/h

Work efficiency

240 L

Dustbin capacity

16 km/h

Travelling speed

Key features

01	Twin main brushes. 1,200W each, for continuous heavy-duty sweeping.
02	16m² filter area. Keeps fine dust in the machine rather than in the air.
03	Road-capable. 16km/h travelling speed and 200mm ground clearance.

Main technical parameters

Parameter	Value	Parameter	Value
Product model	JCG-2400	Dustbin capacity	240 L
Sweep width	>2100 mm	Water tank	200 L, optional
Work efficiency, 3 brush	>19000 m²/h	Edge brush diameter	500 mm, optional
Master brush length	800 mm	Driving power	2500 W, optional
Power source	48V	Operating power	Main 1200W×2, fan 310W×2, side 100W×4, spray 100W×2
Continuous working time	6-8 h	Maximum travelling speed	16 km/h
Size	2500×1500×1900 mm	Net weight	1080 kg

Where it works

Highways and access roads, ports, airfields, mining and steel sites, and large municipal contracts. Built for long shifts on abrasive surfaces, with filtration and cab sealing that keep the operator out of the dust.

Applicable ground: Asphalt ground · Concrete floor
