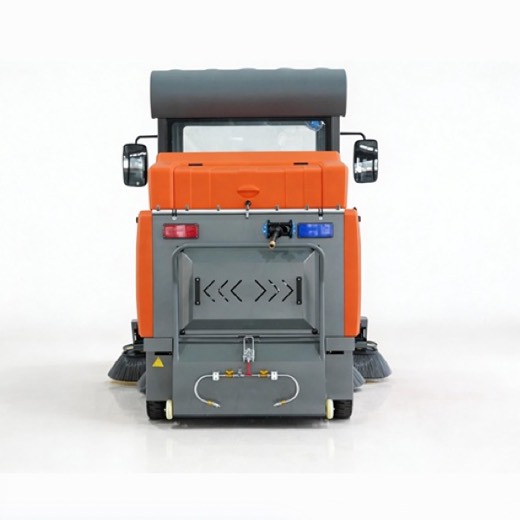

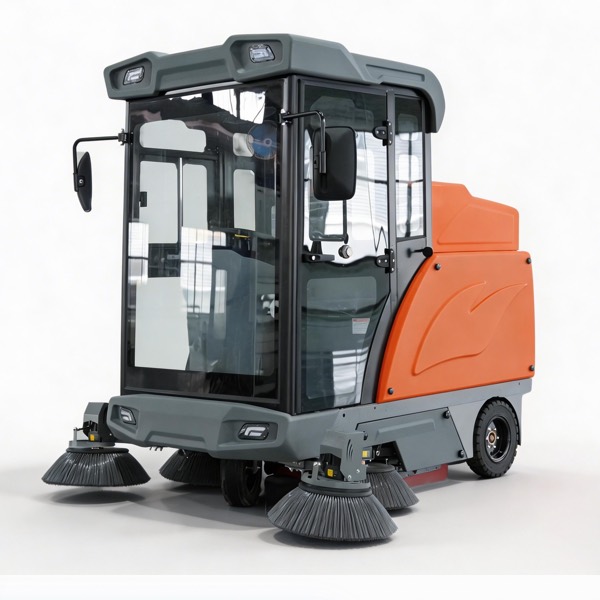

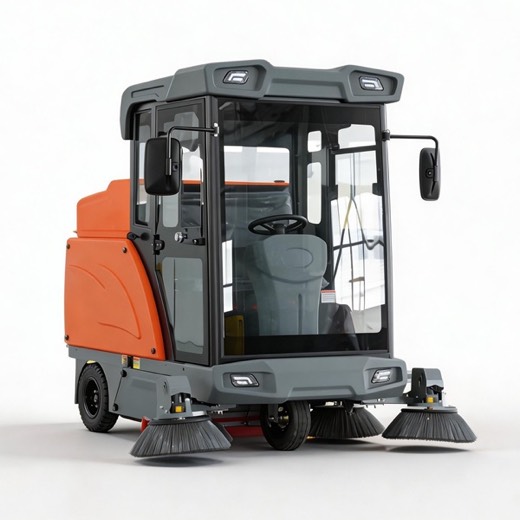

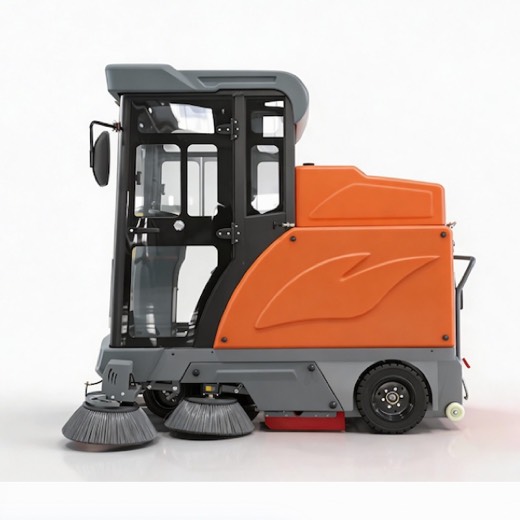

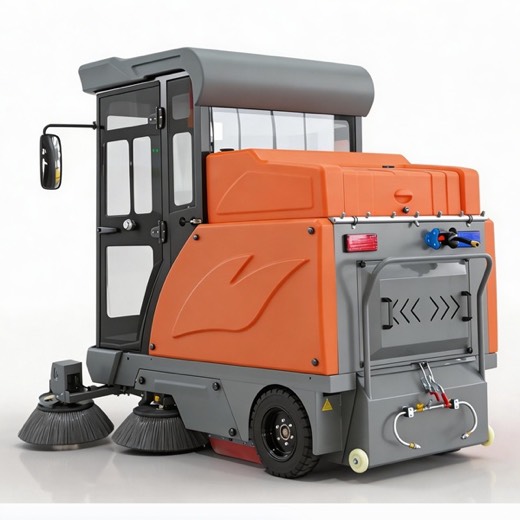

JCD-2100

Enclosed-Cab Sweeper

A 2,100mm sweeping width on an 1,800W drive, with a 240 litre hopper, a 200 litre water tank and a battery choice up to 203Ah. An optional 1,500W high-pressure pump adds washing at 130kg nozzle pressure, so one machine both sweeps and rinses.

2100 mm

Sweep width

15000 m²/h

Work efficiency

240 L

Dustbin capacity

5-8 h

Continuous working

Key features

01	Sweep and wash. Optional 1,500W pump and lance for stained paving and kerbs.
02	1,000W main brush. Holds pressure on compacted dirt at working speed.
03	Up to 203Ah. Battery sized to the route rather than the other way round.

Main technical parameters

Parameter	Value	Parameter	Value
Product model	JCD-2100	Dustbin capacity	240 L
Sweep width	2100 mm	Water tank	200 L
Work efficiency, 3 brush	15000 m²/h	Driving power	1800W
Master brush length	800 mm	Operating power	Main 1000W, fan 310W×2, side 100W×4, spray 100W×2
Power source	48V/103, 153 or 203Ah	Continuous working time	5-8 h
Size	2300×2000×1950 mm	Net weight	800 kg

Where it works

City streets, market squares, food and chemical plants, and any site where sweeping alone leaves a stain. Sweeps dry, then washes the same pass; the hopper and water tank are sized for a shift between service points.

Applicable ground: Paving · Concrete floor
