CL1525GC / CL1530GC / CL1536GC / CL2025GC / CL2030GC / CL2036GC

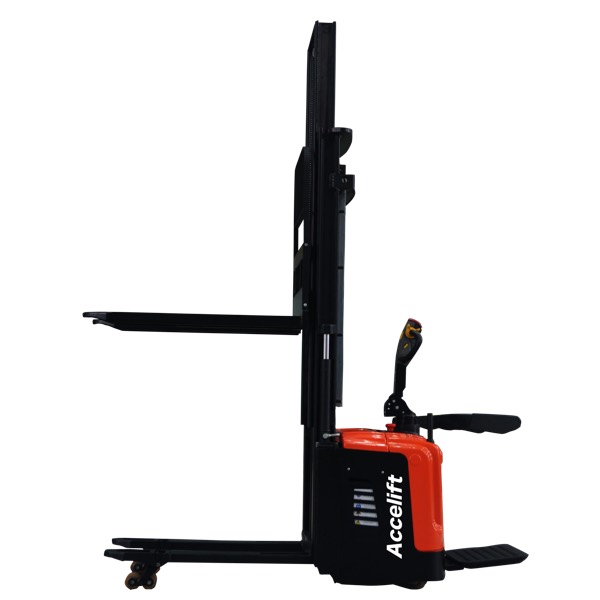

Electric Double-Lifting Stacker (Standing On)

A standing-on double-lifting stacker with an advanced vertical AC drive system, standard power steering, and lifting legs that better overcome ramps and uneven ground than an ordinary stacker.

1500-2000 kg

Rated capacity

2530-3630 mm

Lift height

1710 mm

Turning radius

≤70 dB(A)

Noise level

Key features

01	An advanced vertical AC drive system gives the motor more energy and greater braking torque, for more powerful, efficient and accelerated performance.
02	The whole series comes with a standard power steering system, so assisted power is responsive and the handle is easy to operate.
03	A double-lifting design can carry two pallets at the same time, while still offering full stacker functionality.
04	A pressurized cylinder delivers fast speed and large output at low energy consumption, preventing slipping during heavy loading.
05	Lifting legs let it better overcome ramps, uneven ground and other obstacles compared with an ordinary stacker.
06	A standard lifting limit automatically cuts off the uplink power supply once the fork reaches the top, for smooth parking and protection against “roof falling” accidents.

Main technical parameters

Parameter	Unit	CL1525GC	CL1530GC	CL1536GC	CL2025GC	CL2030GC	CL2036GC
Characteristics
Power unit		Electric
Operation		Standing on
Rated traction weight	Q (kg)	1500			2000
Load capacity of the mast	Q (kg)	1000	950	800	1200	1150	1000
Load centre	c (mm)	600
Axle centre to fork face	x (mm)	848
Wheel base	y (mm)	1472
Service weight with battery	kg	1032	1072	1120	1105	1145	1190
Wheels / tyres
Wheels type		PU
Driving wheel size	Φ×w (mm)	Φ250×75
Bearing wheel size	Φ×w (mm)	Φ80×70
Additional wheels	Φ×w (mm)	Φ115×55
Wheels, front/rear (x=driven)		1x, 2/4
Track width, drive end	b10 (mm)	580
Track width, load end	b11 (mm)	505/390
Dimensions
Free lift	h1 (mm)	1799	2049	2349	1799	2049	2349
Lift	h2 (mm)	0
Height of mast, extended	h3 (mm)	2530	3030	3630	2530	3030	3630
Height of seat/stand-on platform	h4 (mm)	2943	3443	4043	2943	3443	4043
Initial boost	h5 (mm)	120
Overall height (with handle)	h14 (mm)	1065/1365
Lowered fork height	h13 (mm)	90
Overall length	l1 (mm)	2000
Length to fork face	l2 (mm)	850
Overall width	b1/b2 (mm)	808
Fork dimensions	s/e/l (mm)	60/180/1150
Width of forks	b5 (mm)	685/570
Min. ground clearance	m2 (mm)	35
Aisle width, pallet 1000×1200 across forks	Ast (mm)	2530
Aisle width, pallet 800×1200 along forks	Ast (mm)	2443
Min. turning radius	Wa (mm)	1710
Performance
Travel speed, laden/unladen	km/h	5.2/5.5
Lifting speed, with/without load	mm/s	100/130
Lowering speed, with/without load	mm/s	180/140
Maximum climbing ability, with/without load	%	6/8
Service brake		Electromagnetic
Drive
Drive motor, 60 minute rating	kW	1.5			2.5
Lift motor rating at S3 15%	kW	2.2
Battery voltage/rated capacity	V/Ah	24/210
Battery weight	kg	190
Other
Type of drive control		AC
Noise level at operator’s ear	dB(A)	≤70
