CL1645QD / CL1655QD

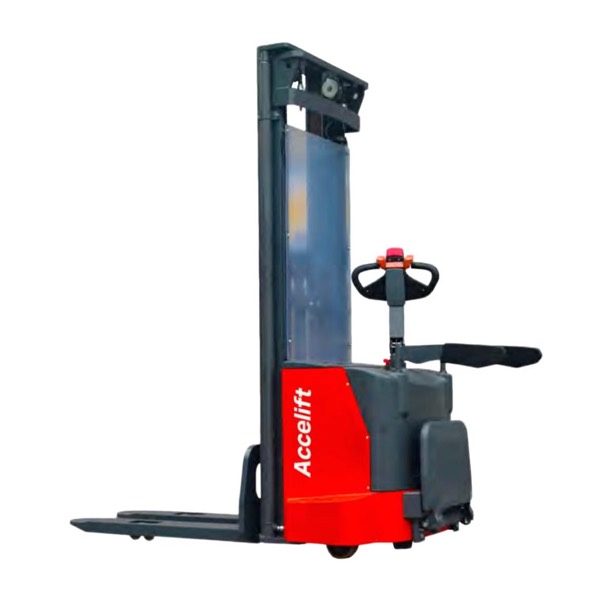

Electric Stacker (Standing On)

A standing-on stacker with electric power-assisted steering standard across the range, protective arms on both sides of the driving position, and a floating drive bracket for smooth, stable operation.

1600 kg

Rated capacity

4500-5500 mm

Lift height

1630 mm

Turning radius

≤70 dB(A)

Noise level

Key features

01	Electric power-assisted steering is standard across the whole series, with a keen power response, a freely operated handle, and reduced operator fatigue. Steering is light at low speed and stable at high speed, giving more intelligent, precise handling and a smoother drive.
02	A high-performance battery offers great cycle performance and deep-discharge recovery, for superior battery life and long service life.
03	Protective arms on both sides of the driving position help keep the operator safe.
04	A floating bracket at the center of the drive system keeps the vehicle stable, for smooth, steady operation.
05	A comfortable pedal floor uses 64 butterfly-spring shock absorbers to quickly absorb vibration from the road surface. The AC motor needs few components and has no fragile parts requiring regular replacement, for more efficient, durable, low-maintenance operation.

Main technical parameters

Parameter	Unit	CL1645QD	CL1655QD
Characteristics
Power unit		Electric
Operation		Standing on
Rated traction weight	Q (kg)	1600
Load centre	c (mm)	600
Axle centre to fork face	x (mm)	675
Wheel base	y (mm)	1320
Service weight with battery	kg	1305	1370
Wheels / tyres
Wheels type		PU
Driving wheel size	Φ×w (mm)	Φ250×75
Bearing wheel size	Φ×w (mm)	Φ80×70
Additional wheels	Φ×w (mm)	Φ150×58
Wheels, front/rear (x=driven)		1, 4/2
Track width, drive end	b10 (mm)	828
Track width, load end	b11 (mm)	390/515
Dimensions
Free lift	h1 (mm)	2054	2386
Lift	h2 (mm)	1561	1894
Height of mast, extended	h3 (mm)	4500	5500
Height of seat/stand-on platform	h4 (mm)	5060	6060
Overall height (with handle)	h14 (mm)	1040/1415
Lowered fork height	h13 (mm)	86
Overall length	l1 (mm)	2085
Length to fork face	l2 (mm)	925
Overall width	b1/b2 (mm)	1060
Fork dimensions	s/e/l (mm)	60/180/1150
Width of forks	b5 (mm)	570/695
Min. ground clearance	m2 (mm)	26
Aisle width, pallet 1000×1200 across forks	Ast (mm)	2503
Aisle width, pallet 800×1200 along forks	Ast (mm)	2480
Min. turning radius	Wa (mm)	1630
Performance
Travel speed, laden/unladen	km/h	5.2/5.5
Lifting speed, with/without load	mm/s	165/260
Lowering speed, with/without load	mm/s	205/195
Maximum climbing ability, with/without load	%	6/8
Service brake		Electromagnetic
Drive
Drive motor, 60 minute rating	kW	1.5
Lift motor rating at S3 15%	kW	3.0
Battery voltage/rated capacity	V/Ah	24/240
Battery weight	kg	240
Other
Type of drive control		AC
Noise level at operator’s ear	dB(A)	≤70
