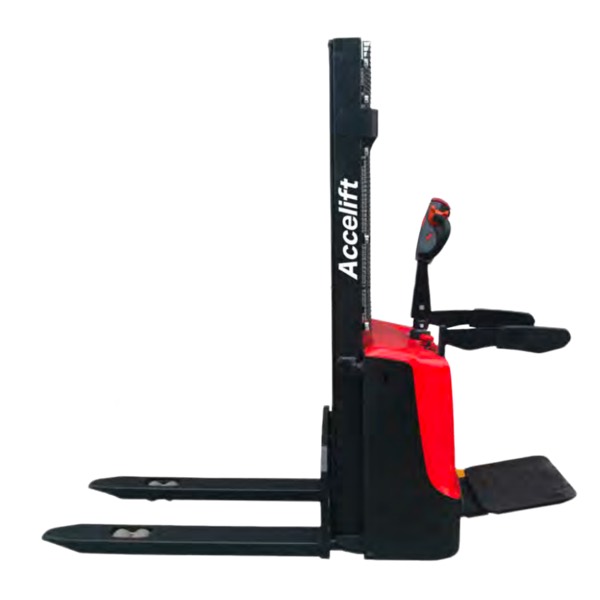

CL1516SE / CL1520SE / CL1525SE / CL1530SE / CL1535SE

Electric Stacker (Standing On)

A standing-on stacker with a permanent-magnet motor drive for compact, efficient operation, a cushioned pedal that absorbs road vibration, and a compact middle-drive design for a small turning radius in tight spaces.

1.5 t

Rated capacity

1600-3500 mm

Lift height

1410 mm

Turning radius

≤70 dB(A)

Noise level

Key features

01	A permanent-magnet motor drive system is compact, light and highly efficient, with low losses.
02	A built-in charger adds convenience for customers.
03	A comfortable operating pedal with a shock absorber underneath quickly absorbs vibration from the road surface.
04	A high-power, high-performance lifting pump station keeps cargo lifting strong and balanced, for excellent value.
05	A compact middle-drive design reduces the working aisle, with a small turning radius and better visibility for small-space operation.
06	A maintenance-free battery can be replaced without extra tools, for greater convenience.

Main technical parameters

Parameter	Unit	CL1516SE	CL1520SE	CL1525SE	CL1530SE	CL1535SE
Characteristics
Power unit		Electric
Operation		Pedestrian
Rated traction weight	Q (t)	1.5
Load centre	c (mm)	600
Axle centre to fork face	x (mm)	780
Wheel base	y (mm)	1200
Service weight with battery	kg	550	585	610	635	660
Wheels / tyres
Wheels type		PU
Driving wheel size	Φ×w (mm)	Φ210×75
Bearing wheel size	Φ×w (mm)	Φ80×70
Additional wheels	Φ×w (mm)	Φ100×40
Wheels, front/rear (x=driven)		1x+2/4
Track width, drive end	b10 (mm)	592
Track width, load end	b11 (mm)	410/535
Dimensions
Height of mast, lowered	h1 (mm)	2006	1486	1736	1986	2236
Free lift	h2 (mm)	0
Lift	h3 (mm)	1600	2000	2500	3000	3500
Height of mast, extended	h4 (mm)	2006	2443	2943	3443	3943
Overall height (with handle)	h14 (mm)	970/1330
Lowered fork height	h13 (mm)	86
Overall length	l1 (mm)	1775
Length to fork face	l2 (mm)	625
Overall width	b1/b2 (mm)	820
Fork dimensions	s/e/l (mm)	60/160/1150
Width of forks	b5 (mm)	570/695
Min. ground clearance	m2 (mm)	26
Aisle width, pallet 1000×1200 across forks	Ast (mm)	2250
Aisle width, pallet 800×1200 along forks	Ast (mm)	2190
Min. turning radius	Wa (mm)	1410
Performance
Travel speed, laden/unladen	km/h	4.2/4.5
Lifting speed, with/without load	mm/s	85/140
Lowering speed, with/without load	mm/s	110/90
Maximum climbing ability, with/without load	%	3/10
Service brake		Electromagnetic
Drive
Drive motor, 60 minute rating	kW	0.75
Lift motor rating at S3 15%	kW	2.2
Battery voltage/rated capacity	V/Ah	2×12/120
Battery weight	kg	2×34
Other
Type of drive control		DC
Noise level at operator’s ear	dB(A)	≤70
Type of steering		Mechanical
