SPN1016 / SPN1030 / SPN1516 / SPN1530 / SPN2016 / SPN2020

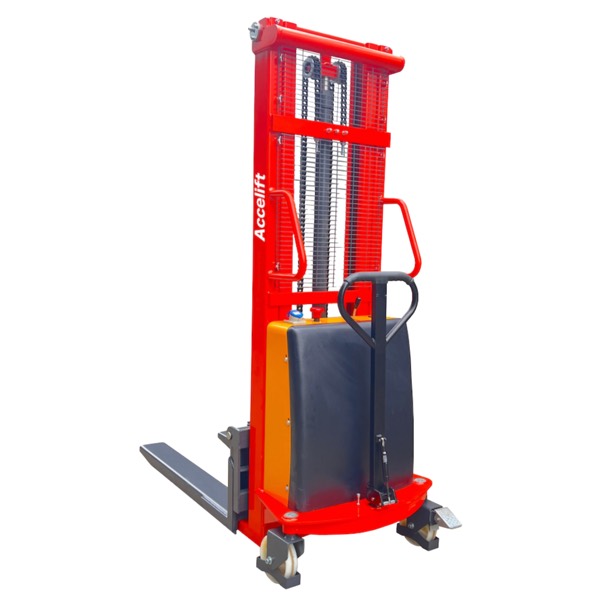

SPN Series Semi-Electric Stacker (Pedestrian)

A compact hydraulic power unit with sensitive, adjustable-speed lifting, an imported motor relay for fast and stable operation, and reinforcing ribs between the masts for stability under heavy loads.

1000-2000 kg

Rated capacity

1600-3000 mm

Lift height

1350 mm

Turning radius

≤70 dB(A)

Noise level

Key features

01	The hydraulic power unit is compact, responsive and powerful, letting users adjust lifting speed as needed; its components are international well-known brands, for a stable system with a long service life.
02	An imported motor relay is fitted across the whole series, with fast action, strong pulling ability, stable operation and a long service life.
03	Adjusting bolts at the back of the forks let the two forks be leveled back to horizontal if they become slightly deformed over years of use.
04	The brake acts directly on the universal wheel, so the foot brake engages immediately for quick, reliable stopping.
05	Reinforcing ribs between the internal and external masts keep the mast from tilting forward as the load rises, for better vehicle stability.

Main technical parameters

Parameter	Unit	SPN1016	SPN1030	SPN1516	SPN1530	SPN2016	SPN2020
Characteristics
Power unit		Electric
Operation		Handle
Rated traction weight	Q (kg)	1000	1000	1500	1500	2000	2000
Load centre	c (mm)	450
Axle centre to fork face	x (mm)	705	700	705	700	705	700
Wheel base	y (mm)	1190
Service weight with battery	kg	315	380	320	395	325	380
Wheels / tyres
Wheels type		Nylon/PU
Driving wheel size	Φ×w (mm)	Φ180×50
Bearing wheel size	Φ×w (mm)	Φ74×70
Additional wheels	Φ×w (mm)	Φ180×50
Wheels, front/rear (x=driven)		1,1/2
Track width, drive end	b10 (mm)	648
Track width, load end	b11 (mm)	390/490
Dimensions
Height of mast, lowered	h1 (mm)	2077	2077	2077	2077	2077	1577
Lift	h3 (mm)	1600	3000	1600	3000	1600	2000
Height of mast, extended	h4 (mm)	2077	3567	2077	3567	2077	2567
Fork height, lowered	h13 (mm)	85
Overall length	l1 (mm)	1600/1800
Length to fork face	l2 (mm)	700
Overall width	b1/b2 (mm)	760/964
Fork dimensions	e/l (mm)	60/150/900(1100)
Width of forks	b5 (mm)	550/640
Min. ground clearance	m2 (mm)	27
Aisle width, pallet 1000×1200 across forks	Ast (mm)	2250
Aisle width, pallet 800×1200 along forks	Ast (mm)	2240
Min. turning radius	Wa (mm)	1350
Performance
Lifting speed, with/without load	mm/s	60/100	60/100	50/120	50/120	45/110	45/110
Lowering speed, with/without load	mm/s	150/130	150/130	150/130	150/130	110/80	110/80
Service brake		Machinery
Drive
Lift motor rating at S3 15%	kW	1.6
Battery voltage/rated capacity	V/Ah	12/120
Battery weight	kg	36
Other
Noise level at operator’s ear	dB(A)	≤70
