CL1030J / CL1016JD

Electric Stacker (Pedestrian)

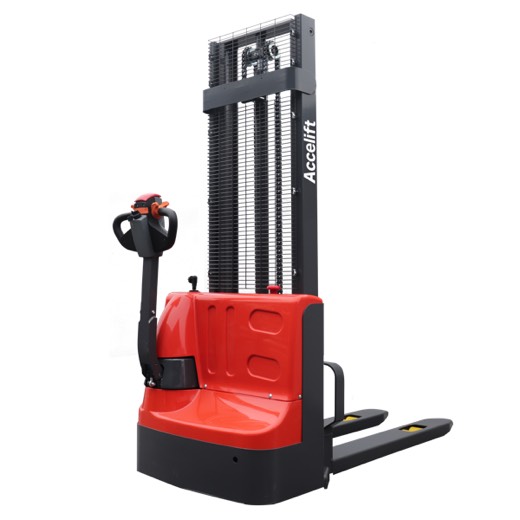

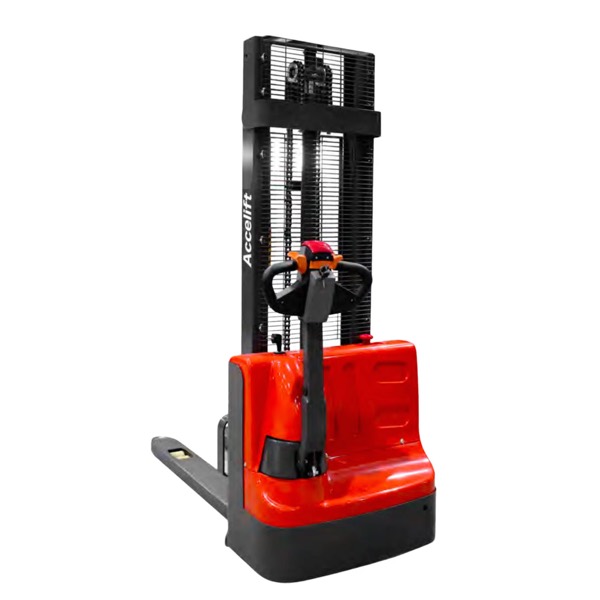

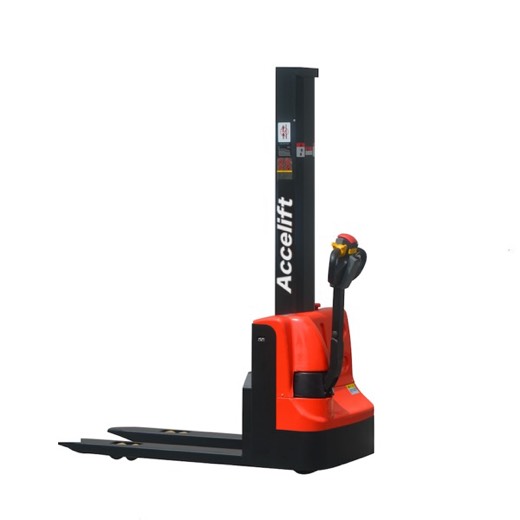

A side-drive pedestrian stacker with an extended, ergonomic handle for narrow-space work, an external charger for better heat dissipation, and a high-density wire guard for durable protection.

1200 kg

Rated capacity

3000/1600 mm

Lift height

1405 mm

Turning radius

≤70 dB(A)

Noise level

Key features

01	A side-drive design reduces the operating aisle, gives a small turning radius and a better field of view, suiting work in narrow spaces.
02	The operating handle is extended for walking operation, following ergonomic principles for comfortable use.
03	A key switch, electric meter, up/down buttons and turtle-speed switch are all integrated into the handle for easy operation.
04	An external charger offers better heat dissipation, avoiding the vibration damage a built-in charger can suffer while the vehicle is running.
05	A German-imported waterproof micro-switch adapts to cold, humid, dusty and other harsh environments.
06	A permanent-magnet motor drive system is compact, light and highly efficient, with low losses.
07	A high-density wire guard, braided and welded, is strong, durable and offers excellent protection.

Main technical parameters

Parameter	Unit	CL1030J	CL1016JD
Characteristics
Power unit		Electric
Operation		Pedestrian
Rated traction weight	Q (kg)	1200
Load centre	c (mm)	600
Axle centre to fork face	x (mm)	780
Wheel base	y (mm)	1230	1100
Service weight with battery	kg	500	406
Wheels / tyres
Wheels type		PU
Driving wheel size	Φ×w (mm)	Φ210×75
Bearing wheel size	Φ×w (mm)	Φ80×70
Additional wheels	Φ×w (mm)	Φ150×58
Wheels, front/rear (x=driven)		1x+1/4
Track width, drive end	b10 (mm)	516
Track width, load end	b11 (mm)	410/535
Dimensions
Free lift	h1 (mm)	1995	1990
Lift	h2 (mm)	0	1485
Height of mast, extended	h3 (mm)	3000	1600
Height of seat/stand-on platform	h4 (mm)	3452	2060
Overall height (with handle)	h14 (mm)	870/1200
Lowered fork height	h13 (mm)	86
Overall length	l1 (mm)	1755	1632
Length to fork face	l2 (mm)	605	482
Overall width	b1/b2 (mm)	795
Fork dimensions	s/e/l (mm)	60/160/1150
Width of forks	b5 (mm)	570/695
Min. ground clearance	m2 (mm)	26
Aisle width, pallet 1000×1200 across forks	Ast (mm)	2245	2120
Aisle width, pallet 800×1200 along forks	Ast (mm)	2185	2060
Min. turning radius	Wa (mm)	1405	1280
Performance
Travel speed, laden/unladen	km/h	4.0/4.2
Lifting speed, with/without load	mm/s	95/140
Lowering speed, with/without load	mm/s	100/90
Maximum climbing ability, with/without load	%	3/10
Service brake		Electromagnetic
Drive
Drive motor, 60 minute rating	kW	0.75
Lift motor rating at S3 15%	kW	2.2
Battery voltage/rated capacity	V/Ah	2×12/100
Battery weight	kg	2×27
Other
Type of drive control		DC
Noise level at operator’s ear	dB(A)	≤70
Type of steering		Mechanical
