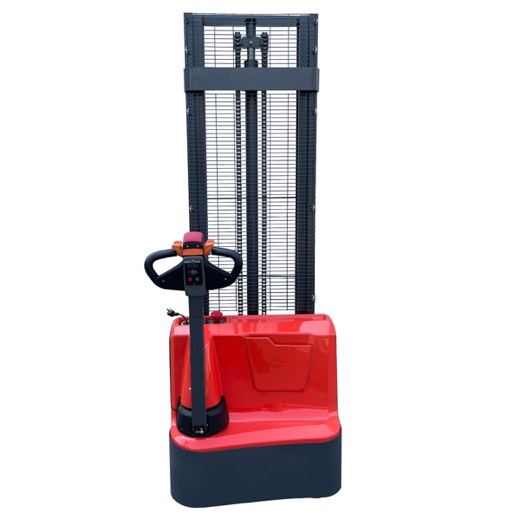

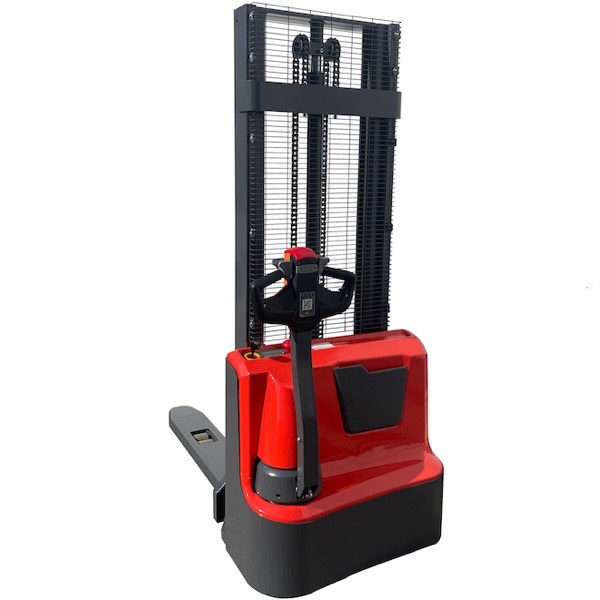

CDD1616J-D / CDD1620J-D / CDD1625J-D / CDD1630J-D / CDD1635J-D

Electric Stacker (Pedestrian)

A pedestrian stacker with AC vertical drive for strong, precise, smooth operation, a C+H channel steel mast for high strength, and an explosion-proof hydraulic system for added safety.

1.6 t

Rated capacity

1600-3500 mm

Lift height

1292 mm

Turning radius

≤70 dB(A)

Noise level

Key features

01	AC vertical drive provides strong power, precise control and smooth operation.
02	A C-type + H-type channel steel mast delivers high strength for safer operation.
03	An explosion-proof hydraulic system prevents the mast from falling quickly if the oil pipe ruptures, for improved safety.
04	A protective net design gives a wider field of view for safer operation.
05	An integrated handle design puts all function buttons within easy reach, for a simple structure and easy operation.
06	The handle has an emergency reverse function to protect the driver from being squeezed, for safer operation.
07	A long handle on the pedestrian forklift makes operation convenient and labor-saving.
08	The integrated mask can be quickly removed with just 2 screws to inspect the main components inside the vehicle body.
09	An emergency stop switch on the body cuts power in case of an accident, for improved safety.
10	A built-in charger and maintenance-free battery let you plug in and charge at any time, for greater convenience.

Main technical parameters

Parameter	Unit	CDD1616J-D	CDD1620J-D	CDD1625J-D	CDD1630J-D	CDD1635J-D
Characteristics
Power unit		Electric
Operation		Pedestrian
Rated traction weight	Q (t)	1.6
Load centre	c (mm)	600
Axle centre to fork face	x (mm)	674
Wheel base	y (mm)	1114
Service weight with battery	kg	564	628	652	676	700
Wheels / tyres
Wheels type		PU
Driving wheel size	Φ×w (mm)	Φ230×75
Bearing wheel size	Φ×w (mm)	Φ80×70
Additional wheels	Φ×w (mm)	Φ115×55
Wheels, front/rear (x=driven)		1x+1/4
Track width, drive end	b10 (mm)	539
Track width, load end	b11 (mm)	390/515
Dimensions
Height of mast, lowered	h1 (mm)	2014	1486	1736	1986	2236
Free lift	h2 (mm)	0
Lift	h3 (mm)	1600	2000	2500	3000	3500
Height of mast, extended	h4 (mm)	2014	2443	2943	3443	3943
Overall height (with handle)	h14 (mm)	820/1150
Overall length	l1 (mm)	1742
Length to fork face	l2 (mm)	592
Overall width	b1/b2 (mm)	800
Fork dimensions	s/e/l (mm)	60/180/1150
Width of forks	b5 (mm)	570/695
Min. ground clearance	m2 (mm)	26
Aisle width, pallet 1000×1200 across forks	Ast (mm)	2175
Aisle width, pallet 800×1200 along forks	Ast (mm)	2155
Min. turning radius	Wa (mm)	1292
Performance
Travel speed, laden/unladen	km/h	4.0/4.2
Lifting speed, with/without load	mm/s	85/140
Lowering speed, with/without load	mm/s	110/90
Maximum climbing ability, with/without load	%	6/10
Service brake		Electromagnetic
Drive
Drive motor, 60 minute rating	kW	1.5
Lift motor rating at S3 15%	kW	2.2
Battery voltage/rated capacity	V/Ah	2×12/120
Battery weight	kg	2×34
Other
Type of drive control		AC
Noise level at operator’s ear	dB(A)	≤70
Type of steering		Mechanical
