CL1016 / CL1026 / CL1032 / CL1516 / CL1526 / CL1532

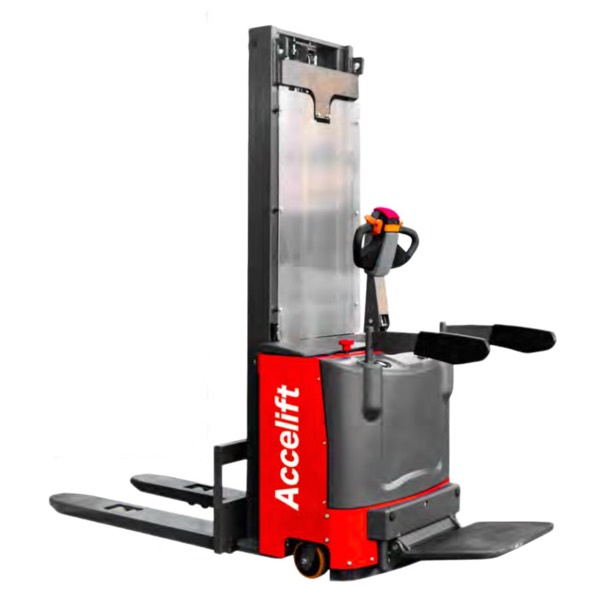

Electric Stacker (Standing On)

An imported AC-controlled standing-on stacker with an emergency reverse switch, a standard lifting limit for safe parking, and a high-position speed limiting device that automatically adjusts driving speed for safer operation.

1000-1500 kg

Rated capacity

1600-3200 mm

Lift height

1495 mm

Turning radius

≤70 dB(A)

Noise level

Key features

01	The imported AC controller has stepless speed regulation, a reverse braking function and short-circuit protection.
02	An emergency reverse switch on the control handle helps protect the operator if the vehicle goes out of control.
03	A standard lifting limit automatically cuts off the uplink power supply once the fork reaches the top, for smooth parking.
04	A standard high-cargo speed limiting device automatically reduces driving speed once the mast rises a short distance from the bottom, improving operating safety.
05	The operating handle is equipped with a turtle-speed switch for more accurate low-speed control.
06	Once the mast lowers back to the bottom, driving speed automatically increases again, improving work efficiency.

Main technical parameters

Parameter	Unit	CL1016	CL1026	CL1032	CL1516	CL1526	CL1532
Characteristics
Power unit		Electric
Operation		Standing on
Rated traction weight	Q (kg)	1000			1500
Load centre	c (mm)	600
Axle centre to fork face	x (mm)	695
Wheel base	y (mm)	1190
Service weight with battery	kg	818	887	917	827	897	927
Wheels / tyres
Wheels type		PU
Driving wheel size	Φ×w (mm)	Φ250×80
Bearing wheel size	Φ×w (mm)	Φ80×70
Additional wheels	Φ×w (mm)	Φ150×58
Wheels, front/rear (x=driven)		1, 2/4
Track width, drive end	b10 (mm)	675
Track width, load end	b11 (mm)	390/515
Dimensions
Free lift	h1 (mm)	2077	1877	2127	2077	1877	2127
Lift	h2 (mm)	0
Height of mast, extended	h3 (mm)	1600	2600	3200	1600	2600	3200
Height of seat/stand-on platform	h4 (mm)	2077	3137	3687	2077	3137	3687
Overall height (with handle)	h14 (mm)	1040/1415
Lowered fork height	h13 (mm)	86
Overall length	l1 (mm)	1955
Length to fork face	l2 (mm)	770	764	764	770	764	764
Overall width	b1/b2 (mm)	808
Fork dimensions	s/e/l (mm)	60/180/1150
Width of forks	b5 (mm)	570/695
Min. ground clearance	m2 (mm)	26
Aisle width, pallet 1000×1200 across forks	Ast (mm)	2380
Aisle width, pallet 800×1200 along forks	Ast (mm)	2360
Min. turning radius	Wa (mm)	1495
Performance
Travel speed, laden/unladen	km/h	5.2/5.5
Lifting speed, with/without load	mm/s	95/145			80/145
Lowering speed, with/without load	mm/s	105/100
Maximum climbing ability, with/without load	%	6/8
Service brake		Electromagnetic
Drive
Drive motor, 60 minute rating	kW	1.5
Lift motor rating at S3 15%	kW	2.2
Battery voltage/rated capacity	V/Ah	24/210
Battery weight	kg	190
Other
Type of drive control		AC
Noise level at operator’s ear	dB(A)	≤70
