CL1016GA / CL1030GA / CL1616GA / CL1630GA / CL2016GA / CL2030GA

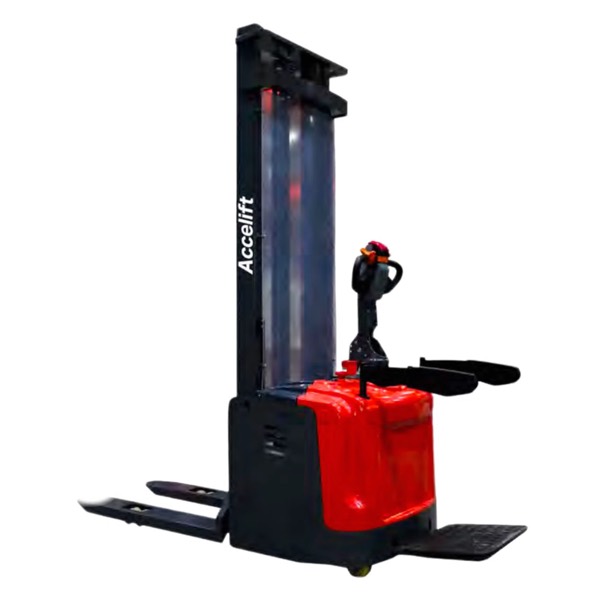

Electric Stacker (Standing On)

A high-power MOSFET-driven standing-on stacker with an advanced vertical AC drive system, a reinforced gantry-steel mast, and standard power steering for responsive, comfortable handling.

1000-2000 kg

Rated capacity

1600-3000 mm

Lift height

1570 mm

Turning radius

≤70 dB(A)

Noise level

Key features

01	A high-power MOSFET driver is high-frequency, efficient and quiet, with stepless speed regulation and a reverse braking function.
02	An advanced vertical AC drive system lets the motor draw more energy and greater braking torque, for more powerful, efficient and accelerated performance.
03	The whole series is built with a special gantry steel mast for great plasticity, strong anti-bending ability and high structural stability.
04	The whole series comes with a standard power steering system, so assisted power is responsive and the handle is easy to operate.
05	The AC motor needs few components, with no fragile parts to replace regularly, for an efficient, durable, almost maintenance-free design.
06	A side-pull battery configuration makes battery replacement faster and more convenient, supporting continuous operation and greater work efficiency.
07	A standard lifting limit automatically cuts off the uplink power supply once the fork reaches the top, for smooth parking and protection against “roof falling” accidents.

Main technical parameters

Parameter	Unit	CL1016GA	CL1030GA	CL1616GA	CL1630GA	CL2016GA	CL2030GA
Characteristics
Power unit		Electric
Operation		Standing on
Rated traction weight	Q (kg)	1000	1000	1600	1600	2000	2000
Load centre	c (mm)	600
Axle centre to fork face	x (mm)	673
Wheel base	y (mm)	1332
Service weight with battery	kg	920	1030	940	1065	960	1090
Wheels / tyres
Wheels type		PU
Driving wheel size	Φ×w (mm)	Φ250×75
Bearing wheel size	Φ×w (mm)	Φ80×70
Additional wheels	Φ×w (mm)	Φ115×55
Wheels, front/rear (x=driven)		1x+2/4
Track width, drive end	b10 (mm)	580
Track width, load end	b11 (mm)	515/390
Dimensions
Height of mast, lowered	h1 (mm)	2049	1999	2049	1999	2049	1999
Free lift	h2 (mm)	166
Lift	h3 (mm)	1600	3000	1600	3000	1600	3000
Height of mast, extended	h4 (mm)	2049	3408	2049	3408	2049	3408
Overall height (with handle)	h14 (mm)	1063/1440
Lowered fork height	h13 (mm)	85
Overall length	l1 (mm)	2040
Length to fork face	l2 (mm)	890
Overall width	b1/b2 (mm)	808
Fork dimensions	s/e/l (mm)	60/180/1150
Width of forks	b5 (mm)	570/695
Min. ground clearance	m2 (mm)	24
Aisle width, pallet 1000×1200 across forks	Ast (mm)	2452
Aisle width, pallet 800×1200 along forks	Ast (mm)	2432
Min. turning radius	Wa (mm)	1570
Performance
Travel speed, laden/unladen	km/h	5.2/5.5
Lifting speed, with/without load	mm/s	95/130	95/130	80/130	80/130	70/130	70/130
Lowering speed, with/without load	mm/s	190/180	190/180	180/180	180/180	180/180	180/180
Maximum climbing ability, with/without load	%	6/8
Service brake		Electromagnetic
Drive
Drive motor, 60 minute rating	kW	1.5	1.5	2.5	2.5	2.5	2.5
Lift motor rating at S3 15%	kW	3
Battery voltage/rated capacity	V/Ah	24/210
Battery weight	kg	190
Other
Type of drive control		AC
Noise level at operator’s ear	dB(A)	≤70
Type of steering		Electric
