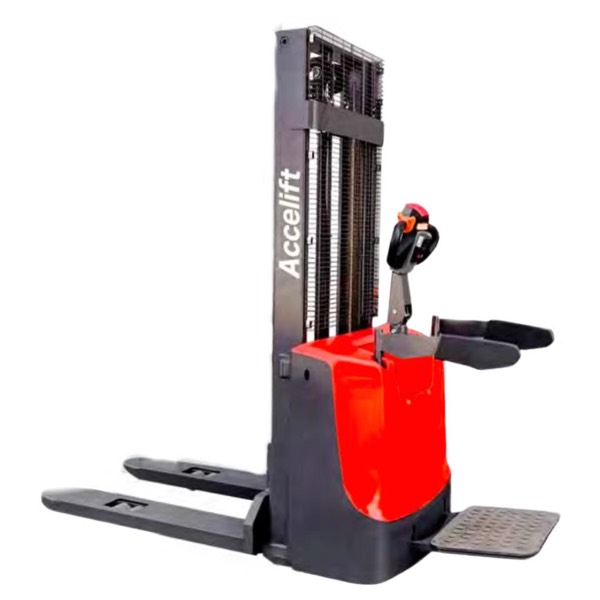

CDD20J-BRM

Electric Stacker (Standing On)

A 48V standing-on stacker with a C+H channel steel mast for excellent bending performance, an explosion-proof hydraulic system, and a mesh mast cover that separates people and goods while preserving visibility.

2000 kg

Rated capacity

3000 mm

Lift height

1340 mm

Turning radius

≤70 dB(A)

Noise level

Key features

01	The 48V drive system provides powerful power, precise control and smooth operation.
02	A C-type + H-type channel steel mast delivers excellent bending performance.
03	An explosion-proof hydraulic system prevents the frame from dropping suddenly if the oil pipe breaks, improving safety.
04	A standard speed-reduction switch on the mast lowers driving speed once lift height exceeds 300mm, improving operating safety.
05	An iron mesh mast cover separates people from goods while preserving visibility, protecting the operator.
06	The handle has an emergency reverse function to prevent the driver from being crushed.
07	A turtle-speed button on the handle meets different speed needs across working conditions.
08	An emergency stop switch can power off the vehicle in case of an accident.
09	A standard pedal with automatic recovery and an easy-to-open, bend-resistant protection arm fully protect the driver’s safety.
10	A built-in charger and maintenance-free battery make charging easy.
11	Separated masks make maintenance easy — unscrew the corresponding mask to access the main components.

Main technical parameters

Parameter	Unit	CDD20J-BRM
Characteristics
Drive unit		Electric
Operator type		Standing on
Rated capacity	Q (kg)	2000
Load center distance	c (mm)	600
Axle centre to fork face	x (mm)	675
Wheelbase	y (mm)	1128
Service weight (include battery)	kg	740
Wheels / tyres
Tyre type, driving/loading wheels		PU
Tyre size, driving wheels	Φ×w (mm)	Φ210×75
Tyre size, loading wheels	Φ×w (mm)	Φ80×70
Tyre size, caster wheels	Φ×w (mm)	Φ100×40
Wheels, driving/caster/loading (x=drive)		1x,2/4
Track width, front, driving side	b10 (mm)	592
Track width, rear, loading side	b11 (mm)	515
Dimensions
Height of mast, lowered	h1 (mm)	1995
Free lift	h2 (mm)	0
Lift height	h3 (mm)	3000
Height drawbar in driving position, min/max	h14 (mm)	970/1330
Lowered height	h13 (mm)	86
Overall length	l1 (mm)	1810
Length to face of forks	l2 (mm)	660
Overall width	b1/b2 (mm)	820
Fork dimensions	s/e/l (mm)	60/180/1150
Distance between fork-arms	b5 (mm)	695
Ground clearance, center of wheelbase	m2 (mm)	26
Aisle width, pallet 1000×1200 crossways	Ast (mm)	2225
Aisle width, pallet 800×1200 lengthways	Ast (mm)	2200
Turning radius	Wa (mm)	1340
Performance
Travel speed, laden/unladen	km/h	4.5/5.5
Lifting speed, laden/unladen	m/s	0.085/0.15
Lowering speed, laden/unladen	m/s	0.11/0.10
Max. gradeability, laden/unladen	%	4/10
Service brake type		Electromagnetic
Drive
Drive motor rating S2 60 min	kW	1.0
Lift motor rating at S3 15%	kW	2.2
Max. allowed battery size	mm	4×(230×140×180)
Battery voltage/nominal capacity (K5)	V/Ah	4×12/65
Battery weight	kg	4×15.3
Other
Type of drive control		DC
Steering type		Mechanical
Sound pressure level at the driver’s ear	dB(A)	≤70
