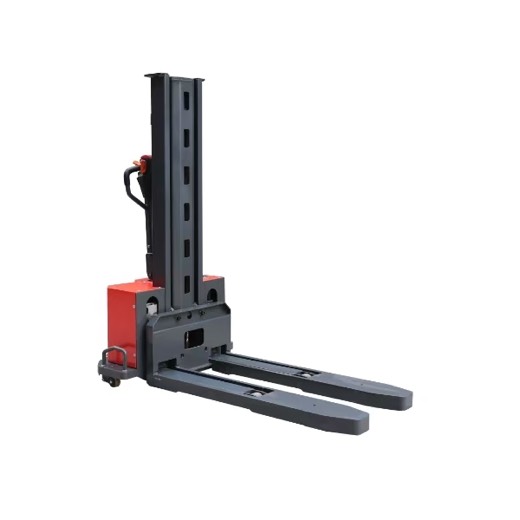

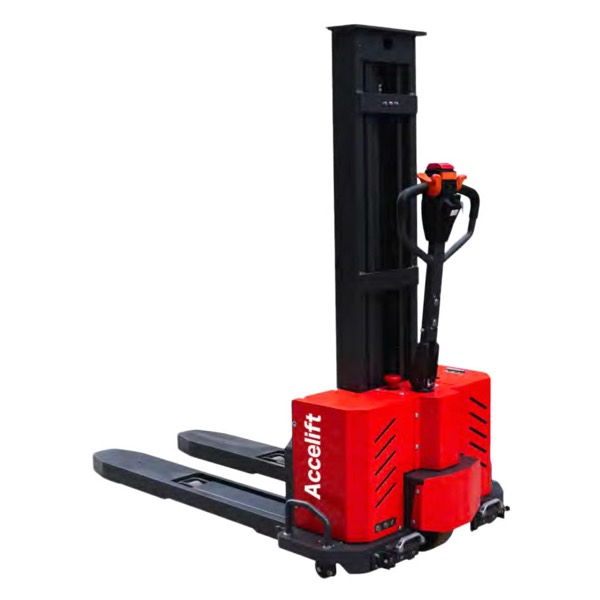

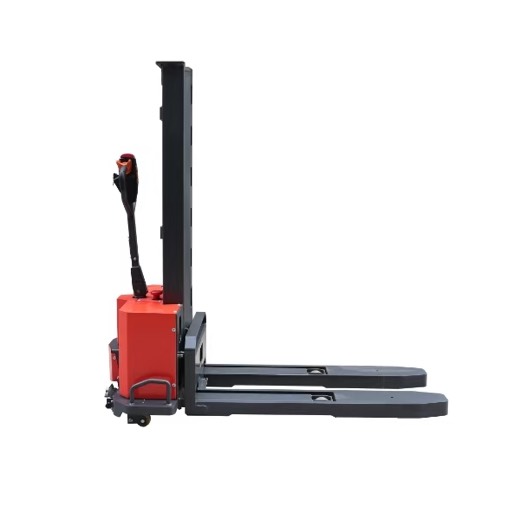

Self-Lifting Electric Stacker SCD10
Self-Lifting Electric Stacker SCD10
- Rated capacity
- 1000 kg
- Lift height
- 1300 mm
- Turning radius
- 1080 mm
- Noise level
- ≤70 dB(A)
Ask for a price, lead time, battery options or the full spec sheet. Factory-direct, OEM branding available.
Description
Self-Lifting Electric Stacker · SCDS Series, Pedestrian
SCD10
Self-Lifting Electric Stacker (Pedestrian)
A lightweight, compact self-lifting stacker built for both outdoor handling and warehouse stacking — small enough to be carried by car, with a metal shell and C-channel steel mast for durability.
|
1000 kg
Rated capacity
|
1300 mm
Lift height
|
1080 mm
Turning radius
|
≤70 dB(A)
Noise level
|
Key features
| 01 | DC drive control provides strong power, accurate control and smooth operation. |
| 02 | Suited to both outdoor handling and warehouse stacking, it can also be carried by car. |
| 03 | An explosion-proof hydraulic system prevents the frame from dropping quickly if the oil pipe breaks, improving safety. |
| 04 | An emergency stop switch on the body can power off the vehicle in case of an accident. |
| 05 | A standard pull-out lithium battery makes charging easy. |
| 06 | A C-channel steel door frame delivers excellent bending performance and high strength. |
| 07 | A split cover design makes maintenance easy. |
| 08 | A rail-type leg with a standard stop lock ensures safe, reliable operation. |
| 09 | A lightweight, compact structure makes it easy to move. |
| 10 | A fine-looking metal shell effectively protects the internal components. |
Main technical parameters
| Parameter | Unit | SCD10 | |
| Characteristics | |||
| Drive unit | Electric | ||
| Operator type | Pedestrian | ||
| Rated capacity | Q (kg) | 1000 | |
| Load center distance | c (mm) | 400 | |
| Axle centre to fork face | x (mm) | 600 | |
| Wheelbase | y (mm) | 905 | |
| Service weight (include battery) | kg | 420 | |
| Wheels / tyres | |||
| Tyre type, driving/loading wheels | PU | ||
| Tyre size, driving wheels | Φ×w (mm) | Φ210×75 | |
| Tyre size, loading wheels | Φ×w (mm) | Φ80×50 | |
| Tyre size, caster wheels | Φ×w (mm) | Φ65×30 | |
| Wheels, driving/caster/loading (x=drive) | 1x, 2/2 | ||
| Track width, front, driving side | b10 (mm) | 755 | |
| Track width, rear, loading side | b11 (mm) | 420 | |
| Dimensions | |||
| Height of mast, lowered | h1 (mm) | 1647 | |
| Lift height | h3 (mm) | 1300 | |
| Height drawbar in driving position, min/max | h14 (mm) | 750/1145 | |
| Lowered height | h13 (mm) | 90 | |
| Overall length | l1 (mm) | 1660 | |
| Length to face of forks | l2 (mm) | 460 | |
| Overall width | b1/b2 (mm) | 890 | |
| Fork dimensions | s/e/l (mm) | 70/190/1200 | |
| Distance between fork-arms | b5 (mm) | 620 | |
| Turning radius | Wa (mm) | 1080 | |
| Performance | |||
| Travel speed, laden/unladen | km/h | 3.6/4.0 | |
| Lifting speed, laden/unladen | m/s | 0.045/0.050 | |
| Lowering speed, laden/unladen | m/s | 0.195/0.110 | |
| Max. gradeability, laden/unladen | % | 4/10 | |
| Service brake type | Electromagnetic | ||
| Drive | |||
| Drive motor rating S2 60 min | kW | 0.75 | |
| Lift motor rating at S3 15% | kW | 1.2 | |
| Max. allowed battery size | mm | 88×215×358 | |
| Battery voltage/nominal capacity (K5) | V/Ah | 24/35 | |
| Battery weight | kg | 8.5 | |
| Other | |||
| Type of drive control | DC | ||
| Steering type | Mechanical | ||
| Sound pressure level at the driver’s ear | dB(A) | ≤70 | |
Dimensions diagram
