CL1530JB

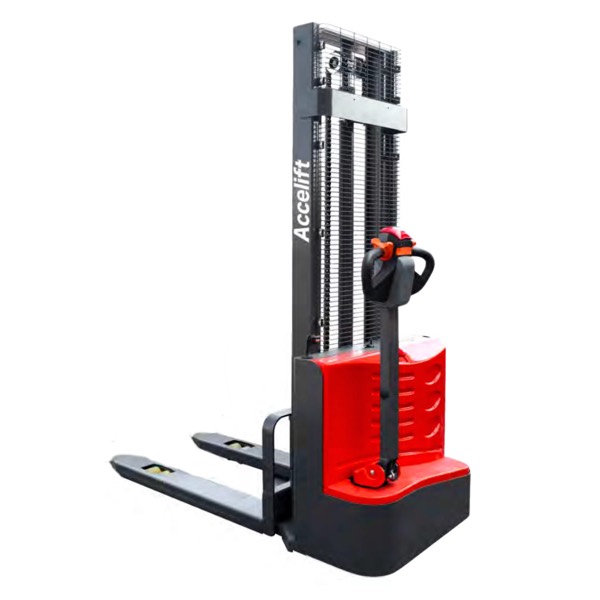

Electric Stacker (Pedestrian)

A pedestrian stacker with reinforcing ribs between the internal and external masts for a stable, non-tilting lift, a side-drive design for narrow spaces, and a German-imported waterproof micro-switch for harsh environments.

1.5 t

Rated capacity

3000 mm

Lift height

1405 mm

Turning radius

≤70 dB(A)

Noise level

Key features

01	Reinforcing ribs between the internal and external masts keep the mast from tilting forward as the load rises, for better vehicle stability.
02	A German-imported waterproof micro-switch adapts to cold, humid, dusty and other harsh environments.
03	A key switch, electric meter, up/down buttons and turtle-speed switch are all integrated into the handle for easy operation.
04	The operating handle uses a high-quality pneumatic spring that resets slowly and automatically once released.
05	The operating handle is extended for walking operation, following ergonomic principles for comfortable use.
06	A side-drive design reduces the operating aisle, gives a small turning radius and a better field of view, suiting work in narrow spaces.
07	Maintenance-free batteries don’t need special tools to replace, for greater convenience.

Main technical parameters

Parameter	Unit	CL1530JB
Characteristics
Power unit		Electric
Operation		Pedestrian
Rated traction weight	Q (t)	1.5
Load centre	c (mm)	600
Axle centre to fork face	x (mm)	780
Wheel base	y (mm)	1225
Service weight with battery	kg	500
Wheels / tyres
Wheels type		PU
Driving wheel size	Φ×w (mm)	Φ210×75
Bearing wheel size	Φ×w (mm)	Φ80×70
Additional wheels	Φ×w (mm)	Φ115×55
Wheels, front/rear (x=driven)		1x+1/4
Track width, drive end	b10 (mm)	522
Track width, load end	b11 (mm)	410/535
Dimensions
Free lift	h1 (mm)	1995
Lift	h2 (mm)	0
Height of mast, extended	h3 (mm)	3000
Height of seat/stand-on platform	h4 (mm)	3452
Overall height (with handle)	h14 (mm)	700/1225
Lowered fork height	h13 (mm)	86
Overall length	l1 (mm)	1740
Length to fork face	l2 (mm)	590
Overall width	b1/b2 (mm)	795
Fork dimensions	s/e/l (mm)	60/160/1150
Width of forks	b5 (mm)	570/695
Min. ground clearance	m2 (mm)	26
Aisle width, pallet 1000×1200 across forks	Ast (mm)	2245
Aisle width, pallet 800×1200 along forks	Ast (mm)	2185
Min. turning radius	Wa (mm)	1405
Performance
Travel speed, laden/unladen	km/h	4.0/4.2
Lifting speed, with/without load	mm/s	85/140
Lowering speed, with/without load	mm/s	110/90
Maximum climbing ability, with/without load	%	3/10
Service brake		Electromagnetic
Drive
Drive motor, 60 minute rating	kW	0.75
Lift motor rating at S3 15%	kW	2.2
Battery voltage/rated capacity	V/Ah	2×12/100
Battery weight	kg	2×27
Other
Type of drive control		DC
Noise level at operator’s ear	dB(A)	≤70
Type of steering		Mechanical
