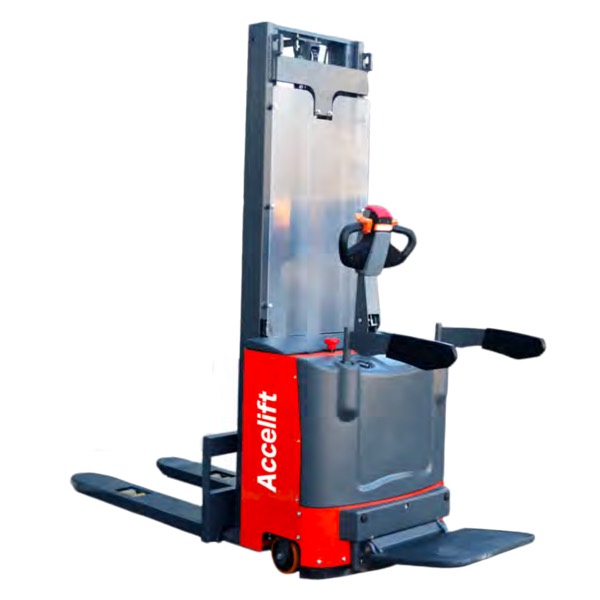

CL2016A / CL2026A / CL2032A / CL2036A / CL2026B / CL2032B / CL2036B

Electric Stacker (Standing On)

An imported AC-controlled standing-on stacker with a 12# tank steel main frame for ultra-high strength, high-performance batteries with long service life, and a power-off brake for extra safety on ramps.

2000 kg

Rated capacity

1600-3600 mm

Lift height

1495 mm

Turning radius

≤70 dB(A)

Noise level

Key features

01	The imported AC controller has stepless speed regulation, a reverse braking function and short-circuit protection.
02	High-performance storage batteries offer great cycle performance and deep discharge recovery, for a superior, long service life.
03	The main frame uses 12# tank steel for an ultra-high-strength body, ensuring the stability of the heavy-duty stacker.
04	A power-off brake function is especially practical and reliable if the vehicle loses control or is on a ramp. The standard lifting limit automatically cuts off the power supply once the forks reach the top, for stable parking.
05	The controller’s self-diagnosis function displays a fault code once connected to a hand-held unit, so issues can be checked quickly and accurately.

Main technical parameters

Parameter	Unit	2016A	2026A	2032A	2036A	2026B	2032B	2036B
Characteristics
Power unit		Electric
Operation		Standing on
Rated traction weight	Q (kg)	2000
Load centre	c (mm)	600
Axle centre to fork face	x (mm)	675
Wheel base	y (mm)	1180
Service weight with battery	kg	847	937	967	1007	1032	1040	1057
Wheels / tyres
Wheels type		PU
Driving wheel size	Φ×w (mm)	Φ250×80
Bearing wheel size	Φ×w (mm)	Φ80×70
Additional wheels	Φ×w (mm)	Φ150×58
Wheels, front/rear (x=driven)		1, 2/4
Track width, drive end	b10 (mm)	675
Track width, load end	b11 (mm)	390/515
Dimensions
Free lift	h1 (mm)	2077	1877	2127	2327	1862	2162	2362
Lift	h2 (mm)	0
Height of mast, extended	h3 (mm)	1600	2600	3200	3600	2600	3200	3600
Height of seat/stand-on platform	h4 (mm)	2077	3137	3687	4087	3232	3732	4132
Overall height (with handle)	h14 (mm)	1040/1415
Lowered fork height	h13 (mm)	86
Overall length	l1 (mm)	1930				1955
Length to fork face	l2 (mm)	770				764
Overall width	b1/b2 (mm)	808
Fork dimensions	s/e/l (mm)	60/180/1150
Width of forks	b5 (mm)	570/695
Min. ground clearance	m2 (mm)	26
Aisle width, pallet 1000×1200 across forks	Ast (mm)	2380
Aisle width, pallet 800×1200 along forks	Ast (mm)	2360
Min. turning radius	Wa (mm)	1495
Performance
Travel speed, laden/unladen	km/h	5.2/5.5
Lifting speed, with/without load	mm/s	90/110				71/108
Lowering speed, with/without load	mm/s	150/140				110/70
Maximum climbing ability, with/without load	%	6/8
Service brake		Electromagnetic
Drive
Drive motor, 60 minute rating	kW	1.5
Lift motor rating at S3 15%	kW	3
Battery voltage/rated capacity	V/Ah	24/210
Battery weight	kg	190
Other
Type of drive control		AC
Noise level at operator’s ear	dB(A)	≤70
