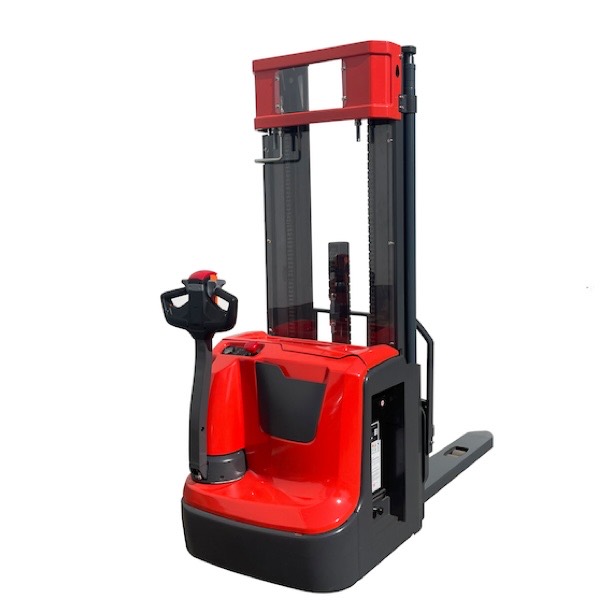

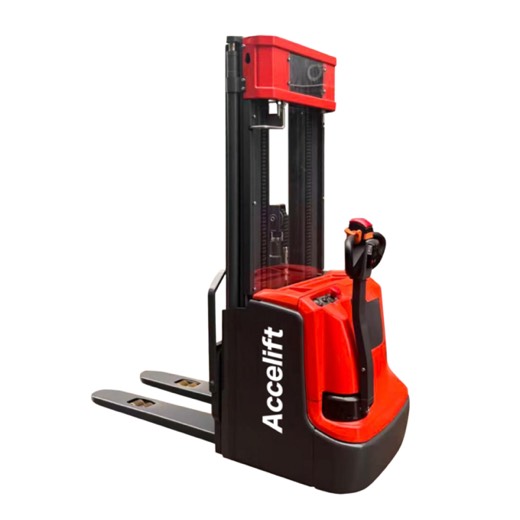

CDD16J-B / CDD20J-B

Electric Stacker (Pedestrian)

An AC-driven pedestrian stacker with ZF transmission for high efficiency, an H-type mast channel steel for extra strength, and a side-traction battery box for fast, convenient battery replacement.

1600-2000 kg

Rated capacity

3000-4600 mm

Lift height

1540-1560 mm

Turning radius

≤70 dB(A)

Noise level

Key features

01	The AC drive system provides strong power, more precise control and smoother operation.
02	A ZF transmission delivers excellent performance with high efficiency and energy savings.
03	H-type mast channel steel with high bending performance improves overall mast strength.
04	A side-traction battery box design makes battery replacement easy, for convenient continuous operation.
05	The new mast structure with an offset operating handle gives better vision and guaranteed safety.
06	A compact body and small turning radius allow flexible operation in narrow spaces.
07	The battery box cover opens easily, making it convenient to add distilled water or electrolyte to the battery.
08	The body is easy to disassemble and assemble — unscrew the screws and remove the front cover to inspect, repair and replace key components.
09	Optional electromagnetic proportional valve control offers more comfortable operation.

Main technical parameters

Parameter	Unit	CDD16J-B	CDD20J-B
Characteristics
Drive unit		Electric
Operator type		Pedestrian
Rated capacity	Q (kg)	1600	2000
Load center distance	c (mm)	600
Axle centre to fork face	x (mm)	725
Wheelbase	y (mm)	1360	1385
Service weight (include battery)	kg	1075	1300
Wheels / tyres
Tyre type, driving/loading wheels		PU
Tyre size, driving wheels	Φ×w (mm)	Φ230×70
Tyre size, loading wheels	Φ×w (mm)	Φ80×70
Tyre size, caster wheels	Φ×w (mm)	Φ115×55
Wheels, driving/caster/loading (x=drive)		1x, 1/4
Track width, front, driving side	b10 (mm)	525
Track width, rear, loading side	b11 (mm)	385/465/510
Dimensions
Height of mast, lowered	h1 (mm)	2010	2090
Free lift	h2 (mm)	0	1566
Lift height	h3 (mm)	3000	4600
Height, mast extended	h4 (mm)	3461	5125
Height drawbar in driving position, min/max	h14 (mm)	800/1150
Lowered height	h13 (mm)	86
Overall length	l1 (mm)	1950	1975
Length to face of forks	l2 (mm)	800	825
Overall width	b1/b2 (mm)	800
Fork dimensions	s/e/l (mm)	60/186/1150
Distance between fork-arms	b5 (mm)	570/650/695
Ground clearance, center of wheelbase	m2 (mm)	26
Aisle width, pallets 1000×1200 crossways	Ast (mm)	2215	2235
Aisle width, pallets 800×1200 lengthways	Ast (mm)	2165	2185
Turning radius	Wa (mm)	1540	1560
Performance
Travel speed, laden/unladen	km/h	5/6	4.6/6
Lifting speed, laden/unladen	mm/s	110/170	100/170
Lowering speed, laden/unladen	mm/s	150/140	190/160
Max. gradeability, laden/unladen	%	6/10	6/15
Service brake type		Electromagnetic
Drive
Drive motor rating S2 60 min	kW	1.5
Lift motor rating at S3 15%	kW	3
Battery voltage/nominal capacity (K5)	V/Ah	24/210
Battery weight	kg	190
Other
Type of drive control		AC
Steering type		Mechanical
Sound pressure level at the driver’s ear	dB(A)	≤70
