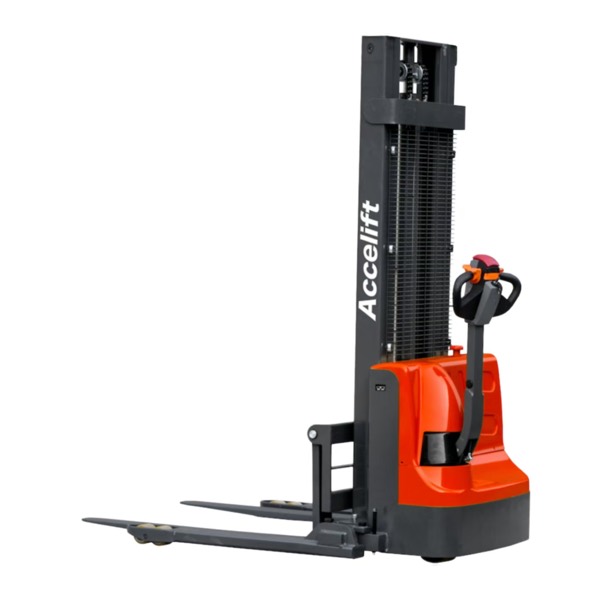

CL1230JY

Electric Stacker (Pedestrian)

An economical straddle-leg stacker with a permanent-magnet motor drive for high efficiency, reinforcing ribs between the masts for stability, and an adjustable support-leg width that suits a variety of working conditions.

1.2 t

Rated capacity

3000 mm

Lift height

1340 mm

Turning radius

≤70 dB(A)

Noise level

Key features

01	Reinforcing ribs between the internal and external masts keep the mast from tilting forward as the load rises, for better vehicle stability.
02	A permanent-magnet motor drive system is compact, lightweight, low-loss and highly efficient.
03	A German-imported waterproof micro-switch adapts to cold, humid, dusty and other harsh environments.
04	Key switches and a power meter are integrated on the operating handle, making operation easier.
05	An LED display cycles through green, yellow and red so the operator can read remaining battery power at a glance.
06	The operating handle uses a high-quality pneumatic spring that resets slowly and automatically once released.
07	Added speed control on the handle makes operation more accurate, with up/down buttons on both sides for greater convenience.
08	Even as an economical stacker, it still carries a high-power, high-performance lifting pump station for balanced, powerful cargo lifting.
09	The operating handle is extended for walking operation, following ergonomic principles for comfortable use.
10	A side-drive design reduces the operating aisle, gives a small turning radius and a better field of view, suiting work in narrow spaces.
11	A lighter overall vehicle consumes less power, for greater energy savings and a smaller environmental footprint.
12	The adjustable support-leg width adapts to a variety of working conditions and pallet sizes.

Main technical parameters

Parameter	Unit	CL1230JY
Characteristics
Power unit		Electric
Operation		Pedestrian
Rated traction weight	Q (t)	1.2
Load centre	c (mm)	600
Axle centre to fork face	x (mm)	698
Wheel base	y (mm)	1170
Service weight with battery	kg	630
Wheels / tyres
Wheels type		PU
Driving wheel size	Φ×w (mm)	Φ210×75
Bearing wheel size	Φ×w (mm)	Φ80×70
Additional wheels	Φ×w (mm)	Φ150×58
Wheels, front/rear (x=driven)		1x+1/4
Track width, drive end	b10 (mm)	465
Track width, load end	b11 (mm)	1024-1424
Dimensions
Height of mast, lowered	h1 (mm)	2080
Free lift	h2 (mm)	0
Lift	h3 (mm)	3000
Height of mast, extended	h4 (mm)	3549
Inside width between fixed legs	h11 (mm)	900-1300
Single fixed leg width	h12 (mm)	124
Overall height (with handle)	h14 (mm)	870/1200
Lowered fork height	h13 (mm)	65
Overall length	l1 (mm)	1784
Length to fork face	l2 (mm)	634
Overall width	b1/b2 (mm)	1148-1548
Fork dimensions	s/e/l (mm)	35/100/1150
Width of forks	b5 (mm)	210-850
Min. ground clearance	m2 (mm)	26
Aisle width, pallet 1000×1200 across forks	Ast (mm)	2210
Aisle width, pallet 800×1200 along forks	Ast (mm)	2180
Min. turning radius	Wa (mm)	1340
Performance
Travel speed, laden/unladen	km/h	4.0/4.2
Lifting speed, with/without load	mm/s	95/140
Lowering speed, with/without load	mm/s	100/90
Maximum climbing ability, with/without load	%	3/8
Service brake		Electromagnetic
Drive
Drive motor, 60 minute rating	kW	0.75
Lift motor rating at S3 15%	kW	2.2
Battery voltage/rated capacity	V/Ah	2×12/100
Battery weight	kg	2×27
Other
Type of drive control		DC
Noise level at operator’s ear	dB(A)	≤70
Type of steering		Mechanical
