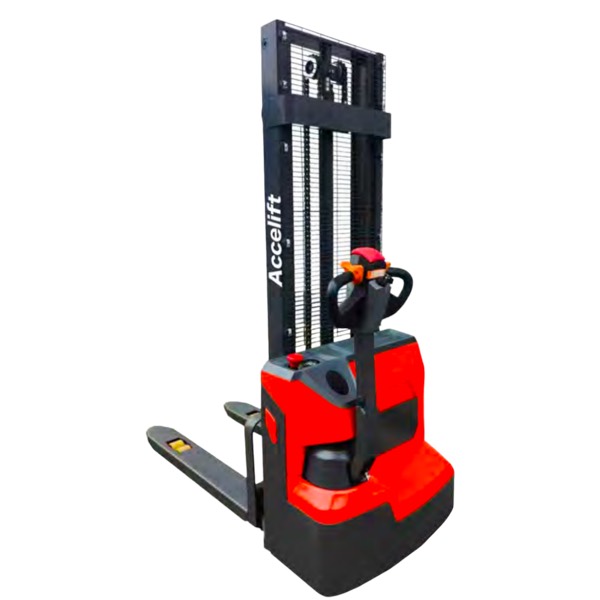

CDD1530J-L

Electric Stacker (Pedestrian)

A pedestrian stacker with a C+H channel steel mast for high strength, an explosion-proof hydraulic system, and a protective net design for a wider field of view and safer operation.

1500 kg

Rated capacity

3000 mm

Lift height

1525 mm

Turning radius

≤70 dB(A)

Noise level

Key features

01	A C-type + H-type channel steel mast delivers high strength for safer operation.
02	An explosion-proof hydraulic system prevents the mast from falling quickly if the oil pipe ruptures, for improved safety.
03	A protective net design gives a wider field of view for safer operation.
04	An integrated handle design puts all function buttons within easy reach, for a simple structure and easy operation.
05	The handle has an emergency reverse function to protect the driver from being squeezed, for safer operation.
06	A long handle on the pedestrian forklift makes operation convenient and labor-saving.
07	An emergency stop switch on the body cuts power in case of an accident, for improved safety.
08	A built-in charger and maintenance-free battery let you plug in and charge at any time, for greater convenience.
09	Proportional lifting with controllable lifting speed meets the needs of different working conditions.

Main technical parameters

Parameter	Unit	CDD1530J-L
Characteristics
Power unit		Electric
Operation		Pedestrian
Rated traction weight	Q (kg)	1500
Load centre	c (mm)	600
Axle centre to fork face	x (mm)	780
Wheel base	y (mm)	1223
Service weight with battery	kg	500
Wheels / tyres
Wheels type		PU
Driving wheel size	Φ×w (mm)	Φ210×75
Bearing wheel size	Φ×w (mm)	Φ80×70
Additional wheels	Φ×w (mm)	Φ115×55
Wheels, front/rear (x=driven)		1x, 1/4
Track width, drive end	b10 (mm)	530
Track width, load end	b11 (mm)	410/535
Dimensions
Height of mast, lowered	h1 (mm)	1995
Lift	h3 (mm)	3000
Height of mast, extended	h4 (mm)	3452
Overall height (with handle)	h14 (mm)	870/1130
Lowered height	h13 (mm)	86
Overall length	l1 (mm)	1850
Length to fork face	l2 (mm)	620
Overall width	b1/b2 (mm)	800
Fork dimensions	s/e/l (mm)	60/160/1150
Width of forks	b5 (mm)	570/695
Min. ground clearance	m2 (mm)	25
Aisle width, pallet 1000×1200 across forks	Ast (mm)	2365
Aisle width, pallet 800×1200 along forks	Ast (mm)	2305
Min. turning radius	Wa (mm)	1525
Performance
Travel speed, laden/unladen	km/h	4.0/4.2
Lifting speed, with/without load	mm/s	84/145
Lowering speed, with/without load	mm/s	115/100
Maximum climbing ability, with/without load	%	3/10
Service brake		Electromagnetic
Drive
Drive motor, 60 minute rating	kW	0.75
Lift motor rating at S3 15%	kW	2.2
Battery voltage/rated capacity	V/Ah	2×12/100
Battery weight	kg	2×27
Other
Type of drive control		DC
Noise level at operator’s ear	dB(A)	≤70
Type of steering		Mechanical
