CL1516E / CL1526E / CL1532E / CL1536E

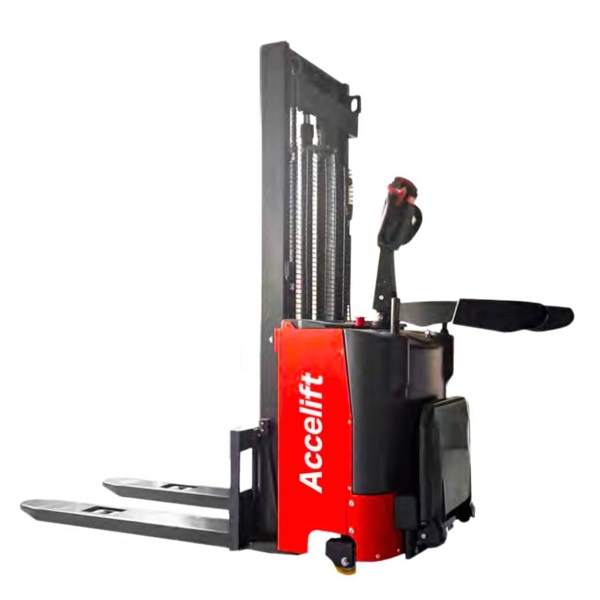

Electric Stacker (Standing On)

A compact standing-on stacker series with a permanent-magnet drive system, a single-chain narrow mast for wide operator visibility, and a built-in charger, suited to narrow small warehouses.

1.5 t

Rated capacity

1600-3600 mm

Lift height

1570 mm

Turning radius

≤70 dB(A)

Noise level

Key features

01	A permanent-magnet motor drive system is compact, light and highly efficient, with low losses.
02	A built-in charger adds convenience for customers.
03	A single chain and narrow mast width give the operator wide visibility, ensuring safe operation.
04	A high-power, reliable lifting pump station keeps cargo lifting balanced and powerful.
05	Maintenance-free batteries can be swapped without extra tools, for greater convenience.
06	A compact overall body and narrower aisle width suit all kinds of small, narrow warehouses.

Main technical parameters

Parameter	Unit	CL1516E	CL1526E	CL1532E	CL1536E
Characteristics
Power unit		Electric
Operation		Standing on
Rated traction weight	Q (t)	1.5
Load centre	c (mm)	600
Axle centre to fork face	x (mm)	695
Wheel base	y (mm)	1148
Service weight with battery	kg	620	685	715	735
Wheels / tyres
Wheels type		PU
Driving wheel size	Φ×w (mm)	Φ210×75
Bearing wheel size	Φ×w (mm)	Φ80×70
Additional wheels	Φ×w (mm)	Φ115×55
Wheels, front/rear (x=driven)		1x,2/4
Track width, drive end	b10 (mm)	646
Track width, load end	b11 (mm)	410/535
Dimensions
Height of mast, lowered	h1 (mm)	2006	1786	2086	2286
Lift	h3 (mm)	1600	2600	3200	3600
Height of mast, extended	h4 (mm)	2015	3043	3643	4043
Overall height (with handle)	h14 (mm)	1040/1415
Lowered height	h13 (mm)	86
Overall length	l1 (mm)	1930
Length to fork face	l2 (mm)	780
Overall width	b1/b2 (mm)	808
Fork dimensions	s/e/l (mm)	60/160/1150
Width of forks	b5 (mm)	570/695
Min. ground clearance	m2 (mm)	26
Aisle width, pallet 1000×1200 across forks	Ast (mm)	2410
Aisle width, pallet 800×1200 along forks	Ast (mm)	2430
Min. turning radius	Wa (mm)	1570
Performance
Travel speed, laden/unladen	km/h	4.2/4.5
Lifting speed, with/without load	mm/s	85/140
Lowering speed, with/without load	mm/s	110/90
Maximum climbing ability, with/without load	%	3/6
Service brake		Electromagnetic
Drive
Drive motor, 60 minute rating	kW	0.75
Lift motor rating at S3 15%	kW	2.2
Battery voltage/rated capacity	V/Ah	2×12/120
Battery weight	kg	2×35
Other
Type of drive control		DC
Noise level at operator’s ear	dB(A)	≤70
