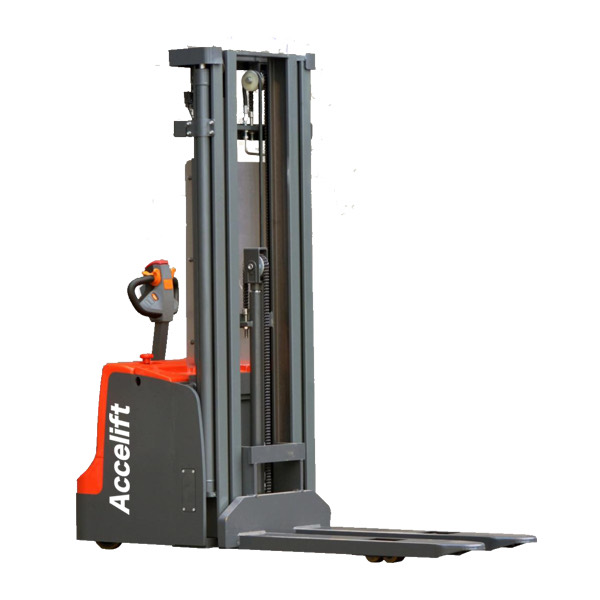

CL2030GF

Electric Stacker (Pedestrian)

A powerful AC-driven pedestrian stacker with a ZF Friedrichshafen transmission, a high-power MOSFET drive for stepless speed control, and a side-drive design for narrow-space handling.

2000 kg

Rated capacity

3000 mm

Lift height

1550 mm

Turning radius

≤70 dB(A)

Noise level

Key features

01	A powerful AC motor and ZF Friedrichshafen transmission provide superior acceleration performance, improving work efficiency and saving energy.
02	A high-power MOSFET drive is high-frequency, efficient and quiet, with stepless speed regulation, reverse braking, and improved temperature protection and compensation for stable output.
03	A key switch, electric meter, horn, up/down buttons and turtle-speed switch are all integrated into the handle for easy operation.
04	The operating handle is extended for walking operation, following ergonomic principles for comfortable use.
05	A side-drive design reduces the operating aisle, gives a small turning radius and a better field of view, suiting work in narrow spaces.

Main technical parameters

Parameter	Unit	CL2030GF
Characteristics
Power unit		Electric
Operation		Pedestrian
Rated traction weight	Q (kg)	2000
Load centre	c (mm)	600
Axle centre to fork face	x (mm)	672
Wheel base	y (mm)	1384
Service weight with battery	kg	966
Wheels / tyres
Wheels type		PU
Driving wheel size	Φ×w (mm)	Φ230×75
Bearing wheel size	Φ×w (mm)	Φ80×70
Additional wheels	Φ×w (mm)	Φ150×58
Wheels, front/rear (x=driven)		1x+1/4
Track width, drive end	b10 (mm)	526
Track width, load end	b11 (mm)	390/515
Dimensions
Free lift	h1 (mm)	1991
Lift	h2 (mm)	166
Height of mast, extended	h3 (mm)	3000
Height of seat/stand-on platform	h4 (mm)	3408
Overall height (with handle)	h14 (mm)	870/1200
Lowered fork height	h13 (mm)	86
Overall length	l1 (mm)	2022
Length to fork face	l2 (mm)	872
Overall width	b1/b2 (mm)	795
Fork dimensions	s/e/l (mm)	60/180/1150
Width of forks	b5 (mm)	570/695
Min. ground clearance	m2 (mm)	26
Aisle width, pallet 1000×1200 across forks	Ast (mm)	2435
Aisle width, pallet 800×1200 along forks	Ast (mm)	2412
Min. turning radius	Wa (mm)	1550
Performance
Travel speed, laden/unladen	km/h	4.0/4.2
Lifting speed, with/without load	mm/s	96/155
Lowering speed, with/without load	mm/s	94/109
Maximum climbing ability, with/without load	%	4/10
Service brake		Electromagnetic
Drive
Drive motor, 60 minute rating	kW	1.5
Lift motor rating at S3 15%	kW	3.0
Battery voltage/rated capacity	V/Ah	24/210
Battery weight	kg	195
Other
Type of drive control		AC
Noise level at operator’s ear	dB(A)	≤70
Type of steering		Mechanical
