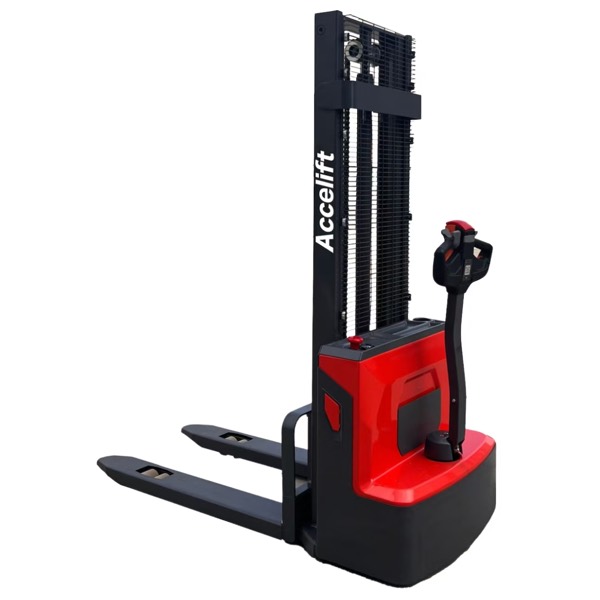

CDD15J-M

Electric Stacker (Pedestrian)

A pedestrian stacker with a C+H channel steel mast for excellent bending performance, an explosion-proof hydraulic system, and a mesh mast cover that separates people and goods while preserving visibility.

1500 kg

Rated capacity

3000 mm

Lift height

1405 mm

Turning radius

≤70 dB(A)

Noise level

Key features

01	A C-type + H-type channel steel mast delivers excellent bending performance.
02	An explosion-proof hydraulic system prevents the frame from dropping quickly if the oil pipe breaks, improving safety.
03	An iron mesh mast cover separates people from goods while preserving visibility, protecting the operator.
04	The handle has an emergency reverse function to prevent the driver from being crushed.
05	A turtle-speed button on the handle meets different speed needs across working conditions.
06	An emergency stop switch can power off the vehicle in case of an accident.
07	A built-in charger and maintenance-free battery make charging easy.
08	Separated masks make maintenance easy — unscrew the corresponding mask to access the main components.

Main technical parameters

Parameter	Unit	CDD15J-M
Characteristics
Power unit		Electric
Operation		Pedestrian
Rated capacity	Q (kg)	1500
Load center distance	c (mm)	600
Axle centre to fork face	x (mm)	780
Wheelbase	y (mm)	1224
Service weight (include battery)	kg	500
Wheels / tyres
Tyre type, driving/loading wheels		PU
Tyre size, driving wheels	Φ×w (mm)	Φ210×75
Tyre size, loading wheels	Φ×w (mm)	Φ80×70
Tyre size, caster wheels	Φ×w (mm)	Φ115×55
Wheels, driving/caster/loading (x=drive)		1x, 1/4
Track width, front, driving side	b10 (mm)	538
Track width, rear, loading side	b11 (mm)	410/535
Dimensions
Lift height	h3 (mm)	3000
Height drawbar in driving position, min/max	h14 (mm)	810/1180
Lowered height	h13 (mm)	86
Overall length	l1 (mm)	1770
Length to face of forks	l2 (mm)	620
Overall width	b1/b2 (mm)	800
Fork dimensions	s/e/l (mm)	60/160/1150
Distance between fork-arms	b5 (mm)	570/695
Ground clearance, center of wheelbase	m2 (mm)	26
Aisle width, pallet 1000×1200 crossways	Ast (mm)	2245
Aisle width, pallet 800×1200 lengthways	Ast (mm)	2185
Turning radius	Wa (mm)	1405
Performance
Travel speed, laden/unladen	km/h	4.0/4.2
Lifting speed, laden/unladen	mm/s	85/140
Lowering speed, laden/unladen	mm/s	110/90
Max. gradeability, laden/unladen	%	3/10
Service brake type		Electromagnetic
Drive
Drive motor rating S2 60 min	kW	0.75
Lift motor rating at S3 15%	kW	2.2
Max. allowed battery size	mm	260×169×215
Battery voltage/nominal capacity (K5)	V/Ah	2×12/100
Battery weight	kg	2×27
Other
Type of drive control		DC
Steering type		Mechanical
Sound pressure level at the driver’s ear	dB(A)	≤70
