Electric Stacker (Pedestrian, Straddle Legs) CL13GHY

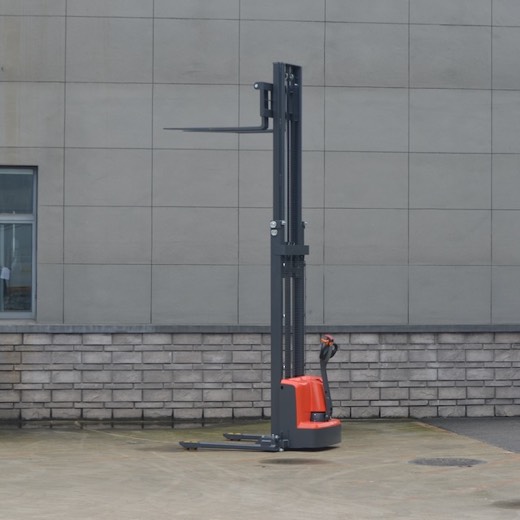

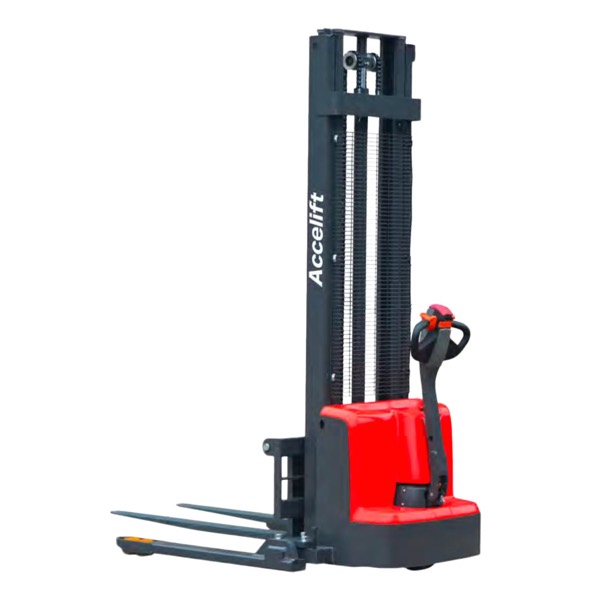

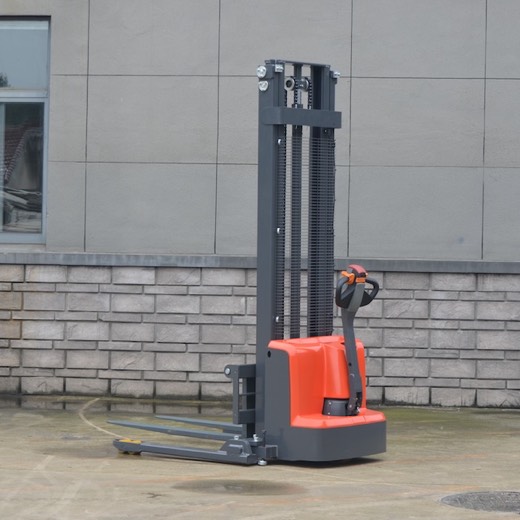

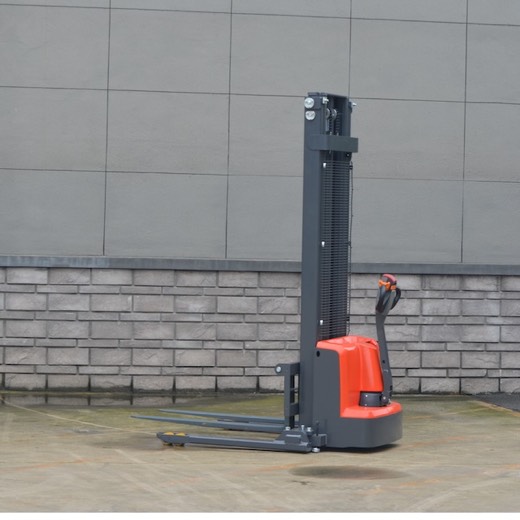

Electric Stacker (Pedestrian, Straddle Legs) CL13GHY
- Rated capacity
- 1.3 t
- Lift height
- 1600-3500 mm
- Turning radius
- 1370 mm
- Noise level
- ≤70 dB(A)
Ask for a price, lead time, battery options or the full spec sheet. Factory-direct, OEM branding available.
Description
Electric Stacker · Pedestrian, with Straddle
CL1316GHY / CL1320GHY / CL1325GHY / CL1330GHY / CL1335GHY
Electric Stacker (Pedestrian, with Straddle)
A straddle-leg pedestrian stacker with reinforcing ribs between the masts for stability under load, a waterproof micro-power switch for harsh environments, and an adjustable wide-leg design that fits a variety of pallet sizes.
|
1.3 t
Rated capacity
|
1600-3500 mm
Lift height
|
1370 mm
Turning radius
|
≤70 dB(A)
Noise level
|
Key features
| 01 | Reinforcing ribs between the internal and external masts keep the mast from tilting forward as the load rises, for better vehicle stability. |
| 02 | A waterproof micro-power switch adapts to cold, humid, dusty and other harsh environments. |
| 03 | A key switch, electric meter, up/down buttons and turtle-speed switch are all integrated into the handle for easy operation. |
| 04 | The handle uses a high-quality pneumatic spring that resets slowly and automatically once released. |
| 05 | The operating handle is extended for walking operation, following ergonomic principles for comfortable use. |
| 06 | A center-mounted drive effectively prevents the driving wheel from slipping. |
| 07 | Maintenance-free batteries don’t need special tools to replace, for greater convenience. |
| 08 | An adjustable wide-leg design suits a variety of pallet sizes, for greater stability. |
Main technical parameters
| Parameter | Unit | CL1316GHY | CL1320GHY | CL1325GHY | CL1330GHY | CL1335GHY |
| Characteristics | ||||||
| Power unit | Electric | |||||
| Operation | Pedestrian | |||||
| Rated traction weight | Q (t) | 1.3 | ||||
| Load centre | c (mm) | 600 | ||||
| Axle centre to fork face | x (mm) | 698 | ||||
| Wheel base | y (mm) | 1202 | ||||
| Service weight with battery | kg | 618 | 634 | 646 | 658 | 670 |
| Wheels / tyres | ||||||
| Wheels type | PU | |||||
| Driving wheel size | Φ×w (mm) | Φ210×75 | ||||
| Bearing wheel size | Φ×w (mm) | Φ80×70 | ||||
| Wheels, front/rear (x=driven) | 1x+0/4 | |||||
| Track width, load end | b11 (mm) | 1024-1424 | ||||
| Dimensions | ||||||
| Height of mast, lowered | h1 (mm) | 2099 | 1580 | 1830 | 2080 | 2330 |
| Lift | h3 (mm) | 1600 | 2000 | 2500 | 3000 | 3500 |
| Height of mast, extended | h4 (mm) | 2099 | 2549 | 3049 | 3549 | 4049 |
| Overall height (with handle) | h14 (mm) | 680/1165 | ||||
| Lowered height | h13 (mm) | 65 | ||||
| Overall length | l1 (mm) | 1818 | ||||
| Length to fork face | l2 (mm) | 668 | ||||
| Overall width | b1/b2 (mm) | 1148-1548 | ||||
| Fork dimensions | s/e/l (mm) | 35/100/1150 | ||||
| Width of forks | b5 (mm) | 210-850 | ||||
| Min. ground clearance | m2 (mm) | 26 | ||||
| Aisle width, pallet 1000×1200 across forks | Ast (mm) | 2240 | ||||
| Aisle width, pallet 800×1200 along forks | Ast (mm) | 2210 | ||||
| Min. turning radius | Wa (mm) | 1370 | ||||
| Performance | ||||||
| Travel speed, laden/unladen | km/h | 4.0/4.2 | ||||
| Lifting speed, with/without load | mm/s | 95/140 | ||||
| Lowering speed, with/without load | mm/s | 100/90 | ||||
| Maximum climbing ability, with/without load | % | 3/8 | ||||
| Service brake | Electromagnetic | |||||
| Drive | ||||||
| Drive motor, 60 minute rating | kW | 0.75 | ||||
| Lift motor rating at S3 15% | kW | 2.2 | ||||
| Battery voltage/rated capacity | V/Ah | 2×12/100 | ||||
| Battery weight | kg | 2×27 | ||||
| Other | ||||||
| Type of drive control | DC | |||||
| Noise level at operator’s ear | dB(A) | ≤70 | ||||
| Type of steering | Mechanical | |||||
