CBD15J-Li4 / CBD20J-Li4

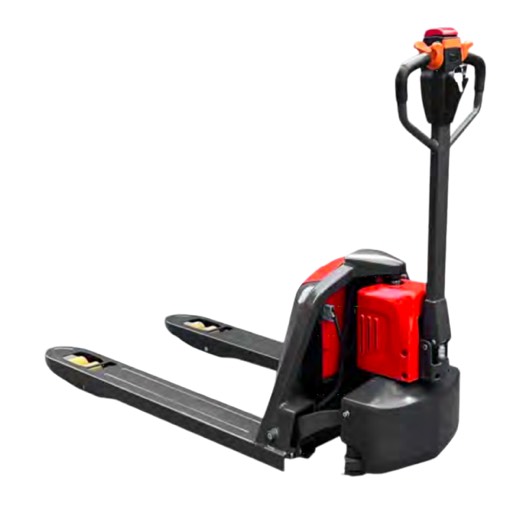

Electric Pallet Truck (Pedestrian)

A compact lithium-battery pallet truck with a quick-disassembly battery pack, built for easy operation in narrow spaces with a lightweight frame and a sturdy protective cover.

1500/2000 kg

Rated capacity

200 mm

Lift height

1355 mm

Turning radius

≤70 dB(A)

Noise level

Key features

01	Compact structure and a small turning radius suit work in narrow spaces.
02	A quick-disassembly lithium battery can be swapped out fast to meet long-shift requirements.
03	A cap-type battery box is designed to protect against rain.
04	An outer ring-type cable routing layout effectively prevents cable wear and breakage.
05	An optional multi-specification external charger suits different working conditions.
06	A lightweight frame structure keeps the body weight down.
07	Standard upright-walking operation suits small-space work.
08	A sturdy metal cover protects the motor and wheels while shielding the operator’s feet for added safety.
09	An integrated hydraulic system with a lift-limit reflux function reduces electrical components and increases reliability.
10	A mechanical spring handle return adds further reliability.

Main technical parameters

Parameter	Unit	CBD15J-Li4	CBD20J-Li4
Characteristics
Drive unit		Electric
Operator type		Pedestrian
Rated capacity	Q (kg)	1500	2000
Load center distance	c (mm)	600
Axle centre to fork face	x (mm)	945
Wheelbase	y (mm)	1192
Service weight (incl. battery)	kg	121/122/124	127/128/130
Wheels / tyres
Tyre type		PU
Driving wheel size	mm	Φ210×75
Loading wheel size	mm	Φ80×60
Caster wheel size	mm	Φ50×30
Wheels, driving/caster/loading	mm	1x,2/4
Track width, rear, loading side	b11 (mm)	400/535
Dimensions
Lift height	h3 (mm)	200
Drawbar height, min/max	h14 (mm)	735/1155
Lowered height	h13 (mm)	85
Overall length	l1 (mm)	1550
Length to face of forks	l2 (mm)	400
Overall width	b1/b2 (mm)	550/685
Fork dimensions	s/e/l (mm)	55/150/1150
Distance between fork-arms	b5 (mm)	550/685
Ground clearance, center of wheelbase	m2 (mm)	30
Aisle width, pallet 1000×1200 crossways	Ast (mm)	1760
Aisle width, pallet 800×1200 lengthways	Ast (mm)	1810
Turning radius	Wa (mm)	1355
Performance
Travel speed, laden/unladen	km/h	4.2/4.5
Lifting speed, laden/unladen	m/s	0.018/0.024	0.025/0.046
Lowering speed, laden/unladen	m/s	0.049/0.032	0.055/0.035
Max. gradeability, laden/unladen	%	6/15
Service brake type		Electromagnetic
Drive
Drive motor rating, S2 60 min	kW	0.75	1.0
Lift motor rating at S3 15%	kW	0.5	0.8
Battery voltage/nominal capacity	V/Ah	24/20, 24/30, 24/40	48/10, 48/15, 48/20
Battery weight	kg	5/6.5/8	5/6.5/8
Other
Type of drive control		DC
Steering type		Mechanical
Sound pressure level at the driver’s ear	dB(A)	≤70
