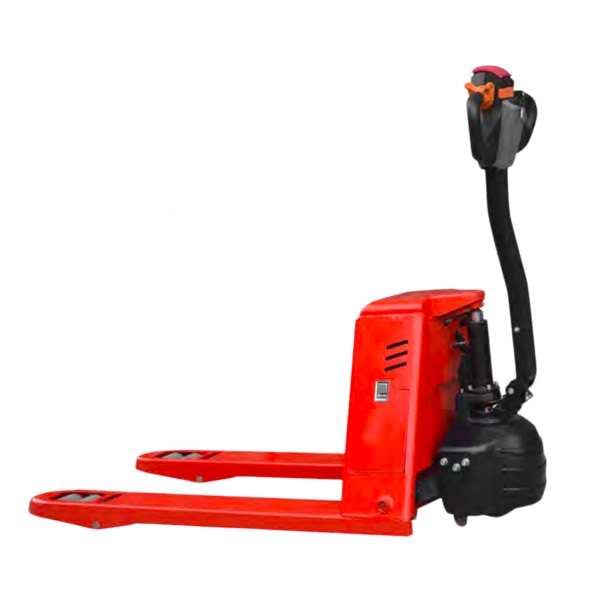

SL30S7

Electric Pallet Truck (Pedestrian)

A compact, small-turning-radius 3-tonne pallet truck for handling work in narrow spaces, with a powerful 48V DC drive unit and dual electromagnetic and motor braking for driving safety.

3000 kg

Rated capacity

200 mm

Lift height

1422 mm

Turning radius

≤70 dB(A)

Noise level

Key features

01	A small overall size and turning radius let it carry out handling work in a narrow space.
02	An easily removable battery baffle makes battery replacement quick, extending service time and efficiency.
03	A strong metal cover protects the motor and wheels, and also reliably protects the operator’s feet for improved safety.
04	A rear anti-collision switch and dual electromagnetic and motor braking give full consideration to driving safety.
05	A built-in charger adds convenience for customers.
06	An efficient 48V DC drive unit is powerful and paired with an electromagnetic braking system for improved vehicle safety.
07	The operating handle uses a high-quality pneumatic spring that resets slowly and automatically once released, for lasting durability.
08	A turtle-speed switch on the handle gives more accurate speed control.

Main technical parameters

Parameter	Unit	SL30S7
Characteristics
Power unit		Electric
Operation		Pedestrian
Rated traction weight	Q (kg)	3000
Load centre	c (mm)	600
Axle centre to fork face	x (mm)	962
Wheel base	y (mm)	1269
Weights
Service weight with battery	kg	230
Wheels / tyres
Wheels type		PU
Driving wheel size	Φ×w (mm)	Φ210×70
Bearing wheel size	Φ×w (mm)	Φ80×70
Wheels, front/rear (x=driven)		1x/4
Track width	b11 (mm)	390/525
Dimensions
Lift	h3 (mm)	200
Overall height (with handle)	h14 (mm)	725/1145
Lowered height	h13 (mm)	85
Overall length	l1 (mm)	1610
Overall width	b1/b2 (mm)	550/685
Fork dimensions	s/e/l (mm)	50/160/1150
Width of forks	b5 (mm)	550/685
Min. ground clearance	m2 (mm)	35
Aisle width, pallet 1000×1200 across forks	Ast (mm)	1810
Aisle width, pallet 800×1200 along forks	Ast (mm)	1860
Min. turning radius	Wa (mm)	1422
Performance
Travel speed, laden/unladen	km/h	4.2/4.5
Maximum climbing ability, with/without load	%	6/15
Service brake		Electromagnetic
Drive
Drive motor, 60 minute rating	kW	1.2
Lift motor rating at S3 15%	kW	0.8
Battery, per DIN 43531/35/36 A,B,C		No
Battery voltage/rated capacity	V/Ah	4×12/25
Battery weight	kg	28.5
Other
Type of drive control		DC
Noise level at operator’s ear	dB(A)	≤70
Type of steering		Mechanical
