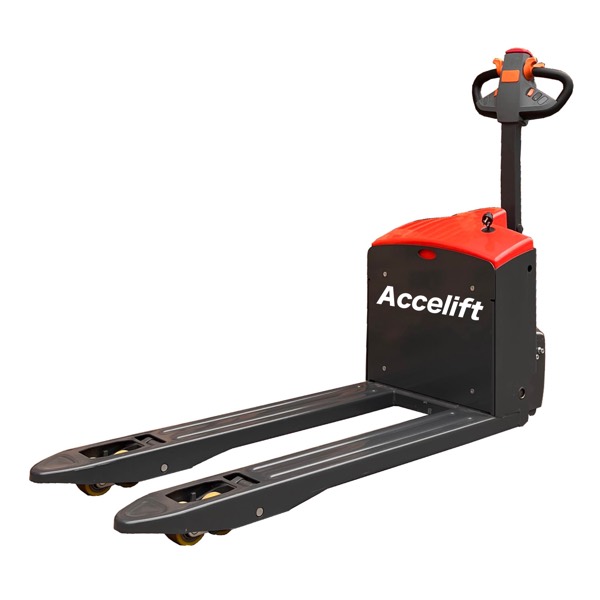

SL15GI

Electric Pallet Truck (Pedestrian)

A compact pallet truck with a small turning radius for narrow spaces, entry and exit rollers for easy access to double-sided trays, and a robust metal shield protecting the drive system and operator’s feet.

1500 kg

Rated capacity

200 mm

Lift height

1425 mm

Turning radius

≤70 dB(A)

Noise level

Key features

01	A small overall size and turning radius let it work in narrow spaces.
02	Included entry and exit rollers let the vehicle easily enter double-sided trays.
03	A robust metal shield protects the motor and wheels while reliably protecting the operator’s feet from injury.
04	A built-in charger provides convenience for customers.
05	Imported multi-function control systems make operation and maintenance simpler and more convenient, improving vehicle stability.
06	An improved circuit function layout reduces the fault rate.

Main technical parameters

Parameter	Unit	SL15GI
Characteristics
Power unit		Electric
Operation		Pedestrian
Rated traction weight	Q (kg)	1500
Load centre	c (mm)	600
Axle centre to fork face	x (mm)	944
Wheel base	y (mm)	1262
Service weight with battery	kg	200
Wheels / tyres
Wheels type		PU
Driving wheel size	Φ×w (mm)	Φ210×75
Bearing wheel size	Φ×w (mm)	Φ80×60
Wheels, front/rear (x=driven)		4/1x
Track width	b11 (mm)	410/535
Dimensions
Lift	h3 (mm)	200
Overall height (with handle)	h14 (mm)	740/1135
Lowered fork height	h13 (mm)	85
Overall length	l1 (mm)	1628
Length to fork face	l2 (mm)	478
Overall width	b1/b2 (mm)	560/685
Fork dimensions	s/e/l (mm)	55/150/1150
Width of forks	b5 (mm)	560/685
Min. ground clearance	m2 (mm)	30
Aisle width, pallet 1000×1200 across forks	Ast (mm)	1831
Aisle width, pallet 800×1200 along forks	Ast (mm)	1881
Min. turning radius	Wa (mm)	1425
Performance
Travel speed, laden/unladen	km/h	4.2/4.5
Lifting speed, with/without load	mm/s	32/43
Lowering speed, with/without load	mm/s	48/40
Maximum climbing ability, with/without load	%	6/15
Service brake		Electromagnetic
Drive
Drive motor, 60 minute rating	kW	0.75
Lift motor rating at S3 15%	kW	0.8
Battery voltage/rated capacity	V/Ah	2×12/75
Battery weight	kg	40
Other
Type of drive control		DC
Noise level at operator’s ear	dB(A)	≤70
Type of steering		Mechanical
