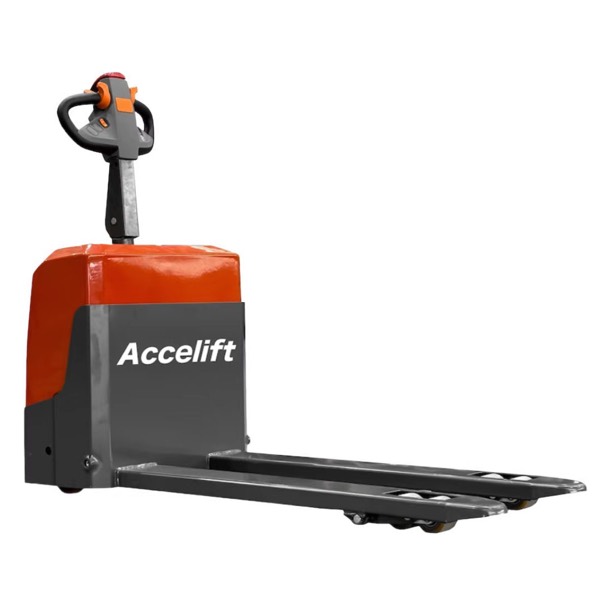

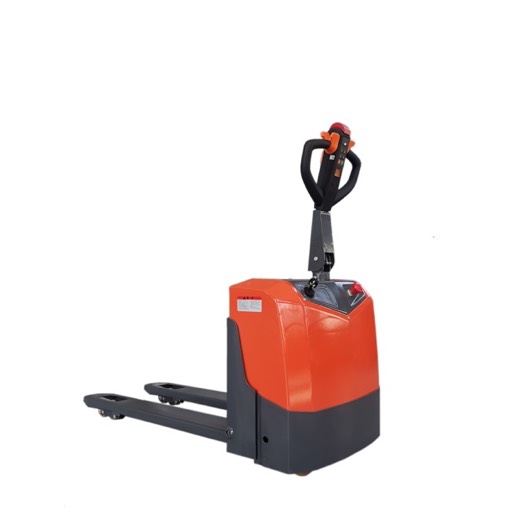

SL15S5 / SL20S5

Electric Pallet Truck (Pedestrian)

A compact pallet truck with a small turning radius for narrow spaces, built with an upper horizontal drive-wheel structure for better traction and easier motor and wheel servicing.

1500/2000 kg

Rated capacity

200 mm

Lift height

1315 mm

Turning radius

≤70 dB(A)

Noise level

Key features

01	A small overall size and turning radius let it work in narrow spaces.
02	An upper horizontal driving-wheel structure improves drivability and makes the wheel and motor easier to replace.
03	A strong metal cover protects the motor and wheels, and also reliably protects the operator’s feet for improved safety.
04	A reverse anti-collision switch and dual electromagnetic and motor braking give full consideration to driving safety.
05	A large-capacity, maintenance-free battery with a built-in charger adds convenience for customers.
06	The integrated handle features a password lock, CAN communication, upright-walking operation, and an LCD display of remaining battery power.
07	Balance wheels on both sides give the vehicle higher stability and help protect the floor surface.

Main technical parameters

Parameter	Unit	SL15S5	SL20S5
Characteristics
Power unit		Electric
Operation		Pedestrian
Rated traction weight	Q (kg)	1500	2000
Load centre	c (mm)	600
Axle centre to fork face	x (mm)	931
Wheel base	y (mm)	1158
Service weight with battery	kg	245	265
Wheels / tyres
Wheels type		PU
Driving wheel size	Φ×w (mm)	Φ195×70
Bearing wheel size	Φ×w (mm)	Φ80×70
Additional wheels	Φ×w (mm)	Φ100×40
Wheels, front/rear (x=driven)		1x+2/4
Track width	b11 (mm)	390/525
Dimensions
Lift	h3 (mm)	200
Overall height (with handle)	h14 (mm)	865/1170
Fork height, lowered	h13 (mm)	85
Overall length	l1 (mm)	1532
Length to fork face	l2 (mm)	382
Overall width	b1/b2 (mm)	710
Fork dimensions	s/e/l (mm)	50/160/1150
Width of forks	b5 (mm)	550/685
Min. ground clearance	m2 (mm)	35
Aisle width, pallet 1000×1200 across forks	Ast (mm)	1735
Aisle width, pallet 800×1200 along forks	Ast (mm)	1785
Min. turning radius	Wa (mm)	1315
Performance
Travel speed, laden/unladen	km/h	4.2/4.5
Lifting speed, with/without load	mm/s	35/38
Lowering speed, with/without load	mm/s	60/25
Maximum climbing ability, with/without load	%	5/10
Service brake		Electromagnetic
Drive
Drive motor, 60 minute rating	kW	0.75
Lift motor rating at S3 15%	kW	0.8
Battery voltage/rated capacity	V/Ah	2×12/75	2×12/100
Battery weight	kg	40	54
Other
Type of drive control		DC
Noise level at operator’s ear	dB(A)	≤70
Type of steering		Mechanical
