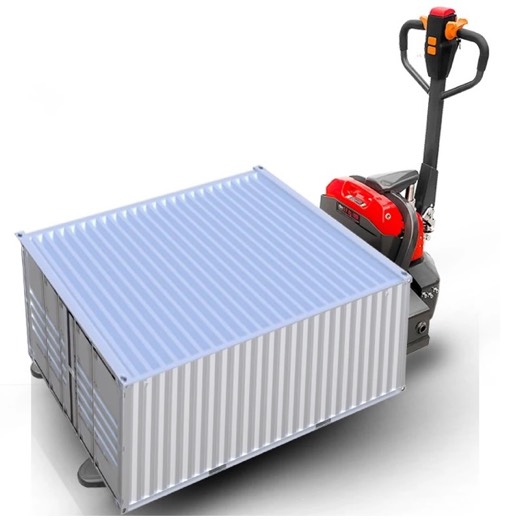

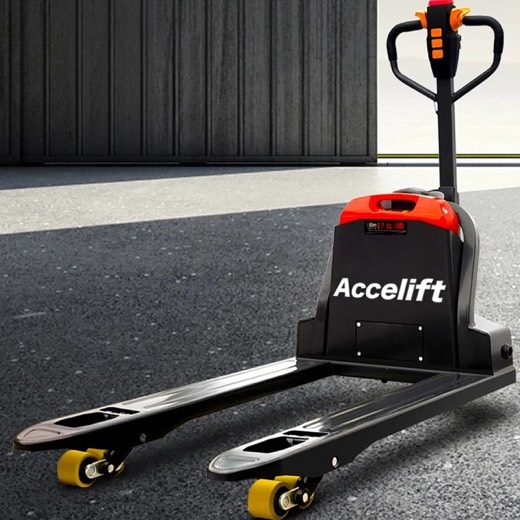

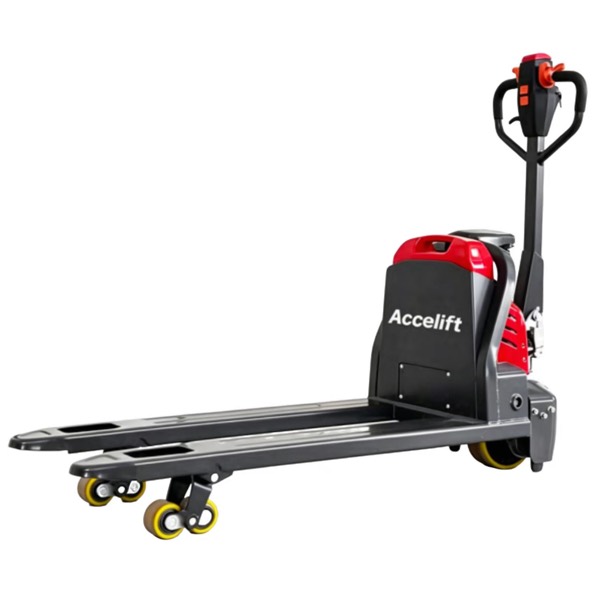

SL15L3 / SL18L3 / SL20L3

Electric Pallet Truck (Pedestrian)

A simple, dexterous and reliable pallet truck with a compact structure, small turning radius and light weight for use in freight elevators, built with an open, easy-to-service design.

1500-2000 kg

Rated capacity

200 mm

Lift height

1398 mm

Turning radius

≤70 dB(A)

Noise level

Key features

01	Simple, dexterous and reliable to operate, with a compact structure, small turning radius and light weight for use in freight elevators; low noise and high performance.
02	The structural design keeps the vehicle light while maintaining a strong skeleton.
03	An open design makes the battery easy to remove and replace; when one battery runs out, an optional second set can be swapped in quickly to extend working hours.
04	A reverse anti-collision switch and dual electromagnetic and motor braking give full consideration to driving safety.
05	Electric lifting on the handle saves operator effort, and a manual descent lets the operator adjust lowering speed by pulling the handle for improved safety.
06	A sturdy metal cover protects the motor and wheels, and also reliably protects the operator’s feet for improved safety.

Main technical parameters

Parameter	Unit	SL15L3	SL18L3	SL20L3
Characteristics
Power unit		Electric
Operation		Pedestrian
Rated traction weight	Q (kg)	1500	1800	2000
Load centre	c (mm)	600
Axle centre to fork face	x (mm)	944
Wheel base	y (mm)	1243
Service weight with battery	kg	129	135	146
Wheels / tyres
Wheels type		PU
Driving wheel size	Φ×w (mm)	Φ210×75
Bearing wheel size	Φ×w (mm)	Φ80×60
Wheels, front/rear (x=driven)		1x/4
Track width	b11 (mm)	400/535
Dimensions
Lift	h3 (mm)	200
Overall height (with handle)	h14 (mm)	740/1160
Lowered height	h13 (mm)	85
Overall length	l1 (mm)	1603
Length to fork face	l2 (mm)	453
Overall width	b1/b2 (mm)	550/685
Fork dimensions	s/e/l (mm)	55/150/1150
Width of forks	b5 (mm)	550/685
Min. ground clearance	m2 (mm)	30
Aisle width, pallet 1000×1200 across forks	Ast (mm)	1804
Aisle width, pallet 800×1200 along forks	Ast (mm)	1854
Min. turning radius	Wa (mm)	1398
Performance
Travel speed, laden/unladen	km/h	4.2/4.5
Maximum climbing ability, with/without load	%	6/15
Service brake		Electromagnetic
Drive
Drive motor, 60 minute rating	kW	0.75
Lift motor rating at S3 15%	kW	0.5	0.5	0.8
Battery voltage/rated capacity	V/Ah	24/20, 24/30, 24/40, 24/60	24/20, 24/30, 24/40, 24/60	48/10, 48/15, 48/20, 48/30
Battery weight	kg	6 / 8.2 / 10.2 / 13.2
Other
Type of drive control		DC
Noise level at operator’s ear	dB(A)	≤70
Type of steering		Mechanical
