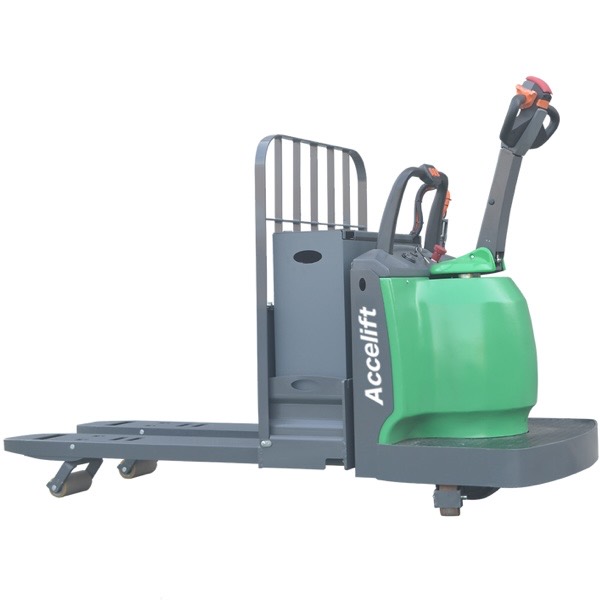

SL30R

Electric Pallet Truck

A stable, high-capacity pallet truck with a vertical AC drive system and electronic power steering, built with a side stand-on platform and safety handrail for comfortable pedestrian operation.

3 t

Rated capacity

233 mm

Lift height

2066 mm

Turning radius

≤70 dB(A)

Noise level

Key features

01	A stable, well-balanced design with a side stand-on platform, a safety handrail, and a wide pedal for operator comfort.
02	A vertical AC drive system delivers greater energy and braking torque, for stronger, more efficient power and better acceleration, with a small, maintenance-free, easy-cooling design and long service life.
03	A high-power MOSFET drive gives quiet, high-frequency, high-efficiency operation, with stepless speed regulation, reverse braking, and thermal protection for stable output.
04	A standard lift-limit function automatically cuts uplink power once the fork reaches the top, for a smooth stop and a longer hydraulic system life.
05	A standard emergency stop switch cuts power immediately in a hazardous situation, protecting both operator and equipment.
06	Electronic power steering gives sharp response and a comfortable, effortless handle, light at low speed and stable at high speed, for a smoother, more precise drive.
07	Side-mounted battery access makes swapping the battery quick and convenient.

Main technical parameters

Parameter	Unit	SL30R
Characteristics
Power unit		Electric
Operation		Pedestrian
Rated traction weight	Q (t)	3
Load centre	c (mm)	600
Axle centre to fork face	x (mm)	1036
Wheel base	y (mm)	1650
Service weight with battery	kg	790
Wheels / tyres
Wheels type		PU
Driving wheel size	Φ×w (mm)	Φ250×75
Bearing wheel size	Φ×w (mm)	Φ82×165
Additional wheels	Φ×w (mm)	Φ124×60
Wheels, front/rear (x=driven)		1x+2/2
Track width, drive end	b10 (mm)	640
Track width, load end	b11 (mm)	455
Dimensions
Lift	h3 (mm)	233
Overall height (with handle)	h14 (mm)	930/1340
Lowered height	h13 (mm)	83
Overall length	l1 (mm)	2250
Length to fork face	l2 (mm)	1030
Overall width	b1/b2 (mm)	910
Fork dimensions	s/e/l (mm)	60/230/1220
Width of forks	b5 (mm)	685
Min. ground clearance	m2 (mm)	23
Aisle width, pallet 1000×1200 across forks	Ast (mm)	2450
Aisle width, pallet 800×1200 along forks	Ast (mm)	2550
Min. turning radius	Wa (mm)	2066
Performance
Travel speed, laden/unladen	km/h	7.5/8
Lifting speed, with/without load	mm/s	42/65
Lowering speed, with/without load	mm/s	36/30
Max. climbing ability, with/without load	%	5/15
Service brake		Electromagnetic
Drive
Drive motor, 60 minute rating	kW	3
Lift motor rating at S3 15%	kW	2.2
Battery voltage/rated capacity	V/Ah	24/280
Battery weight (±5%)	kg	250
Other
Type of drive control		AC
Noise level at operator’s ear	dB(A)	≤70
Type of steering		Electric
