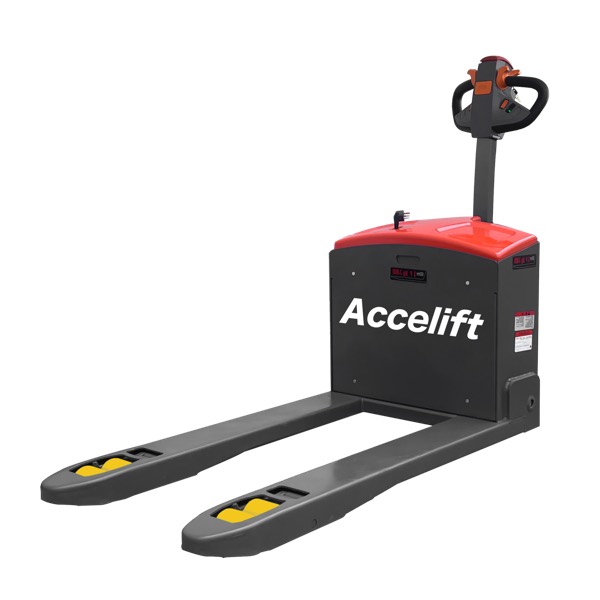

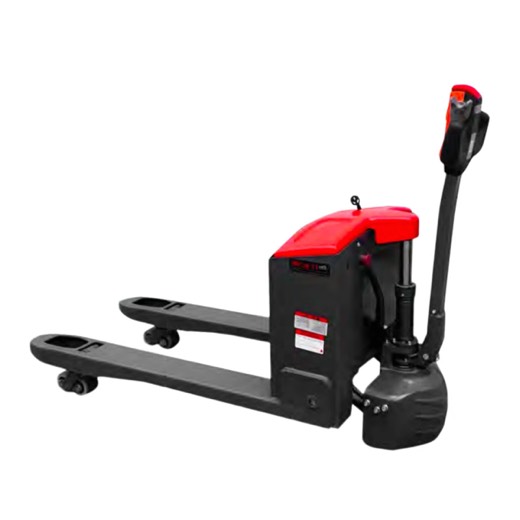

CBD30-C

Electric Pallet Truck (Pedestrian)

A compact, low-weight 3-tonne pallet truck built for freight-elevator use, with a 48V drive system and a metal cover that protects both the motor and the operator’s feet.

3000 kg

Rated capacity

200 mm

Lift height

1465 mm

Turning radius

≤70 dB(A)

Noise level

Key features

01	A compact structure and small turning radius, with low weight that allows use in a freight elevator; low noise and high performance.
02	Standard upright-walking operation lets the truck work flexibly in narrow channels too.
03	A strong metal cover protects the motor and wheels, and also reliably protects the operator’s feet for improved safety.
04	A large-capacity, maintenance-free battery with a built-in charger adds convenience for customers.
05	A 48V system delivers strong power and superior performance.
06	The operation handle uses a high-quality pneumatic spring that resets slowly and automatically once released, for lasting durability.

Main technical parameters

Parameter	Unit	CBD30-C
Characteristics
Power unit		Electric
Operation		Pedestrian
Rated traction weight	Q (t)	3
Load centre	c (mm)	600
Axle centre to fork face	x (mm)	969
Wheel base	y (mm)	1305
Service weight with battery	kg	280
Wheels / tyres
Wheels type		PU
Driving wheel size	Φ×w (mm)	Φ210×70
Bearing wheel size	Φ×w (mm)	Φ80×70
Wheels, front/rear (x=driven)		1x/4
Track width	b11 (mm)	390/525
Dimensions
Lift	h3 (mm)	200
Overall height (with handle)	h14 (mm)	725/1160
Lowered height	h13 (mm)	85
Overall length	l1 (mm)	1640
Length to fork face	l2 (mm)	490
Overall width	b1/b2 (mm)	650/685
Fork dimensions	s/e/l (mm)	55/160/1150
Width of forks	b5 (mm)	550/685
Min. ground clearance	m2 (mm)	30
Aisle width, pallet 1000×1200 across forks	Ast (mm)	2265
Aisle width, pallet 800×1200 along forks	Ast (mm)	2125
Min. turning radius	Wa (mm)	1465
Performance
Travel speed, laden/unladen	km/h	4.0/4.5
Lifting speed, with/without load	mm/s	21/28
Lowering speed, with/without load	mm/s	35/27
Maximum climbing ability, with/without load	%	6/15
Service brake		Electromagnetic
Drive
Drive motor, 60 minute rating	kW	1.2
Lift motor rating at S3 15%	kW	0.8
Battery voltage/rated capacity	V/Ah	48/65
Battery weight	kg	61.2
Other
Type of drive control		DC
Noise level at operator’s ear	dB(A)	≤70
Type of steering		Mechanical
