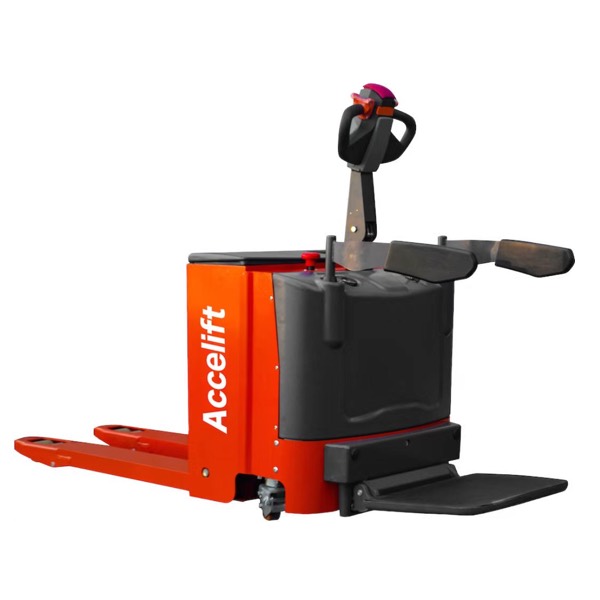

SL20

Electric Pallet Truck (Standing On)

An imported AC-controlled standing-on pallet truck with stepless speed regulation, a shock-absorbing pedal, and a self-diagnosing controller for quick, accurate fault checks.

2000 kg

Rated capacity

200 mm

Lift height

1760 mm

Turning radius

≤70 dB(A)

Noise level

Key features

01	An imported AC controller offers stepless speed regulation and a reverse braking function.
02	The original imported controller protects against over-voltage, low voltage, over-current, high temperature, short circuit and more.
03	An emergency reverse switch on the control handle helps prevent operator injury if the vehicle goes out of control.
04	Up and down buttons on both sides of the handle put every operating function within easy reach for convenient use.
05	A comfortable, shock-absorbing pedal quickly cushions vibration from the road surface, and the folding arm guard swings freely for added safety and driving comfort.
06	The controller’s self-diagnosis function displays a fault code once connected to a hand-held unit, so issues can be checked quickly and accurately.

Main technical parameters

Parameter	Unit	SL20
Characteristics
Power unit		Electric
Operation		Standing on
Rated traction weight	Q (kg)	2000
Load centre	c (mm)	600
Axle centre to fork face	x (mm)	1050
Wheel base	y (mm)	1423
Service weight with battery	kg	500
Wheels / tyres
Wheels type		PU
Driving wheel size	Φ×w (mm)	Φ250×80
Bearing wheel size	Φ×w (mm)	Φ80×70
Additional wheels	Φ×w (mm)	Φ100×40
Wheels, driving/balance/loading (x=driven)		1, 2/4
Track width, drive end	b10 (mm)	627
Track width, load end	b11 (mm)	525
Dimensions
Lift	h3 (mm)	200
Height of seat/stand-on platform	h7 (mm)	132
Overall height (with handle)	h14 (mm)	970/1315
Min. height of cargo fork	h13 (mm)	85
Overall length	l1 (mm)	1860
Length to fork face	l2 (mm)	648
Overall width	b1/b2 (mm)	776
Fork dimensions	s/e/l (mm)	60/160/1150
Width of forks	b5 (mm)	540/685
Min. ground clearance	m2 (mm)	16
Aisle width, pallet 1000×1200 across forks	Ast (mm)	2071
Aisle width, pallet 800×1200 along forks	Ast (mm)	2300
Min. turning radius	Wa (mm)	1760
Performance
Travel speed, laden/unladen	km/h	5.2/5.5
Lifting speed, with/without load	mm/s	35/45
Lowering speed, with/without load	mm/s	65/58
Maximum climbing ability, with/without load	%	6/8
Service brake		Electromagnetic
Drive
Drive motor, 60 minute rating	kW	1.5
Lift motor rating at S3 15%	kW	0.8
Battery voltage/rated capacity	V/Ah	24/200
Battery weight	kg	180
Other
Type of drive control		AC
Noise level at operator’s ear	dB(A)	≤70
