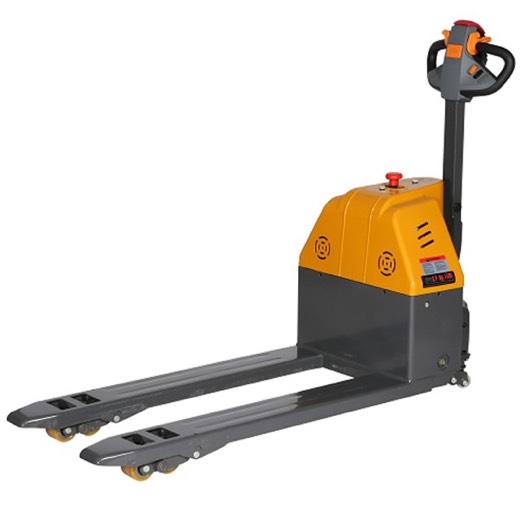

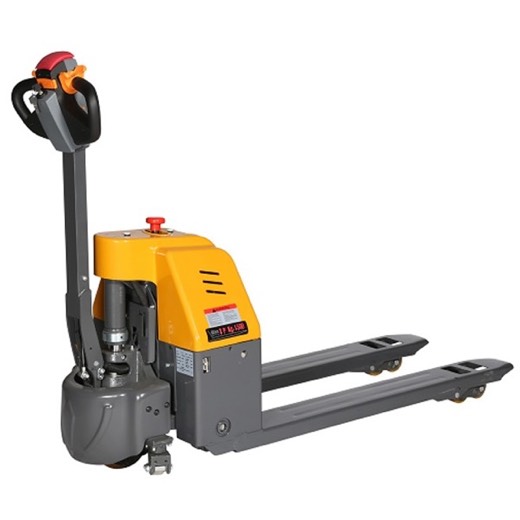

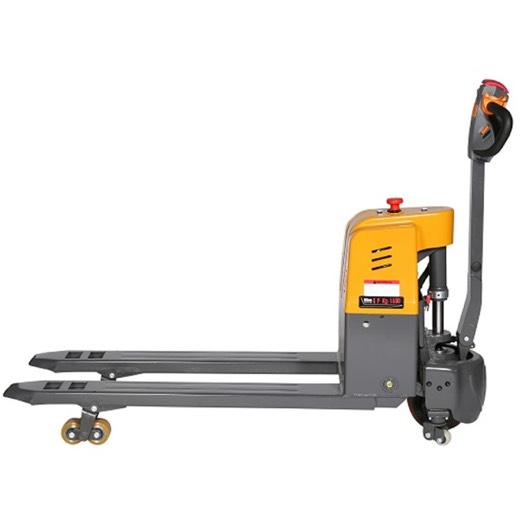

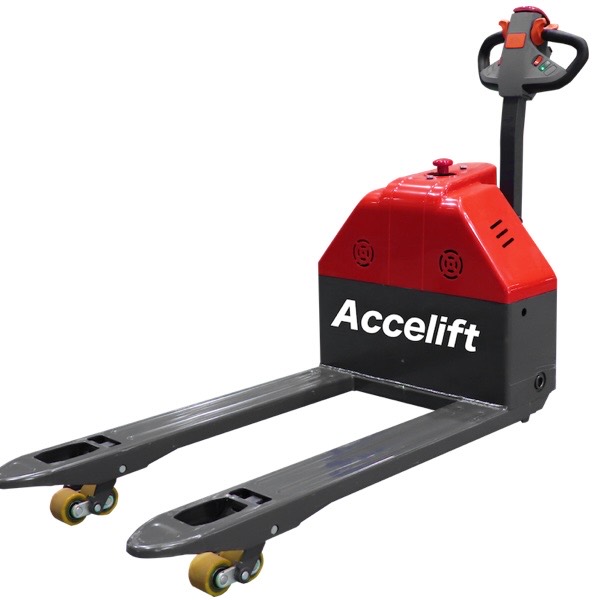

SL15

Electric Pallet Truck (Pedestrian)

A low center-of-gravity pallet truck with a small turning radius and excellent steering stability, driven by a compact, high-efficiency permanent magnet motor system.

1500 kg

Rated capacity

200 mm

Lift height

1434 mm

Turning radius

≤70 dB(A)

Noise level

Key features

01	A small turning radius and low center of gravity give excellent steering stability.
02	The operating handle uses a high-quality pneumatic spring that resets slowly and automatically once released, for lasting durability.
03	The key switch, electric meter, up/down buttons, and turtle-speed switch are all integrated into the handle for easy operation.
04	A German-imported waterproof micro-power switch adapts to cold, humid and dusty conditions.
05	A permanent-magnet motor drive system is compact, light and highly efficient, with low losses.
06	A rugged metal shield protects the drive system and shields the operator’s feet from injury.
07	Without increasing the battery tank size, an optional high-density, large-capacity lithium battery of the same volume can double the battery life.

Main technical parameters

Parameter	Unit	SL15
Characteristics
Power unit		Electric
Operation		Pedestrian
Rated traction weight	Q (kg)	1500
Load centre	c (mm)	600
Axle centre to fork face	x (mm)	944
Wheel base	y (mm)	1272
Service weight with battery	kg	180
Wheels / tyres
Wheels type		PU
Driving wheel size	Φ×w (mm)	Φ210×75
Bearing wheel size	Φ×w (mm)	Φ80×60
Wheels, front/rear (x=driven)		4/1x
Track width	b11 (mm)	410/535
Dimensions
Lift	h3 (mm)	200
Overall height (with handle)	h14 (mm)	785/1210
Lowered height	h13 (mm)	85
Overall length	l1 (mm)	1624
Length to fork face	l2 (mm)	474
Overall width	b1/b2 (mm)	560/685
Fork dimensions	s/e/l (mm)	55/150/1150
Width of forks	b5 (mm)	560/685
Min. ground clearance	m2 (mm)	30
Aisle width, pallet 1000×1200 across forks	Ast (mm)	1840
Aisle width, pallet 800×1200 along forks	Ast (mm)	1890
Min. turning radius	Wa (mm)	1434
Performance
Travel speed, laden/unladen	km/h	4.2/4.5
Lifting speed, with/without load	mm/s	29/33
Lowering speed, with/without load	mm/s	53/27
Maximum climbing ability, with/without load	%	6/15
Service brake		Electromagnetic
Drive
Drive motor, 60 minute rating	kW	0.75
Lift motor rating at S3 15%	kW	0.8
Battery voltage/rated capacity	V/Ah	2×12/75
Battery weight	kg	40
Other
Type of drive control		DC
Noise level at operator’s ear	dB(A)	≤70
Type of steering		Mechanical
