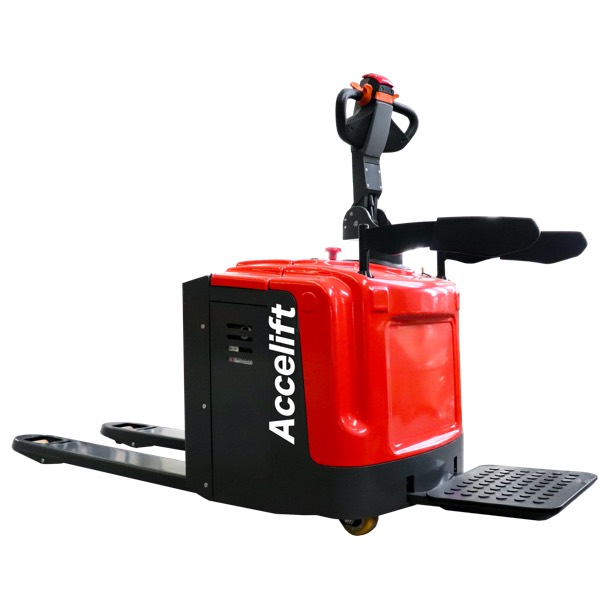

SL20GA / SL25GA / SL30GA

Electric Pallet Truck (Standing On)

A stable, standing-on pallet truck with a floating drive-system bracket for smooth cornering, electronic power steering, and a power-off brake for safe, confident handling.

2000-3000 kg

Rated capacity

200 mm

Lift height

1746 mm

Turning radius

≤70 dB(A)

Noise level

Key features

01	A floating bracket at the center of the drive system keeps the vehicle stable, with a smooth, steady body through turns.
02	A power-off brake function stops the vehicle and cuts power immediately when the handle is released or pressed to the bottom.
03	The whole series comes standard with electronic power steering, with keen power response and a handle that’s comfortable to manipulate.
04	A boost cylinder gives fast speed and large power at low energy consumption, preventing slippage when overloaded.
05	A standard side-pull battery configuration makes battery replacement quick and convenient, supporting continuous operation and improving work efficiency.

Main technical parameters

Parameter	Unit	SL20GA	SL25GA	SL30GA
Characteristics
Power unit		Electric
Operation		Standing on
Rated traction weight	Q (kg)	2000	2500	3000
Load centre	c (mm)	600
Axle centre to fork face	x (mm)	1039
Wheel base	y (mm)	1560
Service weight with battery	kg	735	750	756
Wheels / tyres
Wheels type		PU
Driving wheel size	Φ×w (mm)	Φ250×75
Bearing wheel size	Φ×w (mm)	Φ80×80
Additional wheels	Φ×w (mm)	Φ115×55
Wheels, front/rear (x=driven)		1x+2/4
Track width, drive end	b10 (mm)	580
Track width, load end	b11 (mm)	355/500
Dimensions
Lift	h3 (mm)	200
Overall height (with handle)	h4 (mm)	1150/1455
Lowered height	h14 (mm)	85
Overall length	h13 (mm)	1910 (1985)
Length to fork face	l1 (mm)	756
Overall width	l2 (mm)	808
Fork dimensions	s/e/l (mm)	50/185/1150 (1220)
Width of forks	b5 (mm)	540/685
Min. ground clearance	m2 (mm)	25
Aisle width, pallet 1000×1200 across forks	Ast (mm)	2180
Aisle width, pallet 800×1200 along forks	Ast (mm)	2380
Min. turning radius	Wa (mm)	1746
Performance
Travel speed, laden/unladen	km/h	5.2/5.5
Lifting speed, with/without load	mm/s	22/28	18/20	15/18
Lowering speed, with/without load	mm/s	30/20	32/18	35/16
Maximum climbing ability, with/without load	%	6/10	6/15	6/15
Service brake		Electromagnetic
Drive
Drive motor, 60 minute rating	kW	1.5	2.5	3.0
Lift motor rating at S3 15%	kW	0.8	2.2	2.2
Battery voltage/rated capacity	V/Ah	24/210
Battery weight	kg	190
Other
Type of drive control		AC
Noise level at operator’s ear	dB(A)	≤70
Type of steering		Electric
