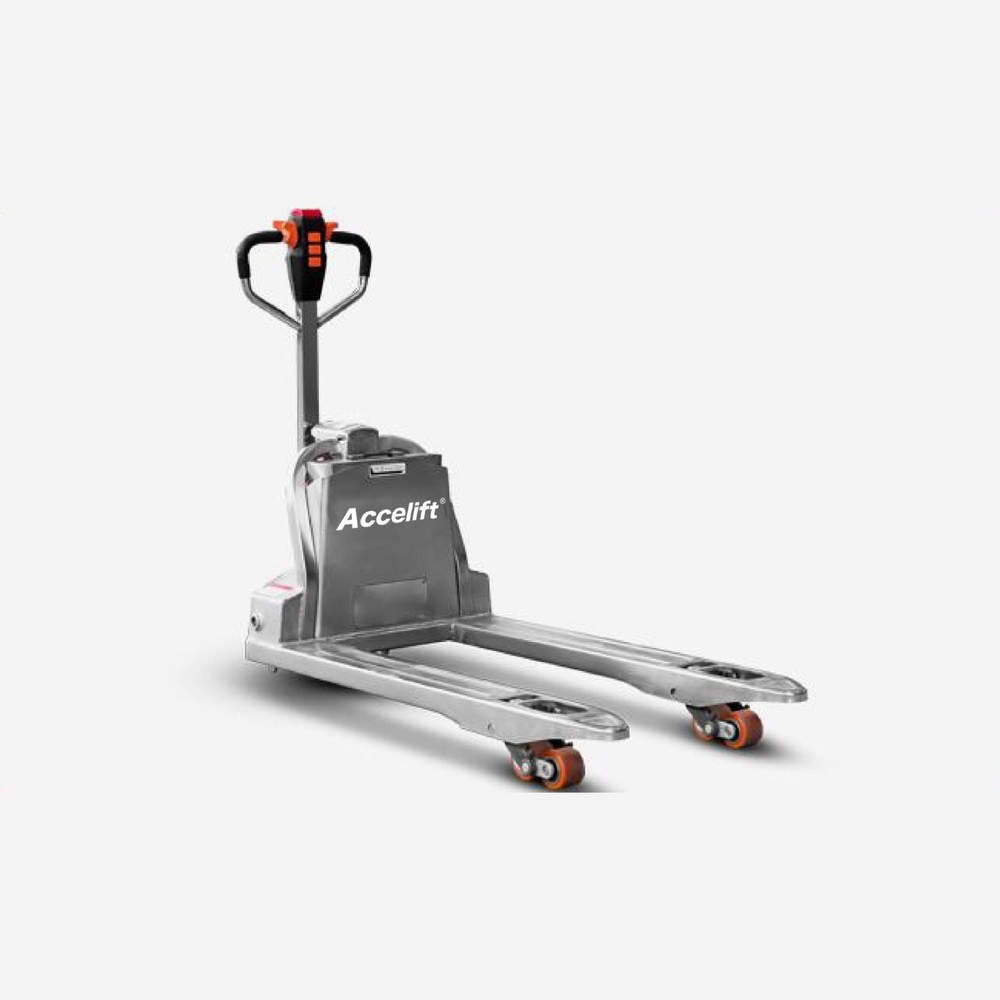

Name: Stainless Steel Electric Pallet Truck SL15L3E-S / SL20L3E-S | 1.5 – 2.0 t
Brand: Accelift

Electric Pallet Truck · Pedestrian · 304 Stainless

SL15L3E-S / SL20L3E-S

Stainless Steel Electric Pallet Truck

A 1500 or 2000 kg pedestrian pallet truck built in 304 food-grade stainless steel, for wash-down food lines, pharmaceutical production, chemical plants and cold stores — the rooms where a painted truck starts rusting in its first year.

1500 / 2000 kg

Rated capacity

200 mm

Lift height

1398 mm

Turning radius

304 stainless

Body material

Key features

01	304 food-grade stainless steel throughout — corrosion, high-temperature and oxidation resistance, and a surface that can be washed down properly rather than merely wiped.
02	Fully sealed hydraulic cylinder. No oil leakage. In a dry warehouse an oil weep is housekeeping; over a food line it is a batch write-off.
03	Lithium battery. No electrolyte to spill, no watering, no acid mist. Light enough to lift out by hand, and it takes a partial charge whenever the truck is standing.
04	Metal drive-unit cover. Protects the drive system, and gives the operator’s feet some protection at the same time.
05	Double load wheels. The fork tips do not tilt left or right as the load transfers — the failure behind most near-misses with single-wheel forks.
06	Belly-stop switch in the tiller head. If the truck backs the operator towards a wall, leaning into the switch cuts the drive. No hand has to find a button.

SL15/20L3E-S stainless steel pallet truck, side view — Side view — 1603 mm overall length.

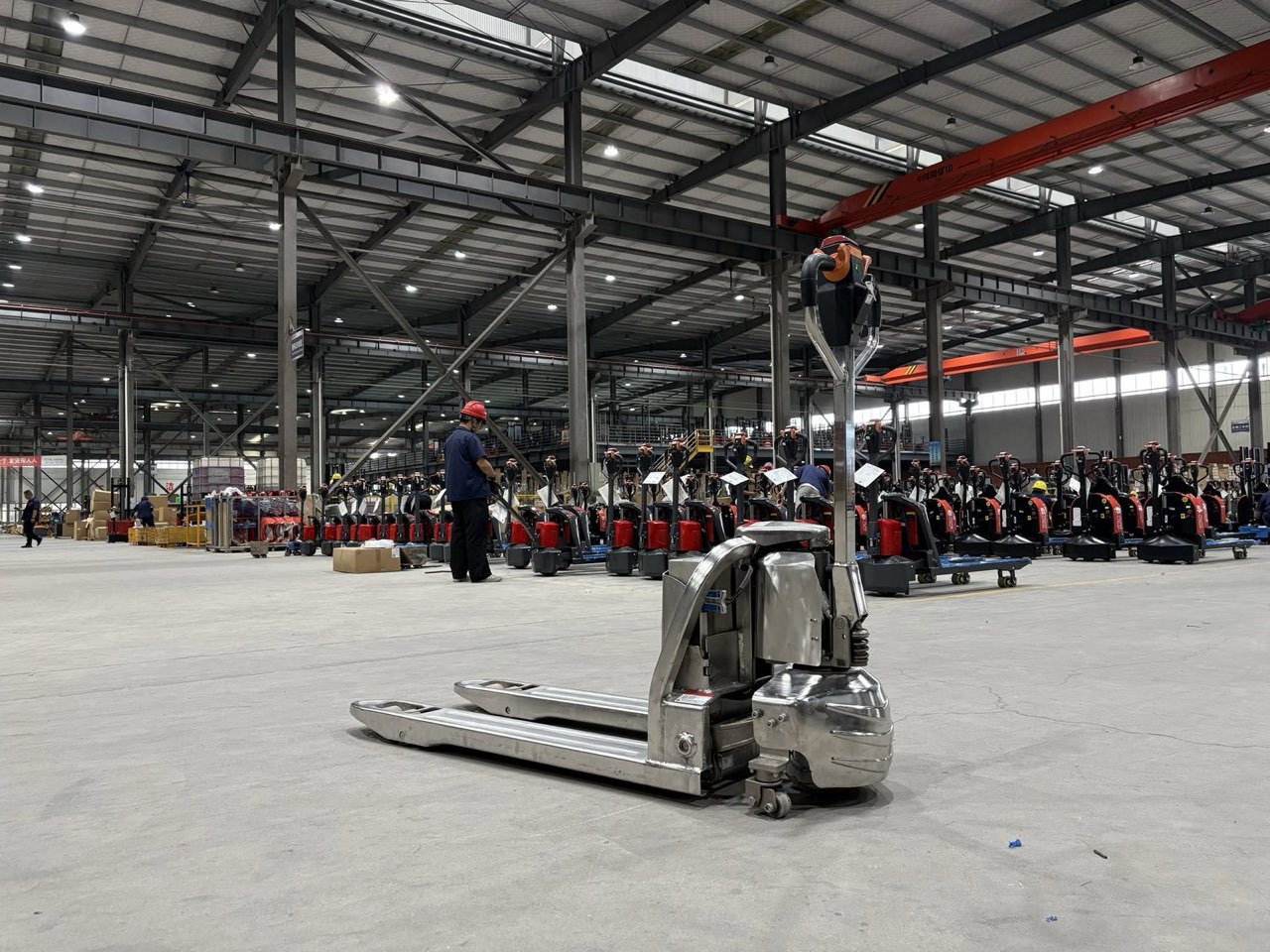

SL15/20L3E-S stainless steel pallet truck on the Accelift plant floor — Photographed on our own floor, not in a studio.

Main technical parameters

Parameter	Unit	SL15L3E-S	SL20L3E-S
Characteristics
Driving mode		Electric
Operation		Pedestrian
Rated capacity	Q (kg)	1500	2000
Load centre	c (mm)	600
Front overhang	x (mm)	944
Wheel base	y (mm)	1243
Service weight with battery	kg	142	146
Wheels and tyres
Tyre type		Polyurethane (PU)
Drive wheel size	Φ × w (mm)	Φ210 × 70
Load wheel size	Φ × w (mm)	Φ80 × 60
Wheels, drive / balance / load (x = driven)		1x / 4
Wheel distance, load end	b11 (mm)	400 / 535
Dimensions
Lift height	h3 (mm)	200
Tiller height, min. / max.	h14 (mm)	740 / 1160
Fork lowered height	h13 (mm)	85
Overall length	l1 (mm)	1603
Body length	l2 (mm)	453
Overall width	b1/b2 (mm)	550 / 685
Fork size	s/l/e (mm)	50 / 150 / 1150
Fork outer width	b5 (mm)	550 / 685
Ground clearance, at wheelbase centre	m2 (mm)	35
Aisle width, pallet 1000 x 1200 across forks	Ast (mm)	1804
Aisle width, pallet 800 x 1200 along forks	Ast (mm)	1854
Turning radius	Wa (mm)	1398
Performance
Travel speed, laden / unladen	km/h	4.2 / 4.5
Gradeability, laden / unladen	%	5 / 10
Service brake		Electromagnetic
Drive
Drive motor power	kW	0.75
Lift motor power	kW	0.5	0.8
Battery voltage / capacity	V/Ah	24/20, 24/30, 24/40, 24/60, 48/15, 48/20
Battery weight (± 5%)	kg	6 – 13.2, depending on pack
Other
Drive control		DC speed control
Noise level at operator’s ear	dB(A)	≤ 70
Steering		Mechanical

Product catalogue

SL15/20L3E-S full catalogue — features, application photos, dimensions and the complete data sheet.

Download PDF · 5 MB

Is stainless the right choice?

If the truck never meets water or chemicals, it is money spent on a problem you do not have — a painted truck with the same drive and battery will do the identical job for less. The test is simple: does it get washed down, does it work near open product, or does it move between temperatures? One yes is usually enough.

Read the full solution guide →
