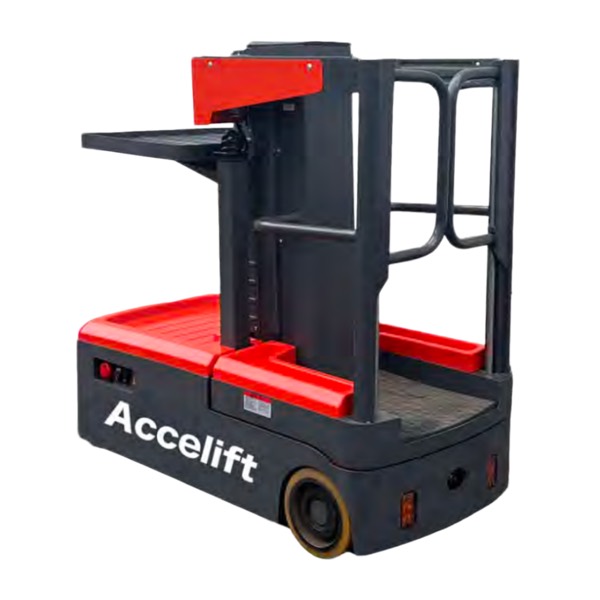

Medium-Level Order Picker JXH-D
Medium-Level Order Picker JXH-D
Ask for a price, lead time, battery options or the full spec sheet. Factory-direct, OEM branding available.
Description
Order Picker · Medium-Level
JXH-D
Medium-Level Order Picker
Proportional-control lifting and an explosion-proof hydraulic system give the JXH-D stable, precise, and safe operation. Dual-drive differential steering keeps the turning radius small, and walking speed automatically adjusts with lift height to keep every pick safe.
|
90/150 kg
Rated capacity
|
4095 mm
Max. lift height
|
1250 mm
Turning radius
|
≤75 dB(A)
Noise level
|
Key features
| 01 | Proportional-control lifting makes work stable and control accurate. |
| 02 | The explosion-proof hydraulic system won’t fall quickly even if the pipe bursts, for greater safety. |
| 03 | A two-foot-pedal mode ensures the operator’s feet correctly stand on the platform. |
| 04 | Both-hands induction operation prevents accidental activation. |
| 05 | Dual-drive differential turning achieves the smallest possible turning radius. |
| 06 | Linked operation of lifting and walking makes the work more efficient. |
| 07 | Walking speed varies with lifting height to ensure safe operation. |
| 08 | The front is equipped with a small pallet that can be electrically lifted, making it easy to take and place goods. |
Main technical parameters
| Parameter | Unit | JXH-D |
| Characteristics | ||
| Power unit | Electric | |
| Operation | Order Picker | |
| Rated traction weight | Q (kg) | 90/150 |
| Wheel base | y (mm) | 1100 |
| Service weight with battery | kg | 960 |
| Wheels / Tyres | Unit | JXH-D |
| Wheels type | PU | |
| Driving wheel size | Φ×w (mm) | Φ210×75 |
| Bearing wheel size | Φ×w (mm) | Φ254×104 |
| Additional wheels | Φ×w (mm) | Φ100×40 |
| Wheels, front/rear (x=driven) | 2x, 2/2 | |
| Track width, drive end | b10 (mm) | 546 |
| Track width, load end | b11 (mm) | 642 |
| Dimensions | Unit | JXH-D |
| Lowest height after gantry is lowered | h1 (mm) | 1435 |
| Maximum lifting height of the gantry | h3 (mm) | 4095 |
| Height of the gantry at its highest lift | h4 (mm) | 4100 |
| Top guard (cockpit) height | h6 (mm) | 1390 |
| Seat/platform height | h7 (mm) | 336 |
| Platform lifting height | h12 (mm) | 3000 |
| Pick height (h12 + person pick height) | ≈5000 | |
| Vehicle length | l1 (mm) | 1460 |
| Full car width | b1/b2 (mm) | 750 |
| Ground clearance at center of wheelbase | m2 (mm) | 52 |
| Turning radius | Wa (mm) | 1250 |
| Performance | Unit | JXH-D |
| Walking speed, full/no load (H: 0-900mm) | km/h | 4.2/4.5 |
| Walking speed, full/no load (H: 900-2000mm) | km/h | 2 |
| Walking speed, full/no load (H: 2000-3000mm) | km/h | 1 |
| Lifting speed, full/no load (Q3) | mm/s | 260/280 |
| Lifting speed, full/no load (Q1) | mm/s | 22/20 |
| Descent speed, full/no load (Q3) | mm/s | 200/180 |
| Descent speed, full/no load (Q1) | mm/s | 20/20 |
| Maximum gradient, full/no load | % | 3/5 |
| Brake type | Electromagnetic |
| Drive | Unit | JXH-D |
| Drive motor power | kW | 0.75 |
| Lifting motor power | kW | 2.2 |
| Battery voltage/capacity | V/Ah | 12/120×2 |
| Battery weight | kg | 32.5 |
| Other | Unit | JXH-D |
| Drive control type | DC | |
| Noise level | dB(A) | ≤75 |
