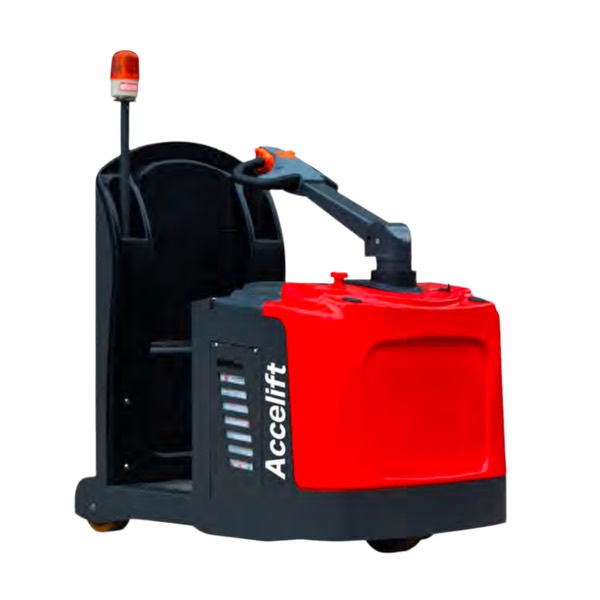

Tow Tractor (Stand-on)

Tow Tractors

Tow Tractor (Stand-on)

Ask for a price, lead time, battery options or the full spec sheet. Factory-direct, OEM branding available.

Description

Tow tractor(T30)

Product Features

1.Pedal switch design position is reasonable, easy to operate;

2.Wide and comfortable operating space, equipped with rubber cushion, to provide the operator with comfortable driving experience;

3.Side pull battery box design, easy to replace the battery, convenient for continuous operation;

4.By adjusting the hole position, the tractor frame can achieve four different hook heights to ensure that various needs and reliable connection of different trailers can be met;

5.Advanced EPS electronic power steering system, when turning at large angle, to ensure that the vehicle is more stable and safe when running at large angles;

Characteristics Model T30
Power unit Electric
Operation Standing on
Rated traction weight Q (t) 3
Wheel base y (mm) 1038
Weights Service weight with battery kg 768
Wheels/Tyres Wheels type PU
Driving wheel size (mm) Ф250×75
Bearing wheel size (mm) Φ180×76
Wheels, number front/rear (x = driven) 2/1x
Track width b11 (mm) 618
Dimensions Coupler height h10 (mm) 233/328/343/438
Overall length l1 (mm) 1395
Overall width b1/ b2 (mm) 808
Min.Ground clearance m2 (mm) 65
Min.Turning radius Wa (mm) 1242
Performance Travel speed,laden/unladen km/ h  6/7
Rated pulling power N 600
Max.pulling power N 2000
Gradeability,laden/unladen %  3/15
Brake Electromagnetic
Drive Drive motor kW 3
Battery voltage/ Battery capacity V/ Ah 24/210
Battery weight kg 190
Others Type of drive control AC
Type of steering Electric
Noise level at operator‘s ear dB (A) ≤70
Traction coupling Bolt
