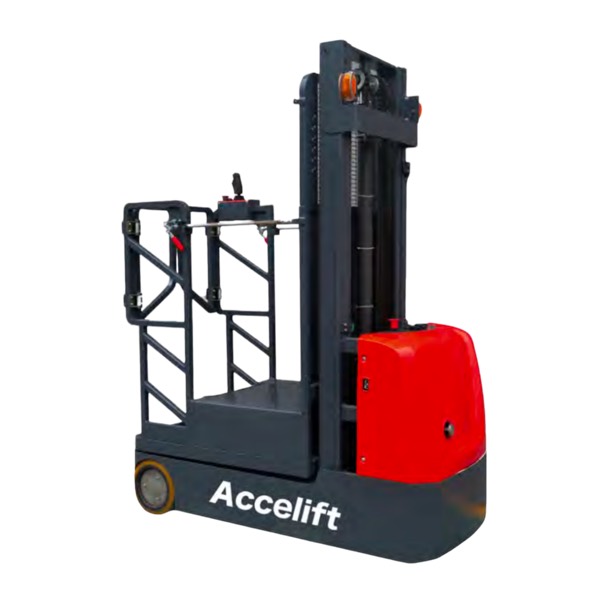

Order Picker QL03-S
Ask for a price, lead time, battery options or the full spec sheet. Factory-direct, OEM branding available.
Description
Product Features
♠ Flexible operation, easy in the warehouse and try stacking;
♠ Curve turns automatically speed limit, driving safer;
♠ System explosion-proof design, even if the pipe burst, will not fall quickly, improve safety;
♠ Large-capacity maintenance-free battery;
♠ With tilt alarm to ensure safe operation;6.Buzzer with lifting action.
Technical Data
| Section | No. | Parameter | Unit | Value |
| Characteristics | ||||
| 1.01 | Model | QL03-S | ||
| 1.02 | Power unit | Electric | ||
| 1.03 | Operation | Order Picker | ||
| 1.04 | Rated traction weight | Q (kg) | 300 | |
| 1.05 | Wheel base | y (mm) | 1205 | |
| Weights | ||||
| 2.01 | Service weight with battery | kg | 810 | |
| Wheels/Tyres | ||||
| 3.01 | Wheels type | PU | ||
| 3.02 | Driving wheel size | Φ×w (mm) | Φ230×80 | |
| 3.03 | Bearing wheel size | Φ×w (mm) | Φ150×50 | |
| 3.04 | Wheels, number front/rear (x = driven) | 2×, 2 | ||

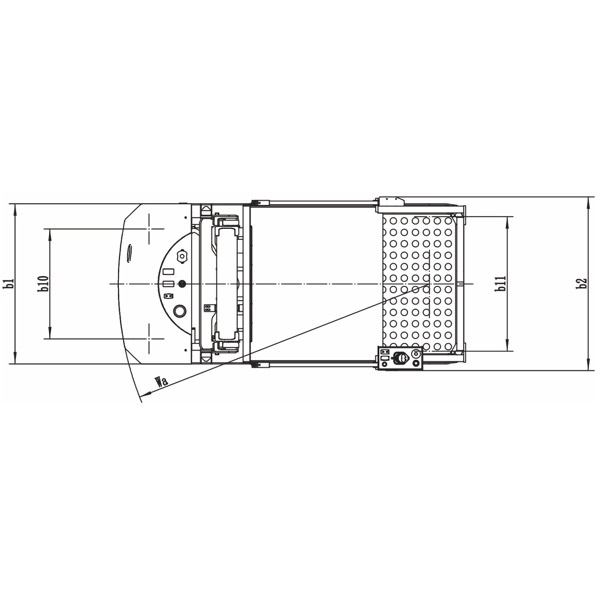

| 3.05 | Track width (drive end) | b10 (mm) | 610 | |
| 3.06 | Track width (load end) | b11 (mm) | 570 | |

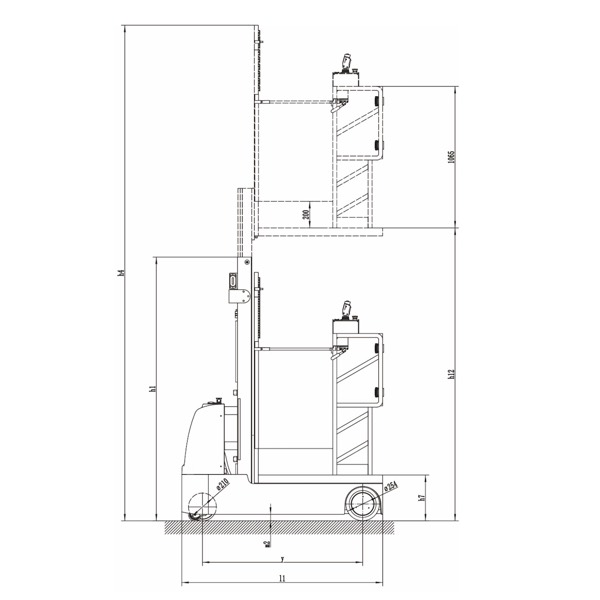

| Dimensions | ||||
| 4.01 | Height of mast, lowered | h1 (mm) | 1735/1985 | |
| 4.02 | Lift | h3 (mm) | 2500/3000 | |
| 4.03 | Height of mast, extended | h4 (mm) | 4025/4525 | |
| 4.04 | Height of overhead guard (cabin) | h7 (mm) | 345 | |
| 4.05 | Height of seat/stand-on platform | h12 (mm) | 3905/3345 | |
| 4.06 | Overall length | l1 (mm) | 1510 | |
| 4.07 | Overall width | b1/b2 (mm) | 700 | |
| 4.08 | Min. ground clearance | m2 (mm) | 50 | |
| 4.09 | Min. turning radius | Wa (mm) | 1380 | |
| Performance | ||||
| 5.01 | Travel speed, laden/unladen (H: 0–1000 mm) | km/h | 4 | |
| 5.02 | Travel speed, laden/unladen (H: 1000–2000 mm) | km/h | 2 | |
| 5.03 | Travel speed, laden/unladen (H: 2000–3000 mm) | km/h | 1 | |
| 5.04 | Lifting speed, with/without load | mm/s | 47/78 | |
| 5.05 | Lowering speed, with/without load | mm/s | 95/85 | |
| 5.06 | Service brake | Electromagnetic | ||
| Drive | ||||
| 6.01 | Drive motor, 60 minute rating | kW | 0.5+0.5 | |
| 6.02 | Lift motor rating at S3 15% | kW | 2.2 | |
| 6.03 | Battery voltage / rated capacity | V/Ah | 24/120×2 | |
| Other | ||||
| 7.01 | Type of drive control | DC | ||
| 7.02 | Noise level at operator’s ear | dB(A) | ≤75 |
