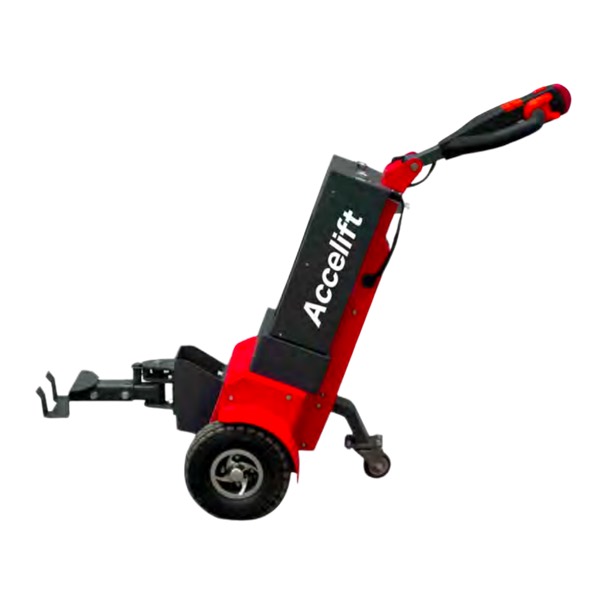

Name: Tow Tractor (Pedestrian) TW10
Brand: Accelift

Product Features

♠ The vehicle ls compact, reliable and easy to use, comfortable and flexible to operate;

♠ The battery pack is light and easy to replace, allowing for multiple working shifts:

♠ Modular counterweight improves vehicle stability while ensuring maximum flexibility;

♠ The foldable handle lever reduces the volume of the vehicle so it can be stored in the smallest space.

Technical Data

Section	No.	Parameter	Unit	Value
Characteristics
	1.01	Model		TW10
	1.02	Power unit		Electric
	1.03	Operation		Pedestrian
	1.04	Rated traction weight	Q (kg)	1000
	1.05	Rated pulling power	F (N)	200
	1.06	Wheel base	y (mm)	321
	1.07	Service weight with battery	kg	116
Wheels/Tyres
	2.01	Wheels type		Rubber wheel
	2.02	Driving wheel size	Φ×w (mm)	Φ254×85
	2.03	Bearing wheel size	Φ×w (mm)	Φ75×32
	2.04	Before the wheel track	b10 (mm)	441
Dimensions

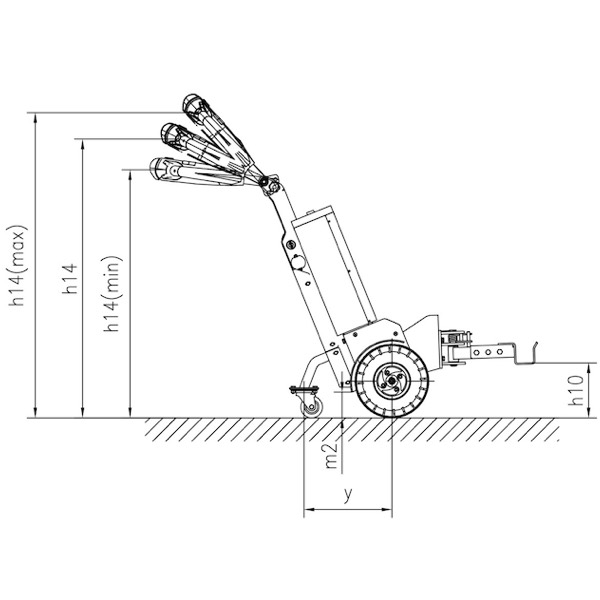

	3.01	Overall height (with handle)	h14 (mm)	912/1155
	3.02	Coupler height	h10 (mm)	275/310/345

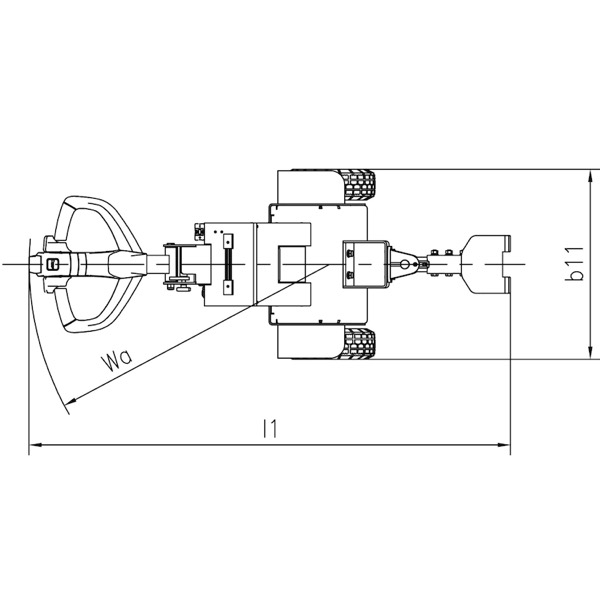

	3.03	Overall length	l1 (mm)	1184
	3.04	Overall width	b1/b2 (mm)	526
	3.05	Min. ground clearance	m2 (mm)	67
	3.06	Min. turning radius	Wa (mm)	850/902/916
Performance
	4.01	Travel speed, laden/unladen	km/h	3.8/4.2
	4.02	Rated pulling power	N	200
	4.03	Max. pulling power	N	600
	4.04	Gradeability, laden/unladen	%	3/10
	4.05	Brake		Electromagnetic
Drive
	5.01	Drive motor	kW	0.4
	5.02	Battery voltage / battery capacity	V/Ah	24/32
	5.03	Battery weight (±5%)	kg	19.6
Other
	6.01	Type of drive control		AC
	6.02	Noise level at operator’s ear	dB(A)	≤70
