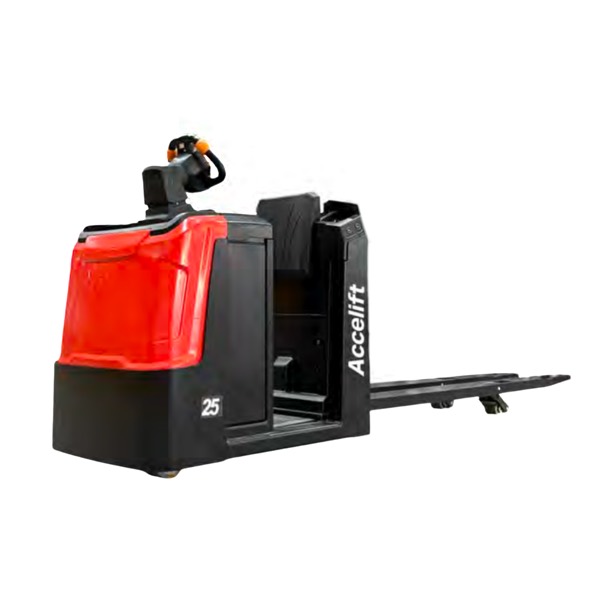

Low-Level Order Picker OPD-AR
Low-Level Order Picker OPD-AR
Ask for a price, lead time, battery options or the full spec sheet. Factory-direct, OEM branding available.
Description
Low-Level Order Picker · Standing On
OP20D-AR / OP25D-AR
Low-Level Order Picker
A 2,400mm fork carries two standard pallets at once, on a high-strength body with a vertical transmission that reaches 12.5km/h. The offset handle and side-mounted controls let the operator move the truck and lift the forks from either side, without repeatedly stepping on and off.
|
2000-2500 kg
Rated capacity
|
2400 mm
Fork length
|
12.5 km/h
Max. travel speed
|
≤70 dB(A)
Noise level
|
Key features
| 01 | The 2,400mm cargo fork carries two standard pallets at the same time, doubling efficiency. |
| 02 | A high-strength body with a new connecting rod and pin design suits heavy-duty operation. |
| 03 | A high-strength vertical transmission paired with a high-speed motor reaches a maximum driving speed of 12.5km/h. |
| 04 | An anti-slip, large-area damping pedal improves driving comfort, with a safety switch to prevent misoperation. |
| 05 | A side-pull battery box design makes battery changes easy, for convenient continuous operation. |
| 06 | Generous storage space lets the operator keep personal items and tools close at hand. |
| 07 | The redesigned handle head puts every function button within easy reach, and self-aligns for easier driving. |
| 08 | There’s no need to repeatedly get on and off the vehicle — forward, backward and lifting movements can all be operated from either side, greatly improving picking efficiency. |
Main technical parameters
| Parameter | Unit | OP20D-AR | OP25D-AR |
| Characteristics | |||
| Drive unit | Electric | ||
| Operator type | Standing on | ||
| Rated capacity | Q (kg) | 2000 | 2500 |
| Load center distance | c (mm) | 1200 | |
| Axle centre to fork face | x (mm) | 1517 | |
| Wheelbase | y (mm) | 2579 | |
| Service weight (include battery) | kg | 1010 | |
| Wheels / tyres | |||
| Tyre type, driving/loading wheels | PU | ||
| Tyre size, driving wheels | Φ×w (mm) | Φ250×75 | |
| Tyre size, loading wheels | Φ×w (mm) | Φ80×80 | |
| Tyre size, caster wheels | Φ×w (mm) | Φ140×50 | |
| Wheels, driving/caster/loading (x=drive) | 1x, 2/4 | ||
| Track width, rear, loading side | b11 (mm) | 355/385/500 | |
| Dimensions | |||
| Lift height | h3 (mm) | 205 | |
| Height drawbar in driving position, min/max | h14 (mm) | 1290/1378 | |
| Lowered height | h13 (mm) | 85 | |
| Overall length | l1 (mm) | 3650 | |
| Length to face of forks | l2 (mm) | 1250 | |
| Overall width | b1 (mm) | 810 | |
| Fork dimensions | s/e/l (mm) | 60/185/2400 | |
| Distance between fork-arms | b5 (mm) | 540/570/685 | |
| Ground clearance, center of wheelbase | m2 (mm) | 25 | |
| Aisle width, pallets 800×1200 lengthways | Ast (mm) | 3849 | |
| Turning radius | Wa (mm) | 2766 | |
| Performance | |||
| Travel speed, laden/unladen | km/h | 10/12.5 | |
| Lifting speed, laden/unladen | mm/s | 70/10 | |
| Lowering speed, laden/unladen | mm/s | 70/60 | |
| Max. gradeability, laden/unladen | % | 6/15 | |
| Service brake type | Electromagnetic | ||
| Drive | |||
| Drive motor rating S2 60 min | kW | 2.5 | 3.0 |
| Lift motor rating at S3 15% | kW | 2.2 | |
| Battery voltage/nominal capacity | V/Ah | 24/270 | |
| Battery weight | kg | 250 | |
| Other | |||
| Type of drive control | AC | ||
| Steering type | Electric | ||
| Sound pressure level at the driver’s ear | dB(A) | ≤70 | |
Request a quote
Get a price for the Low-Level Order Picker OPD-AR
Tell us the quantity and where it ships. Our sales team replies with price, lead time and options.
