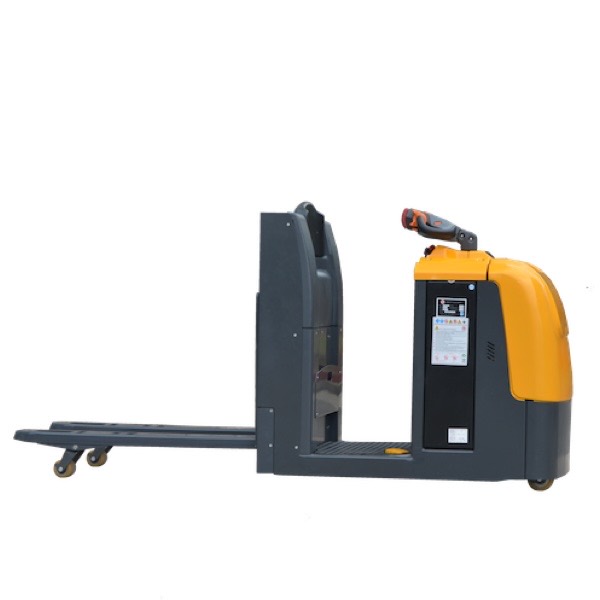

Low-Level Order Picker
Ask for a price, lead time, battery options or the full spec sheet. Factory-direct, OEM branding available.
FEATURES
1.Original imported CURTIS AC controller high power drive, high frequency, high efficiency, quiet, stepless speed regulation and reverse braking function. Perfect temperature protection and compensation function to achieve thermal protection and stable output;
2.High quality hydraulic power unit, compact structure, small size, light weight, high efficiency, no leakage, reliable performance, lifting and falling stable and reliable, stable and reliable lifting and falling functions;
3.It is equipped with the function of lifting limit. When the fork rises to the top, the system will automatically cut off the uplink power supply and stop smoothly to effectively prevent the occurrence of “roof falling” accidents. At the same time can reduce energy waste, prolong the life of hydraulic system and related components;
4.Equipped with side battery replacement, suitable for long time and multi-shift operation, battery replacement is more convenient and fast, excellent for continuous operation, greatly improve work efficiency;
5. Control elements on both sides of the vehicle can move the picker to the next position, avoiding the extra steps and delays required to get on and off the vehicle;
6.The floating bracket is set in the middle of the driving system to ensure the stability of the vehicle operation, and the body is stable when turning;
7. Pedal safety switch to prevent misoperation when walking；
8.The driving position is set with backrest, spacious driving space and rubber pedal design to improve the comfort when operating;
9.Provide a variety of battery capacity options to ensure the maximum various options of battery capacity；
| Characteristics | Model | JXD20 | |
| Power unit | Electric | ||
| Operation | Standing on | ||
| Rated traction weight | Q (kg) | 2000 | |
| Load centre | c (mm) | 600 | |
| Axle centre to fork face | x (mm) | 910 | |
| Wheel base | y (mm) | 2080 | |
| Weights | Service weight with battery | kg | 1070 |
| Wheels/Tyres | Wheels type | pu | |
| Driving wheel size | Φ×w(mm) | Φ250×75 | |
| Bearing wheel size | Φ×w(mm) | Φ80×70 | |
| additional wheels（dimensions） | Φ×w(mm) | Φ115×55 | |
| Wheels, number front/rear (x = driven) | 1,2/4 | ||
| Track width | b10 (mm) | 540 | |
| Track width | b11 (mm) | 515/370 | |
| Dimensions | Lift | h3 (mm) | 200 |
| Overall height | h14 (mm) | 1090 | |
| Fork Height，Lowered | h13 (mm) | 85 | |
| Overall length | l1 (mm) | 2517 | |
| Length to fork face | l2 (mm) | 1367 | |
| Overall width | b1/ b2 (mm) | 808 | |
| Fork dimensions | s/e/l (mm) | 50/170/1150 | |
| Width of forks | b5 (mm) | 685/540 | |
| Min.Ground clearance | m2 (mm) | 25 | |
| Aisle width with pallet 1000 x 1200 across forks | Ast (mm) | 2730 | |
| Aisle width with pallet 800 x 1200 along forks | Ast (mm) | 2780 | |
| Min.Turning radius | Wa (mm) | 2278 | |
| Performance | Travel speed,laden/unladen | (km/h) | 5.2/5.5 |
| Lifting speed, with/without load | (mm/s) | 23/24 | |
| Lowering speed, with/without load | (mm/s) | 30/20 | |
| Maximum climbing ability, with/without load | (%) | 3/6 | |
| Electromagnetic + mechanical | Electromagnetic | ||
| Drive | Drive motor, 60 minute rating | (kW) | 1.5 |
| Lift motor rating at S3 15% | (kW) | 0.8 | |
| Battery voltage/rated capacity | (V/Ah) | 24/360 | |
| Battery weight (± 5%) | (kg) | 310 | |
| Others | Type of drive control | AC | |
| Noise level at operator‘s ear | (dB(A)) | ≤75Rated traction weight |
