Name: Electric Counterbalanced Forklift Truck (Four Wheel) E1630A – E2530A | 1.6–2.5 t
Brand: Accelift

Counterbalanced Forklift · Four Wheel · Seated

E1630A – E2530A

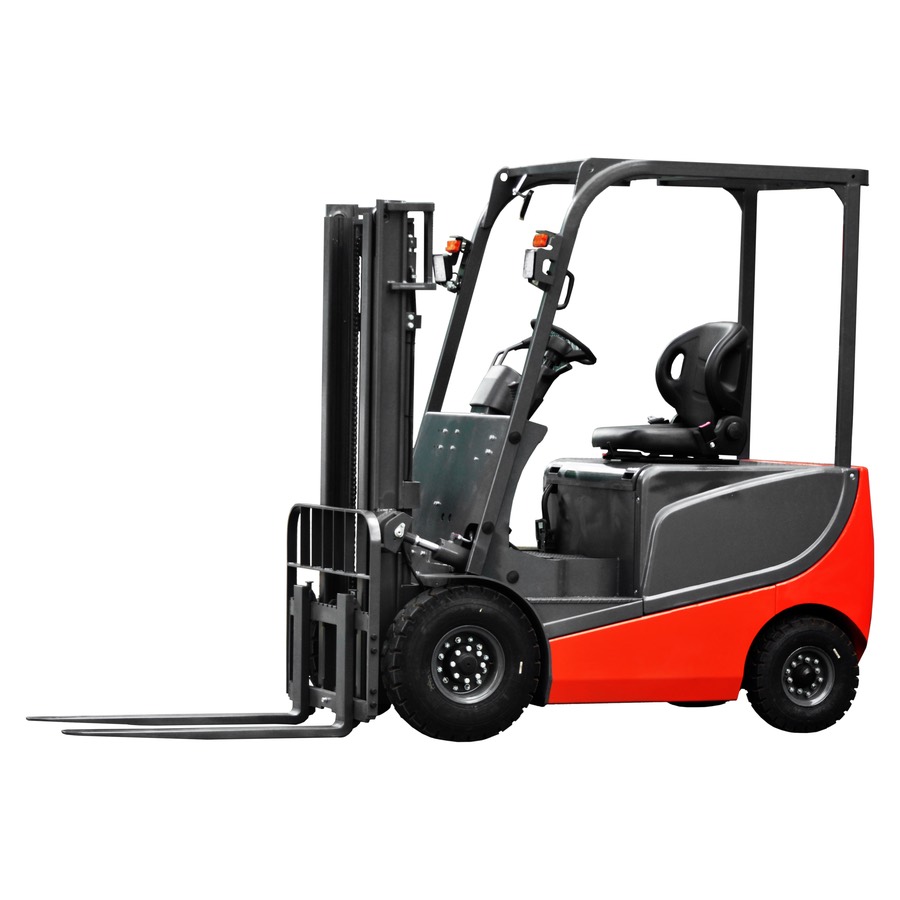

Electric Counterbalanced Forklift Truck (Four Wheel)

A four-wheel AC electric counterbalanced forklift from 1600 to 2500 kg, on pneumatic or solid tyres. Hydraulic steering and brakes, a buffered lift cylinder for soft set-downs, and a full operator package — reversing alarm, emergency cut-off and an extinguisher bracket that stays clear of the mirror.

1600–2500 kg

Rated capacity

3000 mm

Lift height

2080–2200 mm

Turning radius

48 / 385–560 V/Ah

Battery

Key features

01	Compact for its capacity, with high lift, high load and a tight turning circle — it works aisles that normally rule a counterbalanced truck out.
02	A buffer lifting cylinder throttles the descent as the load nears the floor, so pallets are set down softly instead of dropped.
03	Steering wheel and seat both adjust, so operators of different builds each get a comfortable driving position.
04	A new headlight design gives firm, even light for work in poor visibility and improves night-shift safety.
05	An emergency power-off switch sits beside the seat, within reach without leaving the operator position.
06	A reversing voice alarm gives a clear, steady warning to anyone working around the truck.
07	The fire extinguisher bracket is on the left rear column of the overhead guard, easy to reach and clear of the rear-view mirror line of sight.

Main technical parameters

Parameter	Unit	E1630A	E1830A	E2030A	E2530A
Characteristics
Power unit		Electric
Operation		Seated on
Rated capacity	Q (kg)	1600	1800	2000	2500
Load centre	c (mm)	500
Axle centre to fork face	x (mm)	411	411	488	488
Wheel base	y (mm)	1410	1410	1518	1518
Service weight with battery	kg	2750	2990	4135	4230
Wheels and tyres
Wheels type		Pneumatic / Solid
Driving wheel size		6.50–10	6.50–10	7.00–12	7.00–12
Bearing wheel size		5.00–8	5.00–8	18 × 7–8	18 × 7–8
Wheels, number front/rear (x = driven)		2x / 2
Track width, front	b10 (mm)	890	890	973	973
Track width, rear	b11 (mm)	920	920	950	950
Dimensions
Mast / fork carriage tilt, forward / backward	a/b (°)	6 / 10	6 / 10	6 / 12	6 / 12
Height of mast, lowered	h1 (mm)	2000	2000	1995	1995
Free lift	h2 (mm)	135
Lift height	h3 (mm)	3000
Height of mast, extended	h4 (mm)	3815	3815	3996	3996
Height of overhead guard	h6 (mm)	2198	2198	2165	2165
Seat height	h7 (mm)	1195	1195	1160	1160
Towing coupling height	h10 (mm)	352	352	248	248
Overall length	l1 (mm)	3120	3120	3475	3475
Length to fork face	l2 (mm)	2170	2170	2405	2405
Overall width	b1/b2 (mm)	1080	1080	1194	1194
Fork dimensions	s/e/l (mm)	35 / 100 / 950	35 / 100 / 950	40 / 120 / 1070	40 / 120 / 1070
Width of fork carriage	b3 (mm)	920	920	1040	1040
Ground clearance, below mast	m1 (mm)	115	115	110	110
Ground clearance, at wheelbase centre	m2 (mm)	125	125	128	128
Aisle width, pallet 1000 x 1200 across forks	Ast (mm)	4190	4190	3958	3958
Aisle width, pallet 800 x 1200 along forks	Ast (mm)	4225	4225	4088	4088
Turning radius	Wa (mm)	2080	2080	2200	2200
Performance
Travel speed, laden / unladen	km/h	12 / 13	12 / 13	13 / 15	13 / 15
Lifting speed, with / without load	mm/s	250 / 400	250 / 400	270 / 350	270 / 350
Lowering speed, with / without load	mm/s	240 / 258	240 / 258	435 / 566	435 / 566
Gradeability, with / without load	%	12 / 15	12 / 15	15 / 16	15 / 16
Service brake		Hydraulic
Motor and drive
Drive motor, 60 minute rating	kW	7.5	7.5	11	11
Lift motor rating at S3 15%	kW	7.7	7.7	12	12
Battery voltage / rated capacity	V/Ah	48 / 385	48 / 420	48 / 490	48 / 560
Battery weight (± 5%)	kg	635	675	835	930
Battery size, l/w/h	mm	765/650/500	765/650/500	1021/525/780	1021/525/780
Other
Type of drive control		AC speed control
Noise level at operator’s ear	dB(A)	≤ 70
Type of steering		Hydraulic

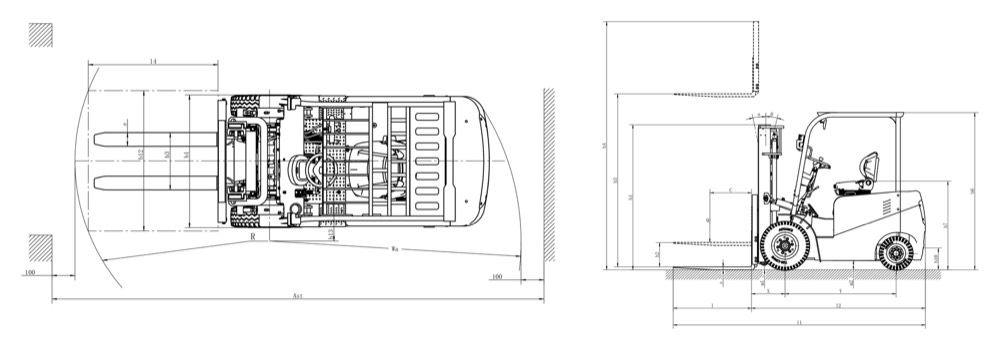

Dimensions diagram

E1630A to E2530A four-wheel electric counterbalanced forklift dimensions diagram
