Name: Electric Counterbalanced Forklift Truck (Three Wheel) EGS12FD | 1.2 t
Brand: Accelift

Counterbalanced Forklift · Three Wheel · Seated

EGS12FD

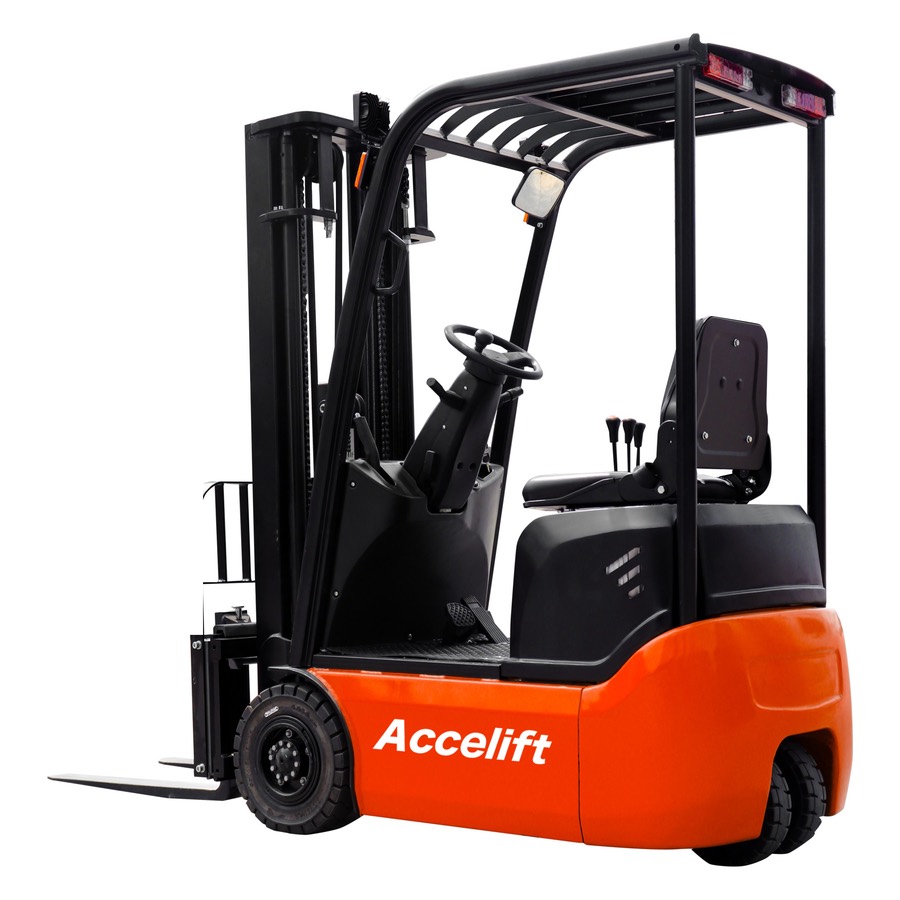

Electric Counterbalanced Forklift Truck (Three Wheel)

A 1200 kg three-wheel electric forklift on solid tyres, built for tight indoor work: front-axle AC drive, electronic power steering and a 1430 mm turning radius, with a side-pull battery box for shift changes.

1200 kg

Rated capacity

3000 mm

Lift height

1430 mm

Turning radius

24 / 400 V/Ah

Battery

Key features

01	A small, light three-wheel chassis with a 1430 mm turning radius, so it still lifts 1200 kg to 3000 mm in aisles a four-wheel truck cannot enter.
02	Electronic power steering cuts the effort at the wheel, keeping steering light and precise through a full shift.
03	Front-axle drive delivers strong tractive effort and greater braking torque — better acceleration, stronger gradeability, and steady running on uneven floors and ramps.
04	A high-frequency MOSFET AC controller gives precise speed control, with regenerative braking, reverse braking and roll-back prevention on slopes.
05	The battery box pulls out sideways, so a flat pack is swapped in minutes and the truck goes straight back to work.

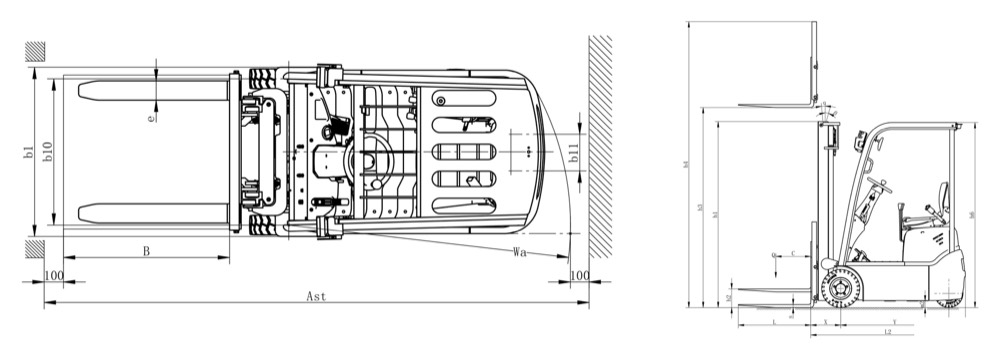

Main technical parameters

Parameter	Unit	EGS12FD
Characteristics
Power unit		Electric
Operation		Seated on
Rated capacity	Q (kg)	1200
Load centre	c (mm)	400
Axle centre to fork face	x (mm)	319
Wheel base	y (mm)	1150
Service weight with battery	kg	1945
Wheels and tyres
Wheels type		Solid
Driving wheel size		4.00–8
Bearing wheel size		3.50–5
Wheels, number front/rear (x = driven)		2x / 2
Track width, front	b10 (mm)	760
Track width, rear	b11 (mm)	185
Dimensions
Mast / fork carriage tilt, forward / backward	a/b (°)	5 / 8
Height of mast, lowered	h1 (mm)	1985
Free lift	h2 (mm)	0
Lift height	h3 (mm)	3000
Height of mast, extended	h4 (mm)	3917
Height of overhead guard	h6 (mm)	1975
Seat height	h7 (mm)	950
Overall length	l1 (mm)	2415
Length to fork face	l2 (mm)	1645
Overall width	b1/b2 (mm)	872 / 860
Fork dimensions	s/e/l (mm)	35 / 100 / 770
Width of fork carriage	b3 (mm)	800
Ground clearance, below mast	m1 (mm)	66
Ground clearance, at wheelbase centre	m2 (mm)	69
Aisle width, pallet 1000 x 1200 across forks	Ast (mm)	3080
Aisle width, pallet 800 x 1200 along forks	Ast (mm)	2900
Turning radius	Wa (mm)	1430
Performance
Travel speed, laden / unladen	km/h	7 / 9
Lifting speed, with / without load	mm/s	172 / 207
Lowering speed, with / without load	mm/s	240 / 122
Gradeability, with / without load	%	10 / 15
Service brake		Hydraulic
Motor and drive
Drive motor, 60 minute rating	kW	3.0
Lift motor rating at S3 15%	kW	4.0
Battery voltage / rated capacity	V/Ah	24 / 400
Battery weight (± 5%)	kg	310
Battery size, l/w/h	mm	745 / 320 / 532
Other
Type of drive control		AC speed control
Noise level at operator’s ear	dB(A)	≤ 70
Type of steering		Electric power steering
