Name: Electric Counterbalanced Stacker (Stand-on) CPD20J-R | 2.0 t
Brand: Accelift

Counterbalanced Stacker · Stand-on

CPD20J-R

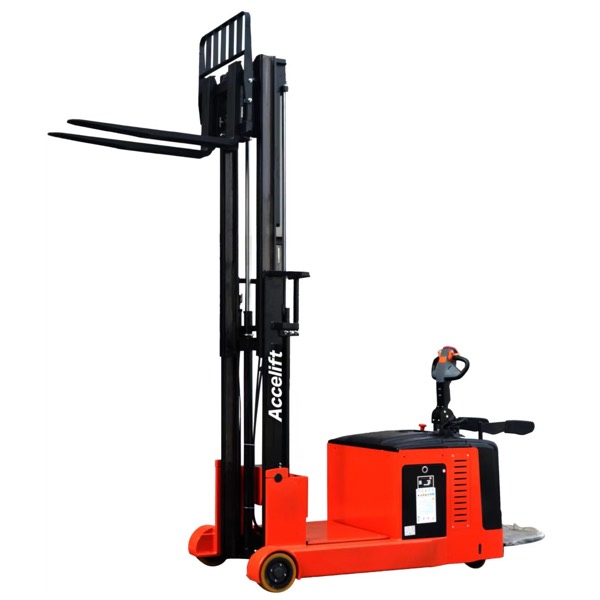

Electric Counterbalanced Stacker (Stand-on)

A 2000 kg counterbalanced stacker with a folding stand-on platform — ride it across a long warehouse, fold the platform and walk it into a tight bay. No straddle legs, and three mast options up to 4500 mm.

2000 kg

Rated capacity

3000–4500 mm

Lift height

1900 mm

Turning radius

24 / 280 V/Ah

Battery

Key features

01	Self-diagnostics: plug the handheld unit into the controller and it reads out fault codes, so a problem is identified instead of guessed at.
02	Three mast options on the same truck — two-stage standard, two-stage full free lift, or three-stage full free lift to 4500 mm for container work and low ceilings.
03	A large front wheel raises the chassis, and auxiliary wheels either side of the drive wheel steady it — good obstacle clearance without losing stability.
04	Lift limit as standard: at the top of the mast the system cuts up-travel power and stops smoothly, preventing the fork carriage from being driven into the mast head.

Main technical parameters

All three columns are model CPD20J-R; they differ only in the mast fitted.

Parameter	Unit	2-stage standard	2-stage full free	3-stage full free
Characteristics
Power unit		Electric
Operation		Stand-on, folding platform
Rated capacity	Q (kg)	2000
Load centre	c (mm)	500
Axle centre to fork face	x (mm)	174
Wheel base	y (mm)	1654
Service weight with battery	kg	2580	2970	3240
Wheels and tyres
Wheels type		Polyurethane (PU)
Driving wheel size	Φ × w (mm)	Φ250 × 127
Bearing wheel size	Φ × w (mm)	Φ250 × 120
Balance wheel size	Φ × w (mm)	Φ149 × 60
Wheels, number front/rear (x = driven)		1, 4 / 2
Track width, drive end	b10 (mm)	665
Track width, load end	b11 (mm)	976

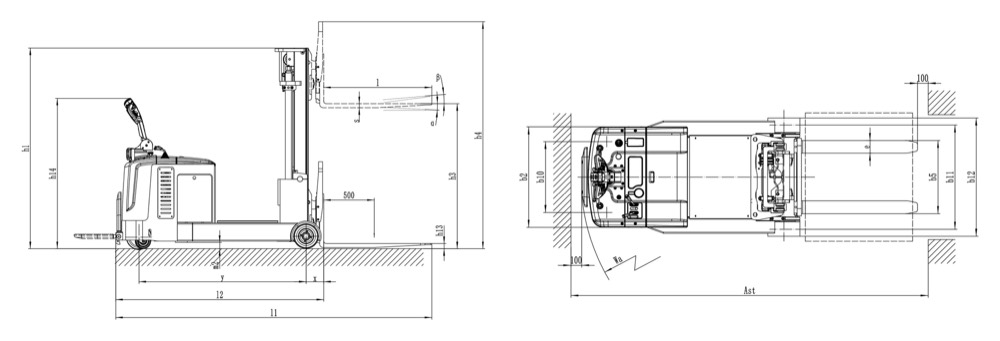

Dimensions
Mast / fork carriage tilt, forward / backward	a/b (°)	3 / 5
Height of mast, lowered	h1 (mm)	1995	1995	2190
Free lift	h2 (mm)	0	1120	1305
Lift height	h3 (mm)	3000	3000	4500
Height of mast, extended	h4 (mm)	3865	3865	5420
Tiller height, min. / max.	h14 (mm)	1075 / 1502
Lowered fork height	h13 (mm)	40
Overall length, platform folded	l1 (mm)	3130
Length to fork face, platform folded	l2 (mm)	2060
Overall width	b1/b2 (mm)	940 / 1106
Fork dimensions	s/e/l (mm)	40 / 120 / 1070
Width across forks	b5 (mm)	240–700
Distance between support arm and load surface	b4 (mm)	746
Minimum ground clearance	m2 (mm)	48
Aisle width, pallet 1000 x 1200 across forks	Ast (mm)	3420
Aisle width, pallet 800 x 1200 along forks	Ast (mm)	3530
Turning radius	Wa (mm)	1900
Performance
Travel speed, laden / unladen	km/h	5.2 / 5.5
Lifting speed, with / without load	mm/s	110 / 170
Lowering speed, with / without load	mm/s	90 / 90
Gradeability, with / without load	%	6 / 8
Service brake		Electromagnetic
Motor and drive
Drive motor, 60 minute rating	kW	3.0
Lift motor rating at S3 15%	kW	4.5
Battery voltage / rated capacity	V/Ah	24 / 280
Battery weight (± 5%)	kg	275
Other
Type of drive control		AC speed control
Noise level at operator’s ear	dB(A)	≤ 75
