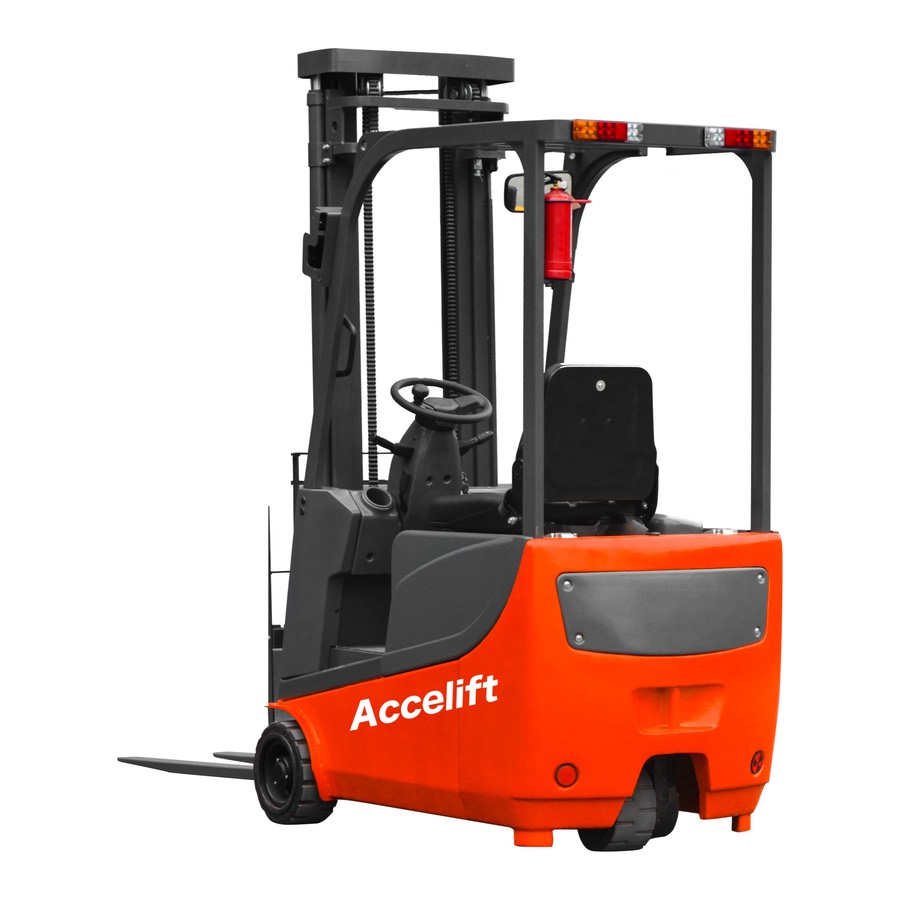

Name: Electric Counterbalanced Forklift Truck (Three Wheel) E1030GS – E1530GS | 1.0–1.5 t
Brand: Accelift

Counterbalanced Forklift · Seated

E1030GS / E1330GS / E1530GS

Electric Counterbalanced Forklift Truck (Three Wheel)

A three-wheel electric counterbalanced truck for narrow aisles: a 1348 mm turning radius, a wide-view mast and electronic power steering, with an optional full free lift mast for working inside containers.

1000–1500 kg

Rated capacity

3000 mm

Lift height

1348 mm

Turning radius

645×292×525–595 mm

Battery size (l/w/h)

Key features

01	A three-wheel layout and a 1348 mm turning radius let the truck work in aisles a four-wheel counterbalanced forklift cannot enter.
02	The wide-view mast keeps the load and the aisle in sight, which improves both cycle times and safety.
03	Electronic power steering cuts the effort at the wheel, so steering stays light through a full shift.
04	Steering wheel and seat both adjust, so operators of different builds can each find a comfortable working position.
05	A variable-wheelbase structure keeps service weight down without giving up rated capacity.
06	Available with a full free lift mast for loading and unloading inside containers or under low ceilings.

Main technical parameters

Parameter	Unit	E1030GS	E1330GS	E1530GS
Characteristics
Power unit		Electric
Operation		Seated on
Rated capacity	Q (kg)	1000	1300	1500
Load centre	c (mm)	500
Axle centre to fork face	x (mm)	235	235	170
Wheel base	y (mm)	1090
Service weight with battery	kg	1930	2100	2260
Wheels and tyres
Wheels type		PU / Solid
Driving wheel size	Φ × w (mm)	Φ250 × 127
Bearing wheel size	Φ × w (mm)	Φ305 × 127
Wheels, number front/rear (x = driven)		2 / 1x
Track width, front	b10 (mm)	783
Track width, rear	b11 (mm)	0

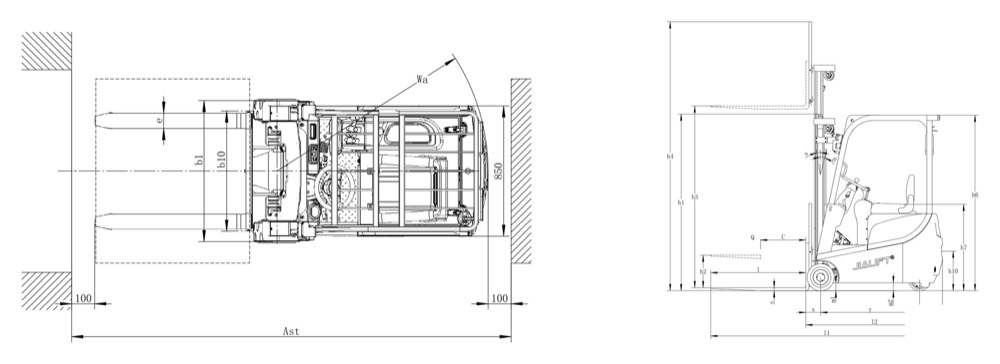

Dimensions
Mast / fork carriage tilt, forward / backward	a/b (°)	2 / 5
Height of mast, lowered	h1 (mm)	1995
Free lift	h2 (mm)	135
Lift height	h3 (mm)	3000
Height of mast, extended	h4 (mm)	3952
Height of overhead guard	h6 (mm)	1980
Seat height	h7 (mm)	960
Towing coupling height	h10 (mm)	450
Overall length	l1 (mm)	2565	2565	2500
Length to fork face	l2 (mm)	1619	1619	1554
Overall width	b1/b2 (mm)	938
Fork dimensions	s/e/l (mm)	35 / 100 / 950
Width of fork carriage	b3 (mm)	220–750	220–750	220–606
Ground clearance, below mast	m1 (mm)	90
Ground clearance, at wheelbase centre	m2 (mm)	90
Aisle width, pallet 1000 x 1200 across forks	Ast (mm)	2930	2930	2865
Aisle width, pallet 800 x 1200 along forks	Ast (mm)	3038	3038	2975
Turning radius	Wa (mm)	1348
Performance
Travel speed, laden / unladen	km/h	6.2 / 7.2
Lifting speed, with / without load	mm/s	132 / 234	132 / 234	126 / 250
Lowering speed, with / without load	mm/s	170 / 200	170 / 200	190 / 300
Gradeability, with / without load	%	6 / 10	6 / 10	5 / 10
Service brake		Electromagnetic
Motor and drive
Drive motor, 60 minute rating	kW	2.5	2.5	3.0
Lift motor rating at S3 15%	kW	4.5
Battery voltage / rated capacity	V/Ah	24 / 300	24 / 350	24 / 400
Battery weight (± 5%)	kg	280	320	360
Battery size, l/w/h	mm	645/292/525	645/292/560	645/292/595
Other
Type of drive control		AC speed control
Noise level at operator’s ear	dB(A)	≤ 80
Type of steering		Electric power steering
