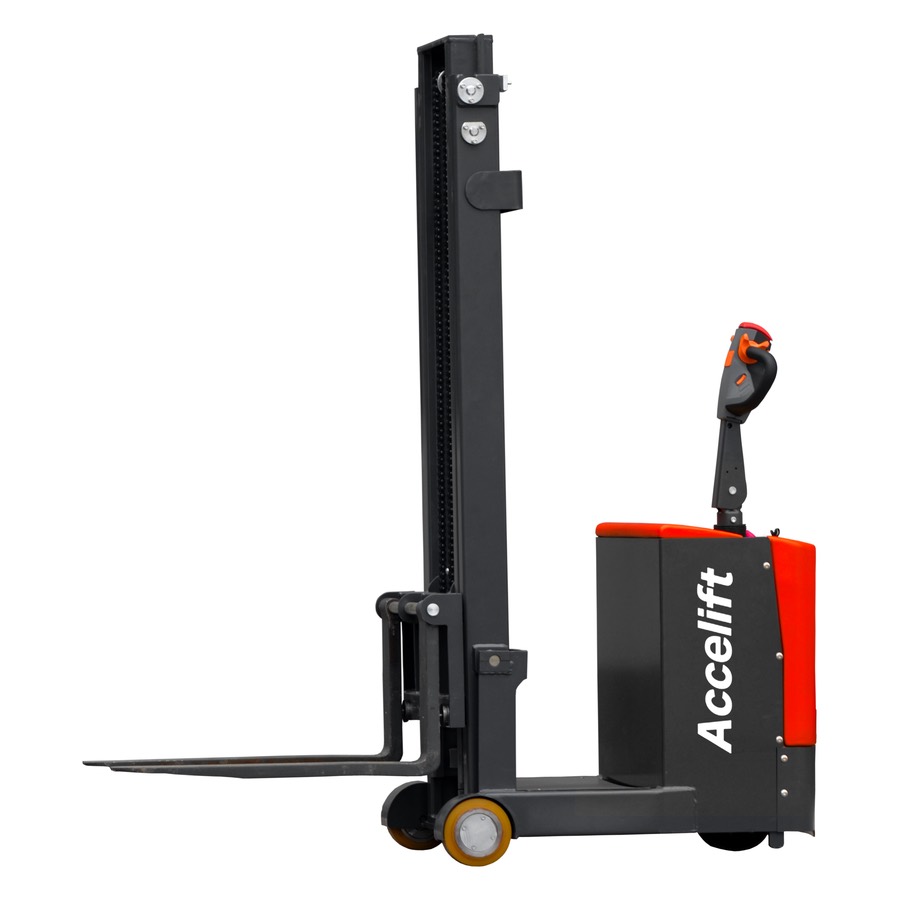

Electric Counterbalanced Stacker (Pedestrian) E0530JZ / E0730JZ | 0.5–0.7 t
Electric Counterbalanced Stacker (Pedestrian) E0530JZ / E0730JZ | 0.5–0.7 t
- Rated capacity
- 500 / 700 kg
- Lift height
- 3000 mm
- Turning radius
- 1000 mm
- Battery
- 2 × 12 V / 100 Ah
Ask for a price, lead time, battery options or the full spec sheet. Factory-direct, OEM branding available.
Description
Counterbalanced Stacker · Pedestrian
E0530JZ / E0730JZ
Electric Counterbalanced Stacker (Pedestrian)
An economical walk-behind counterbalanced stacker with no straddle legs, so it drives straight up to closed-bottom pallets, stillages and machines. 500 or 700 kg to 3000 mm, in a body small enough to turn in a 1000 mm radius.
|
500 / 700 kg
Rated capacity
|
3000 mm
Lift height
|
1000 mm
Turning radius
|
2 × 12 / 100 V/Ah
Battery
|
Key features
| 01 | A very small chassis and a 1000 mm turning radius let the truck work in spaces a seated forklift cannot reach. |
| 02 | Economical in price but not in the pump station: a high-output lifting pump keeps the load rising smoothly and evenly, even at full capacity. |
| 03 | An emergency stop switch is standard — one press cuts power and stops the truck, protecting both the operator and the load. |
| 04 | A foldable platform and arm guard are available as options for long shifts. |
Main technical parameters
| Parameter | Unit | E0530JZ | E0730JZ |
| Characteristics | |||
| Power unit | Electric | ||
| Operation | Pedestrian | ||
| Rated capacity | Q (kg) | 500 | 700 |
| Load centre | c (mm) | 400 | |
| Axle centre to fork face | x (mm) | 125 | |
| Wheel base | y (mm) | 777 | |
| Service weight with battery | kg | 990 | 1090 |
| Wheels and tyres | |||
| Wheels type | Polyurethane (PU) | ||
| Driving wheel size | Φ × w (mm) | Φ210 × 75 | Φ250 × 80 |
| Bearing wheel size | Φ × w (mm) | Φ178 × 73 | |
| Wheels, number front/rear (x = driven) | 1, 2 | ||
| Track width, load end | b11 (mm) | 803 | |
| Dimensions | |||
| Height of mast, lowered | h1 (mm) | 2060 | |
| Free lift | h2 (mm) | 0 | |
| Lift height | h3 (mm) | 3000 | |
| Height of mast, extended | h4 (mm) | 3550 | |
| Tiller height, min. / max. | h14 (mm) | 1075 / 1502 | |
| Lowered fork height | h13 (mm) | 40 | |
| Overall length | l1 (mm) | 1920 | |
| Length to fork face | l2 (mm) | 1100 | |
| Overall width | b1/b2 (mm) | 807 / 878 | |
| Fork dimensions | s/e/l (mm) | 35 / 100 / 820 | |
| Width across forks | b5 (mm) | 210–640 | |
| Aisle width, pallet 1000 x 1200 across forks | Ast (mm) | 2470 | |
| Aisle width, pallet 800 x 1200 along forks | Ast (mm) | 2580 | |
| Turning radius | Wa (mm) | 1000 | |
| Performance | |||
| Travel speed, laden / unladen | km/h | 4.0 / 4.2 | |
| Lifting speed, with / without load | mm/s | 120 / 130 | 110 / 130 |
| Lowering speed, with / without load | mm/s | 130 / 115 | 125 / 115 |
| Gradeability, with / without load | % | 3 / 5 | 5 / 8 |
| Service brake | Electromagnetic | ||
| Motor and drive | |||
| Drive motor, 60 minute rating | kW | 0.75 | 1.5 |
| Lift motor rating at S3 15% | kW | 2.2 | |
| Battery voltage / rated capacity | V/Ah | 2 × 12 / 100 | |
| Battery weight (± 5%) | kg | 2 × 27 | |
| Other | |||
| Type of drive control | DC speed control | AC speed control | |
| Noise level at operator’s ear | dB(A) | ≤ 70 | |

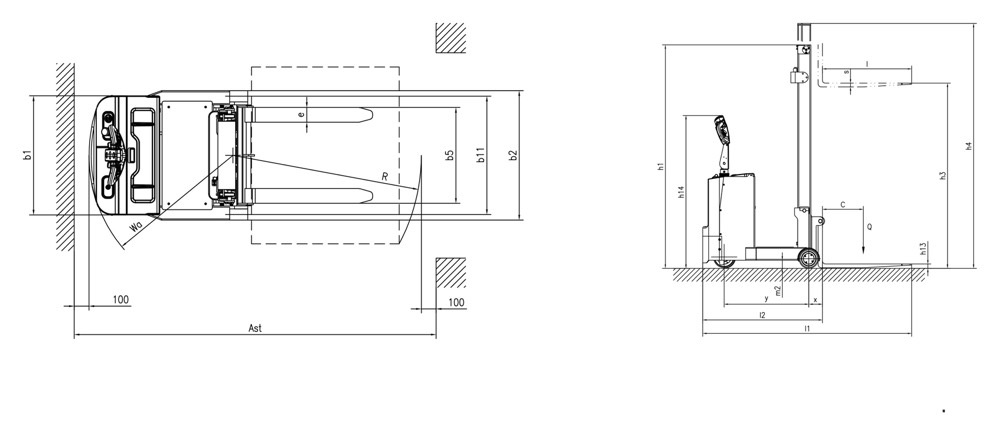

Dimensions diagram
Request a quote
Get a price for the Electric Counterbalanced Stacker (Pedestrian) E0530JZ / E0730JZ | 0.5–0.7 t
Tell us the quantity and where it ships. Our sales team replies with price, lead time and options.
