Name: Electric Counterbalanced Stacker (Pedestrian) E1016J – E1035J | 1.0 t
Brand: Accelift

Counterbalanced Stacker · Pedestrian

E1016J – E1035J

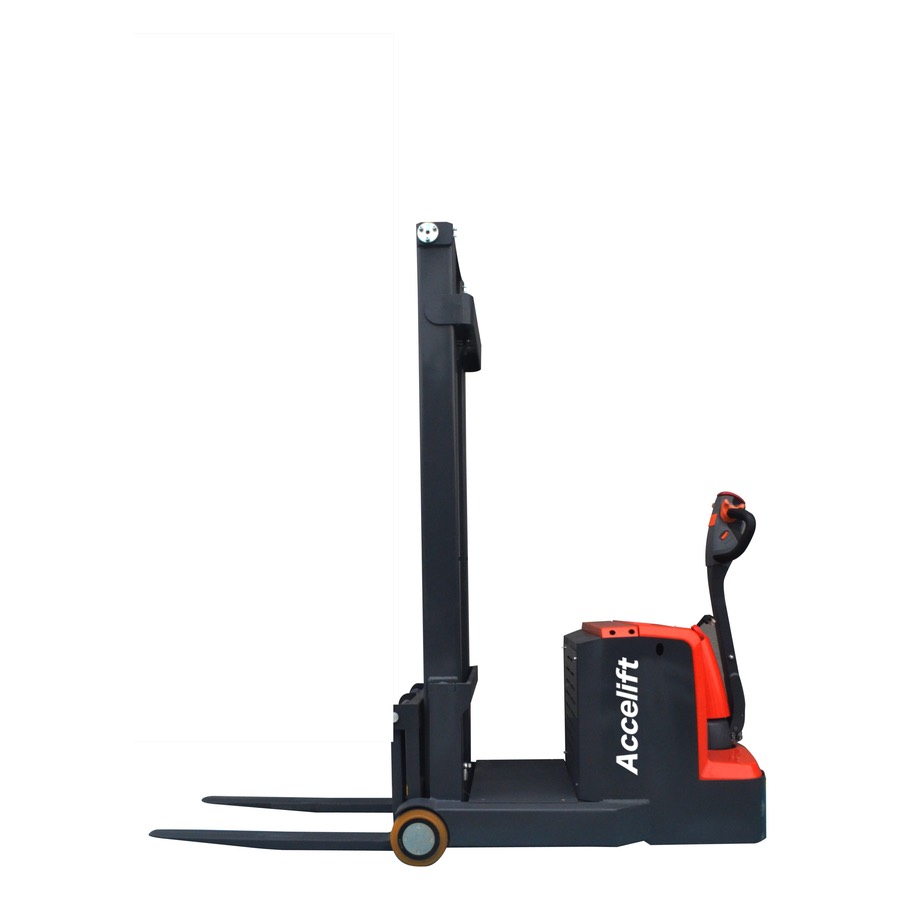

Electric Counterbalanced Stacker (Pedestrian)

A 1000 kg walk-behind counterbalanced stacker with no straddle legs, so it drives straight up to closed-bottom pallets, stillages and machines. Five mast heights from 1600 to 3500 mm on the same chassis — pick the lift, keep the footprint.

1000 kg

Rated capacity

1600–3500 mm

Lift height

1175 mm

Turning radius

2 × 12 / 100 V/Ah

Battery

Key features

01	A small, light body with a 1175 mm turning radius, so it still lifts 1000 kg in channels a bigger truck cannot use.
02	An emergency stop switch is standard — one press cuts power and stops the truck, protecting both the operator and the equipment.
03	A recessed tray above the body gives the operator somewhere to put labels, scanners and small tools, and tidies up the profile at the same time.
04	The wide-view mast keeps the load and the aisle in sight, which improves both cycle times and safety.
05	A large maintenance-free battery with a built-in charger — plug into any socket, no external charger to lose.
06	The front baffle comes off easily, so battery replacement and servicing take minutes rather than a workshop visit.

Main technical parameters

Parameter	Unit	E1016J	E1020J	E1025J	E1030J	E1035J
Characteristics
Power unit		Electric
Operation		Pedestrian
Rated capacity	Q (kg)	1000
Load centre	c (mm)	400
Axle centre to fork face	x (mm)	101
Wheel base	y (mm)	1000
Service weight with battery	kg	1365	1410	1420	1430	1440
Wheels and tyres
Wheels type		Polyurethane (PU)
Driving wheel size	Φ × w (mm)	Φ210 × 75
Bearing wheel size	Φ × w (mm)	Φ178 × 73
Wheels, number front/rear (x = driven)		1x / 2
Track width, drive end	b10 (mm)	0
Track width, load end	b11 (mm)	803
Dimensions
Height of mast, lowered	h1 (mm)	2072	1553	1803	2053	2303
Free lift	h2 (mm)	0
Lift height	h3 (mm)	1600	2000	2500	3000	3500
Height of mast, extended	h4 (mm)	2072	2533	3033	3533	4033
Tiller height, min. / max.	h14 (mm)	730 / 1165
Lowered fork height	h13 (mm)	40
Overall length	l1 (mm)	2086
Length to fork face	l2 (mm)	1236
Overall width	b1/b2 (mm)	878
Fork dimensions	s/e/l (mm)	35 / 100 / 820
Width across forks	b5 (mm)	220–640
Min. ground clearance, at wheelbase centre	m2 (mm)	60
Aisle width, pallet 1000 x 1200 across forks	Ast (mm)	2635
Aisle width, pallet 800 x 1200 along forks	Ast (mm)	2742
Turning radius	Wa (mm)	1175
Performance
Travel speed, laden / unladen	km/h	4.0 / 4.2
Lifting speed, with / without load	mm/s	90 / 130
Lowering speed, with / without load	mm/s	105 / 90
Gradeability, with / without load	%	5 / 10
Service brake		Electromagnetic
Motor and drive
Drive motor, 60 minute rating	kW	0.75
Lift motor rating at S3 15%	kW	2.2
Battery voltage / rated capacity	V/Ah	2 × 12 / 100
Battery weight (± 5%)	kg	2 × 27
Other
Type of drive control		DC speed control
Noise level at operator’s ear	dB(A)	≤ 75
Type of steering		Mechanical
