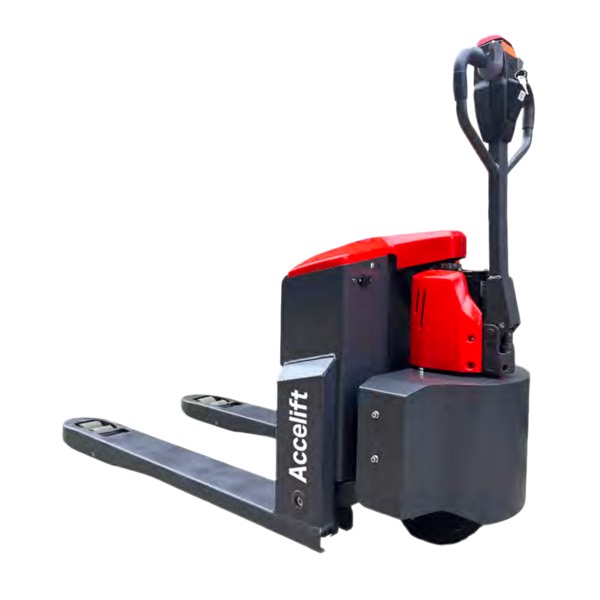

CBD30-Y

Electric Pallet Truck (Pedestrian)

A simple, smart and reliable 3-tonne pallet truck with a 48V drive system, a fully sealed reduction gearbox and a large-pattern rubber wheel built for harsh working conditions.

3000 kg

Rated capacity

200 mm

Lift height

1600 mm

Turning radius

≤70 dB(A)

Noise level

Key features

01	Simple, smart and reliable to operate, with a compact structure and small turning radius.
02	A new drive system structure and fully sealed reduction gearbox effectively protect the motor and brake from sediment.
03	A 48V system delivers strong power and superior performance, with an electromagnetic brake system for improved vehicle safety.
04	A large rubber-pattern driving wheel suits harsh working conditions such as construction sites.
05	A large-capacity, maintenance-free battery meets the needs of long-term work.
06	A built-in charger adds convenience for customers.

Main technical parameters

Parameter	Unit	CBD30-Y
Characteristics
Drive unit		Electric
Operator type		Pedestrian
Rated capacity	Q (kg)	3000
Load center distance	c (mm)	600
Axle centre to fork face	x (mm)	970
Wheelbase	y (mm)	1285
Service weight (incl. battery)	kg	270
Wheels / tyres
Tyre type, driving/loading wheels		Rubber/Nylon
Driving wheel size	mm	Φ350×100
Loading wheel size	mm	Φ80×70
Wheels, driving/caster/loading (x=drive)		1x, /4
Track width, rear, loading side	b11 (mm)	400/535
Dimensions
Lift height	h3 (mm)	200
Drawbar height, min/max	h14 (mm)	750/1155
Lowered height	h13 (mm)	85
Overall length	l1 (mm)	1685
Length to face of forks	l2 (mm)	535
Overall width	b1/b2 (mm)	580/685
Fork dimensions	s/e/l (mm)	55/160/1150
Distance between fork-arms	b5 (mm)	550/685
Ground clearance, center of wheelbase	m2 (mm)	30
Aisle width, pallet 1000×1200 crossways	Ast (mm)	1980
Aisle width, pallet 800×1200 lengthways	Ast (mm)	2030
Turning radius	Wa (mm)	1600
Performance
Travel speed, laden/unladen	km/h	4.6/4.8
Lifting speed, laden/unladen	mm/s	21/30
Lowering speed, laden/unladen	mm/s	23/21
Max. gradeability, laden/unladen	%	5/10
Service brake type		Electromagnetic
Drive
Drive motor rating, S2 60 min	kW	1.2
Lift motor rating at S3 15%	kW	0.8
Battery voltage/nominal capacity	V/Ah	48/32
Battery weight	kg	40.4
Other
Type of drive control		DC
Steering type		Mechanical
Sound pressure level at the driver’s ear	dB(A)	≤70
