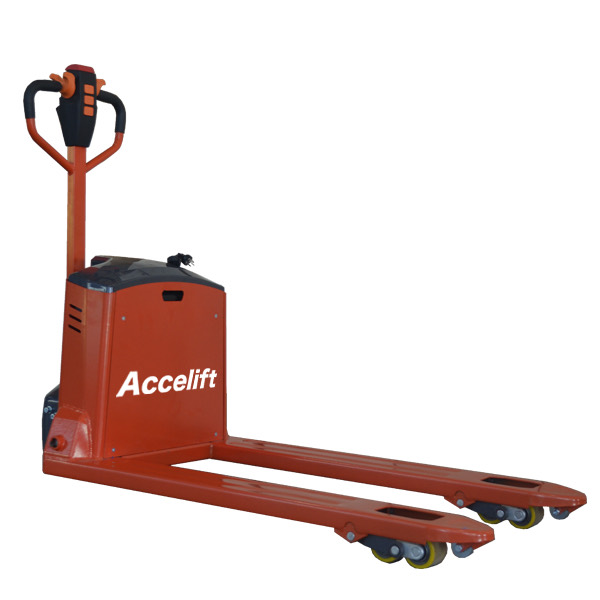

SL15S6 / SL20S6L

Electric Pallet Truck (Pedestrian)

A compact pallet truck with a small turning radius for narrow spaces, featuring a password-locked handle with CAN communication, a live battery-level display, and an efficient DC drive system.

1500/2000 kg

Rated capacity

200 mm

Lift height

1364 mm

Turning radius

≤70 dB(A)

Noise level

Key features

01	A small overall size and turning radius let it work in narrow spaces.
02	A sturdy metal cover protects the motor and wheels while reliably protecting the operator’s feet for improved safety.
03	A large-capacity, maintenance-free battery (optional lithium battery) with a built-in charger adds convenience for customers.
04	The integrated handle features a password lock, CAN communication, upright-walking operation, and an LCD display of remaining battery power.
05	An efficient DC drive unit delivers strong power, paired with an electromagnetic braking system for improved vehicle safety.

Main technical parameters

Parameter	Unit	SL15S6	SL20S6L
Characteristics
Power unit		Electric
Operation		Pedestrian
Rated traction weight	Q (kg)	1500	2000
Load centre	c (mm)	600
Axle centre to fork face	x (mm)	944
Wheel base	y (mm)	1210
Service weight with battery	kg	170	158
Wheels / tyres
Wheels type		PU
Driving wheel size	Φ×w (mm)	Φ210×75
Bearing wheel size	Φ×w (mm)	Φ80×60
Wheels, front/rear (x=driven)		1x/4
Track width	b11 (mm)	400/535
Dimensions
Lift	h3 (mm)	200
Overall height (with handle)	h14 (mm)	720/1140
Fork height, lowered	h13 (mm)	85
Overall length	l1 (mm)	1570
Length to fork face	l2 (mm)	420
Overall width	b1/b2 (mm)	580/685
Fork dimensions	s/e/l (mm)	50/150/1150
Width of forks	b5 (mm)	550/685
Min. ground clearance	m2 (mm)	35
Aisle width, pallet 1000×1200 across forks	Ast (mm)	1770
Aisle width, pallet 800×1200 along forks	Ast (mm)	1820
Min. turning radius	Wa (mm)	1364
Performance
Travel speed, laden/unladen	km/h	4.2/4.5
Lifting speed, with/without load	mm/s	31/39	30/38
Lowering speed, with/without load	mm/s	68/36	55/40
Maximum climbing ability, with/without load	%	6/15
Service brake		Electromagnetic
Drive
Drive motor, 60 minute rating	kW	0.75	1.0
Lift motor rating at S3 15%	kW	0.8
Battery voltage/rated capacity	V/Ah	12×2/65	48/20
Battery weight	kg	16.3×2	14
Other
Type of drive control		DC
Noise level at operator’s ear	dB(A)	≤70
Type of steering		Mechanical
